import matplotlib.pyplot as plt
import numpy as np

t = np.arange(0.0, 2.0, 0.01)#x轴上的点，0到2之间以0.01为间隔
s = np.sin(2*np.pi*t)#y轴为正弦
plt.plot(t, s)#画图

plt.xlabel('time (s)')#x轴标签
plt.ylabel('voltage (mV)')#y轴标签
plt.title('About as simple as it gets, folks')#图的标签
plt.grid(True)#产生网格
plt.savefig("test.png")#保存图像
plt.show()#显示图像

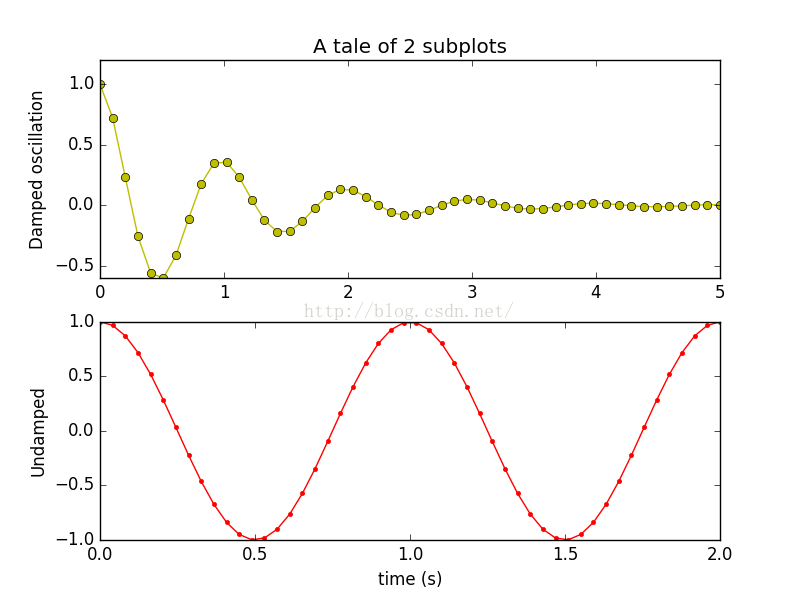

x1 = np.linspace(0.0, 5.0)#画图一
x2 = np.linspace(0.0, 2.0)#画图二
y1 = np.cos(2 * np.pi * x1) * np.exp(-x1)
y2 = np.cos(2 * np.pi * x2)

plt.subplot(2, 1, 1)#面板设置成2行1列，并取第一个（顺时针编号）
plt.plot(x1, y1, 'yo-')#画图，染色
plt.title('A tale of 2 subplots')
plt.ylabel('Damped oscillation')

plt.subplot(2, 1, 2)#面板设置成2行1列，并取第二个（顺时针编号）
plt.plot(x2, y2, 'r.-')#画图，染色
plt.xlabel('time (s)')
plt.ylabel('Undamped')

plt.show()

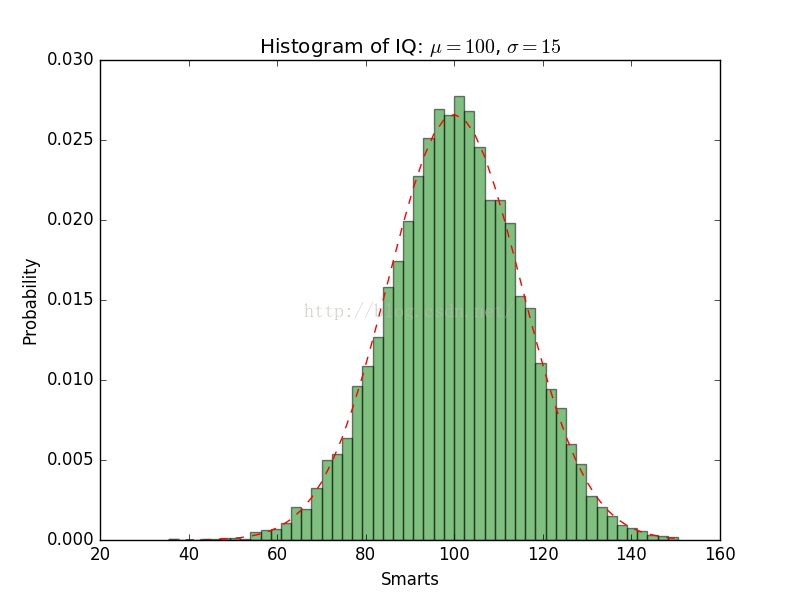

# -*- coding:utf-8 -*-
import numpy as np
import matplotlib.mlab as mlab
import matplotlib.pyplot as plt

mu = 100 # 正态分布的均值
sigma = 15 # 标准差
x = mu + sigma * np.random.randn(10000)#在均值周围产生符合正态分布的x值

num_bins = 50
n, bins, patches = plt.hist(x, num_bins, normed=1, facecolor='green', alpha=0.5)
#直方图函数，x为x轴的值，normed=1表示为概率密度，即和为一，绿色方块，色深参数0.5.返回n个概率，直方块左边线的x值，及各个方块对象
y = mlab.normpdf(bins, mu, sigma)#画一条逼近的曲线
plt.plot(bins, y, 'r--')
plt.xlabel('Smarts')
plt.ylabel('Probability')
plt.title(r'Histogram of IQ: $\mu=100$, $\sigma=15$')#中文标题 u'xxx'

plt.subplots_adjust(left=0.15)#左边距
plt.show()

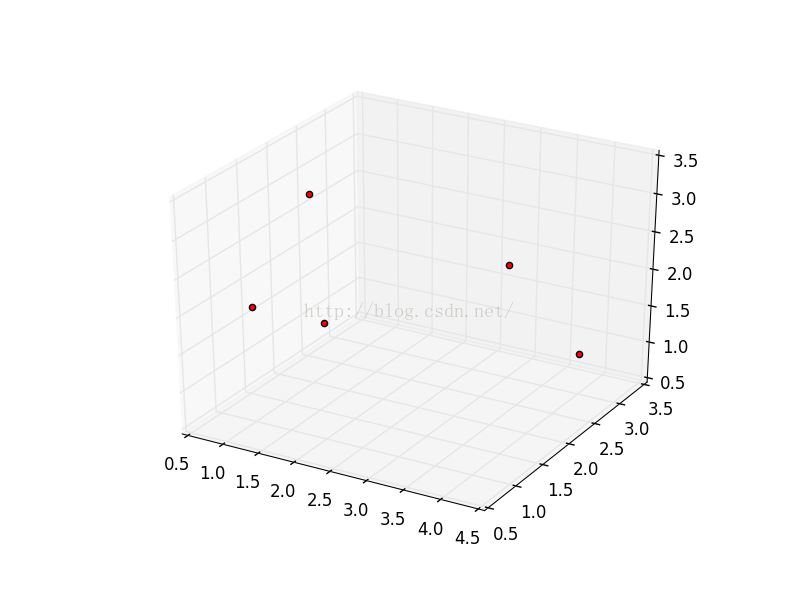

#!/usr/bin/env python
# encoding: utf-8

import matplotlib.pyplot as plt
import numpy as np
from mpl_toolkits.mplot3d import Axes3D

x_list = [[3,3,2],[4,3,1],[1,2,3],[1,1,2],[2,1,2]]
fig = plt.figure()
ax = fig.gca(projection='3d')
for x in x_list:
  ax.scatter(x[0],x[1],x[2],c='r')
plt.show()

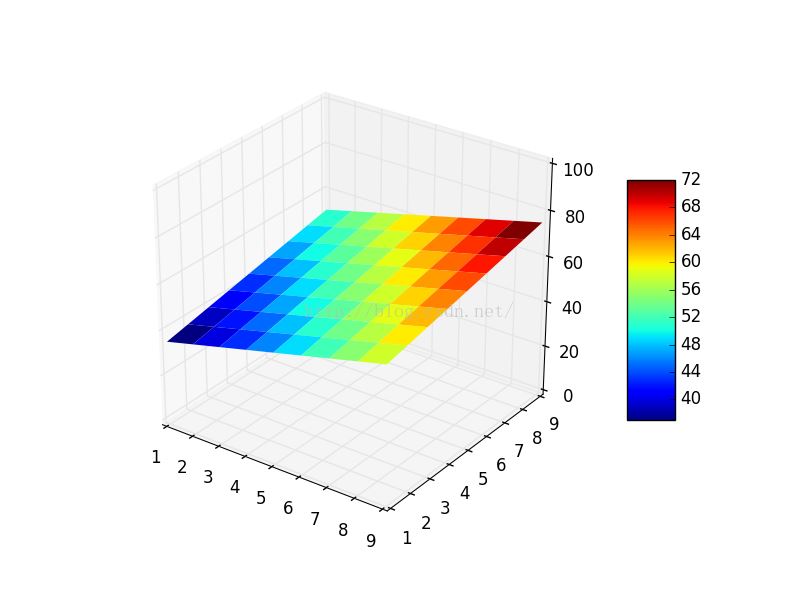

from mpl_toolkits.mplot3d.axes3d import Axes3D
from matplotlib import cm
import matplotlib.pyplot as plt
import numpy as np

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1, projection='3d')
X=np.arange(1,10,1)
Y=np.arange(1,10,1)
X, Y = np.meshgrid(X, Y)
Z = 3*X+2*Y+30
surf = ax.plot_surface(X, Y, Z, rstride=1, cstride=1,cmap=cm.jet,linewidth=0, antialiased=True)
ax.set_zlim3d(0,100)
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()

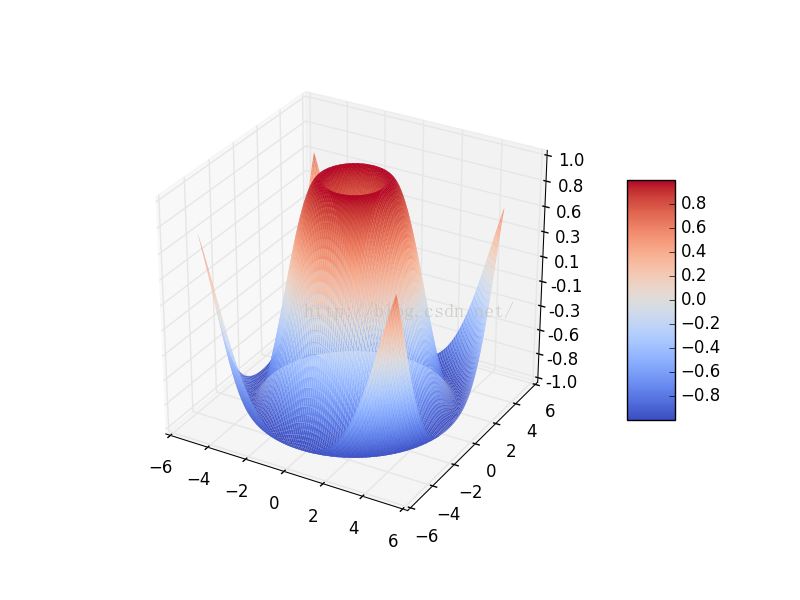

from mpl_toolkits.mplot3d import Axes3D
from matplotlib import cm
from matplotlib.ticker import LinearLocator, FormatStrFormatter
import matplotlib.pyplot as plt
import numpy as np

fig = plt.figure()
ax = fig.gca(projection='3d')
X = np.arange(-5, 5, 0.1)
Y = np.arange(-5, 5, 0.1)
X, Y = np.meshgrid(X, Y)
R = np.sqrt(X**2 + Y**2)
Z = np.sin(R)
surf = ax.plot_surface(X, Y, Z, rstride=1, cstride=1, cmap=cm.coolwarm, linewidth=0, antialiased=False)
#画表面,x,y,z坐标， 横向步长，纵向步长，颜色，线宽，是否渐变
ax.set_zlim(-1.01, 1.01)#坐标系的下边界和上边界

ax.zaxis.set_major_locator(LinearLocator(10))#设置Z轴标度
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))#Z轴精度
fig.colorbar(surf, shrink=0.5, aspect=5)#shrink颜色条伸缩比例（0-1），aspect颜色条宽度（反比例，数值越大宽度越窄）

plt.show()

# -*- coding: utf-8 -*-
import matplotlib.pyplot as plt

labels = 'Frogs', 'Hogs', 'Dogs', 'Logs'#设置标签
sizes = [15, 30, 45, 10]#占比，和为100
colors = ['yellowgreen', 'gold', 'lightskyblue', 'lightcoral']#颜色
explode = (0, 0.1, 0, 0) #展开第二个扇形，即Hogs，间距为0.1

plt.pie(sizes, explode=explode, labels=labels, colors=colors,autopct='%1.1f%%', shadow=True, startangle=90)#startangle控制饼状图的旋转方向
plt.axis('equal')#保证饼状图是正圆，否则会有一点角度偏斜

fig = plt.figure()
ax = fig.gca()

import numpy as np

ax.pie(np.random.random(4), explode=explode, labels=labels, colors=colors,autopct='%1.1f%%', shadow=True, startangle=90, radius=0.25, center=(0, 0), frame=True)
ax.pie(np.random.random(4), explode=explode, labels=labels, colors=colors, autopct='%1.1f%%', shadow=True, startangle=90, radius=0.25, center=(1, 1), frame=True)
ax.pie(np.random.random(4), explode=explode, labels=labels, colors=colors, autopct='%1.1f%%', shadow=True, startangle=90, radius=0.25, center=(0, 1), frame=True)
ax.pie(np.random.random(4), explode=explode, labels=labels, colors=colors, autopct='%1.1f%%', shadow=True, startangle=90,radius=0.25, center=(1, 0), frame=True)

ax.set_xticks([0, 1])#设置位置
ax.set_yticks([0, 1])
ax.set_xticklabels(["Sunny", "Cloudy"])#设置标签
ax.set_yticklabels(["Dry", "Rainy"])
ax.set_xlim((-0.5, 1.5))
ax.set_ylim((-0.5, 1.5))

ax.set_aspect('equal')
plt.show()
