对Python 网络设备巡检脚本的实例讲解
1、基本信息
我公司之前采用的是人工巡检，但奈何有大量网络设备，往往巡检需要花掉一上午（还是手速快的话）,浪费时间浪费生命。
这段时间正好在学 Python ，于是乎想(其)要(实)解(就)放(是)双(懒)手。
好了，脚本很长又比较挫，有耐心就看看吧。
需要巡检的设备如下：
|
设备清单 |
设备型号 |
|
防火墙 |
华为 E8000E |
|
H3C M9006 |
|
|
飞塔 FG3950B |
|
|
交换机 |
华为 S9306 |
|
H3C S12508 |
|
|
Cisco N7K |
|
|
路由器 |
华为 NE40E |
|
负载 |
Radware RD5412 |
|
Radware RD6420 |
2、采集数据并写入文件
# 相关设备巡检命令就不介绍了。。。
01DMZ-E8000E.py # 华为 E8000E 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b %d')
today=datetime.date.today().strftime('%Y%m%d')
tt=tdy.split()
if int(tt[-1]) < 10:
tdy=tdy.replace('0',' ')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
password=str(sys.argv[3])
child=pexpect.spawn('ssh 用户名@%s'%ip)
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/01DMZ-E8000E.txt','w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect('(?i)E8000E-1>')
child.sendline("su")
child.expect("(?i)assword:")
child.sendline("%s"%password)
child.expect("(?i)E8000E-1>")
child.sendline("dis device | ex Normal")
child.expect("(?i)E8000E-1>")
child.sendline("dis version")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis temperature")
child.expect("(?i)E8000E-1>")
child.sendline("dir")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis memory-usage")
child.expect("(?i)E8000E-1>")
child.sendline("dis hrp state")
child.expect("(?i)E8000E-1>")
child.sendline("dis firewall session table")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis ip routing-table protocol static")
child.expect("(?i)E8000E-1>")
child.sendline("dis int brief | in up")
child.expect("(?i)E8000E-1>")
child.sendline("dis acl 3004")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis acl 3005")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis acl 3006")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis acl 3007")
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send("a")
child.expect("(?i)E8000E-1>")
child.sendline("dis alarm all")
child.expect("(?i)E8000E-1>")
child.sendline("dis logbuffer | in %s"%tdy)
for i in range(20):
index = child.expect(["(?i)---- More ----","(?i)E8000E-1>"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("q")
break
02_03-M9006.py # H3C M9006 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b')
today=datetime.date.today().strftime('%Y%m%d')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
password=str(sys.argv[3])
if ip == '判断ip，手动打码':
txt='03SM-M9006.txt'
else:
txt='02DMZ-M9006.txt'
child=pexpect.spawn('ssh 用户名@%s'%ip)
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect('(?i)M9006>')
child.sendline("su")
child.expect("(?i)assword:")
child.sendline("%s"%password)
child.expect("M9006>")
child.sendline("dis device | ex Normal")
child.expect("M9006>")
child.sendline("dis version | in uptime")
child.expect("M9006>")
child.sendline("dis environment")
for i in range(10):
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dir | in total")
break
child.expect("M9006>")
child.sendline("dis memory")
for i in range(10):
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis irf link")
break
child.expect("M9006>")
child.sendline("dis redundancy group")
child.expect("---- More ----")
child.send('a')
child.expect("M9006>")
child.sendline("dis session statistics summary")
child.expect("M9006>")
child.sendline("dis ip routing-table protocol static")
child.expect("M9006>")
child.sendline("dis int brief | in UP")
for i in range(10):
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
else:
break
if ip == '判断ip':
child.sendline("dis acl 3001")
for i in range(10):
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis acl 3002")
child.expect("M9006>")
child.sendline("dis alarm")
break
else:
child.sendline("dis object-policy ip")
for i in range(20):
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis alarm")
break
child.expect("M9006>")
child.sendline("dis logbuffer reverse | in %s"%tdy)
index = child.expect(["(?i)---- More ----","M9006>"]) 这边其实只要一个 for 循环就可以了，不高兴改了
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send("a")
index = child.expect(["(?i)---- More ----","M9006>"])
if ( index == 0 ):
child.send("a")
else:
child.sendline('')
child.expect("M9006>")
child.sendline("q")
04IN-FG3950B.py # 飞塔 FG3950B 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
today=datetime.date.today().strftime('%Y%m%d')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
child=pexpect.spawn('ssh 用户@%s'%ip)
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/04IN-FG3950B.txt','w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect('W-IN-FG3950-1 #')
child.sendline("get sys performance status")
for i in range(5):
index = child.expect(["(?i)--More--","W-IN-FG3950-1 #"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("diagnose sys session stat")
break
child.expect('W-IN-FG3950-1 #')
child.sendline("get route info routing-table static")
child.expect('--More--')
child.send(' ')
child.expect('W-IN-FG3950-1 #')
child.sendline("exit")
05_06DMZ-S9306.py # 华为 S9306 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b %d')
today=datetime.date.today().strftime('%Y%m%d')
tt=tdy.split()
if int(tt[-1]) < 10:
tdy=tdy.replace('0',' ')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
password=str(sys.argv[3])
child=pexpect.spawn('ssh 用户名@%s'%ip)
if ip == '判断ip，不止一个该类型设备':
txt='05DMZ-S9306-1.txt'
else:
txt='06DMZ-S9306-2.txt'
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect('<JSYD-WX-12580-DMZ-9306')
child.sendline("su")
child.expect("(?i)assword:")
child.sendline("%s"%password)
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis device")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis version | in Quidway")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dir")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis cpu-usage")
index = child.expect(["(?i)---- More ----","<JSYD-WX-12580-DMZ-9306(?i)"])
if ( index == 0 ):
child.send("a")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis memory-usage")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis int brief | in up")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis vrrp brief")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis mac-address total-number")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis arp statistics all")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis ip routing-table protocol static")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis temperature all")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis alarm all")
child.expect("<JSYD-WX-12580-DMZ-9306")
child.sendline("dis logbuffer | in %s"%tdy)
for i in range(50):
index = child.expect(["(?i)---- More ----","<JSYD-WX-12580-DMZ-9306(?i)"])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("q")
break
07_08-S12508.py # H3C S12508 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b %d')
today=datetime.date.today().strftime('%Y%m%d')
tt=tdy.split()
if int(tt[-1]) < 10:
tdy=tdy.replace('0',' ')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
password=str(sys.argv[3])
child=pexpect.spawn('ssh 用户名@%s'%ip)
IP=['ip1','ip2']
if ip == IP[0]:
txt='07DMZ-S12508.txt'
name='<W-DMZ-G1G2-12508>'
else:
txt='08IN-S12508.txt'
name='<W-IN-G7G8-12508>'
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect("%s"%name)
child.sendline("su")
child.expect("(?i)assword:")
child.sendline("%s"%password)
child.expect("%s"%name)
child.sendline("dis device | ex Normal")
child.expect("%s"%name)
child.sendline("dis version | in H3C S12508")
child.expect("%s"%name)
child.sendline("dir")
child.expect("%s"%name)
child.sendline("dis memory")
child.expect("%s"%name)
child.sendline("dis irf link")
for i in range(10):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis int brief | in UP")
break
for i in range(20):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis mac-address count")
break
child.expect("%s"%name)
child.sendline("dis arp all count")
if ip == "手动打码":
child.expect("%s"%name)
child.sendline("dis ip routing-table vpn-instance Dmz protocol static")
for i in range(20):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis ip routing-table vpn-instance Inside protocol static")
for i in range(20):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline(" ")
break
break
child.expect("%s"%name)
child.sendline("dis environment")
for i in range(50):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis alarm")
break
child.expect("%s"%name)
child.sendline("dis logbuffer | in %s"%tdy)
for i in range(50):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("q")
sys.exit()
09_10SM-N7K.py # Cisco N7K 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
today=datetime.date.today().strftime('%Y%m%d')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
child=pexpect.spawn('telnet %s'%ip)
if ip == '是个ip':
txt='09SM-N7K-1.txt'
name='W-SM-N7K-1#'
else:
txt='10SM-N7K-2.txt'
name='W-SM-N7K-2#'
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('login:')
child.sendline("发送用户名")
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect("%s"%name)
child.sendline("sh hardware | in ok")
child.expect("%s"%name)
child.sendline("sh version | in uptime")
child.expect("%s"%name)
child.sendline("dir")
child.expect("%s"%name)
child.sendline("sh int brief | in up")
for i in range(10):
index = child.expect(["(?i)More--","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("sh hsrp brief")
break
child.expect("%s"%name)
child.sendline("sh mac address-table count")
child.expect("%s"%name)
child.sendline("sh ip arp | in number")
child.expect("%s"%name)
child.sendline("sh ip route static summary")
child.expect("%s"%name)
child.sendline("sh environment temperature")
for i in range(10):
index = child.expect(["(?i)More--","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("sh vpc")
break
for i in range(10):
index = child.expect(["(?i)More--","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("sh logging last 30")
break
for i in range(10):
index = child.expect(["(?i)More--","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("exit")
sys.exit()
11_12DMZ-NE40E.py # 华为 NE40E 交互脚本
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b %d')
today=datetime.date.today().strftime('%Y%m%d')
tt=tdy.split()
if int(tt[-1]) < 10:
tdy=tdy.replace('0',' ')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
child=pexpect.spawn('ssh 用户名@%s'%ip)
IP=['ip1','ip2']
if ip == IP[0]:
txt='11DMZ-NE40E-1.txt'
name='<W-SM-E11-NE40E-01>'
elif ip == IP[1]:
txt='12DMZ-NE40E-2.txt'
name='<W-SM-E12-NE40E-02>'
else:
print "IP Input Error!"
sys.exit()
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
child.expect("(?i)N]:")
child.sendline("n")
child.expect("%s"%name)
child.sendline("dis device | ex Normal")
child.expect("%s"%name)
child.sendline("dis version | in NE40E-X8 uptime")
child.expect("%s"%name)
child.sendline("dir")
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis memory-usage")
else:
child.sendline("dis memory-usage")
child.expect("%s"%name)
child.sendline("dis int brief | in up")
child.expect("%s"%name)
child.sendline("dis ip routing-table protocol static")
child.expect("%s"%name)
child.sendline("dis temperature")
for i in range(40):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("dis alarm all")
break
child.expect("%s"%name)
child.sendline("dis logbuffer | in %s"%tdy)
for i in range(30):
index = child.expect(["(?i)---- More ----","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("q")
break
13_16-RD5412_6420.py # Radware RD5412 交互脚本，只要掌握一个，其他都是套路
#!/usr/bin/env python
import pexpect
import sys
import datetime
d1=datetime.datetime.now()
d3=d1+datetime.timedelta(days=-1)
tdy=d3.strftime('%b %d')
today=datetime.date.today().strftime('%Y%m%d')
tt=tdy.split()
if int(tt[-1]) < 10:
tdy=tdy.replace('0',' ')
ip=str(sys.argv[1])
passwd=str(sys.argv[2])
child=pexpect.spawn('ssh 还是用户名@%s'%ip)
IP=['ip1','ip2','ip3','ip4']
if ip == IP[0]:
txt='13DMZ-RD5412-1.txt'
elif ip == IP[1]:
txt='14DMZ-RD5412-2.txt'
elif ip == IP[2]:
txt='15SM-RD6420-1.txt'
elif ip == IP[3]:
txt='16SM-RD6420-2.txt'
else:
print "IP Input Error!"
sys.exit()
name='Standalone ADC(?i)'
fout=file('/usr/sh/shell/linux/xunjian/'+today+'/'+txt,'w')
child.logfile = fout
child.expect('(?i)ssword:')
child.sendline("%s"%passwd)
if ip == IP[3]:
child.expect("(?i)y]:")
child.sendline("y")
child.expect("%s"%name)
child.sendline("/i/sys/general")
child.expect("%s"%name)
child.sendline("/i/sys/ps")
child.expect("%s"%name)
child.sendline("/i/sys/fan")
child.expect("%s"%name)
child.sendline("/i/link")
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("/i/sys/capacity slb")
else:
child.sendline("/i/sys/capacity slb")
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("/stats/mp/cpu")
else:
child.sendline("/stats/mp/cpu")
else:
child.sendline("/stats/mp/cpu")
child.expect("%s"%name)
child.sendline("/stats/mp/mem")
child.expect("%s"%name)
child.sendline("/i/sys/temp")
child.expect("%s"%name)
child.sendline("/i/l3/vrrp")
child.expect("%s"%name)
child.sendline("/i/sys/log")
for i in range(50):
index = child.expect(["Press q to quit, any other key to continue","%s"%name])
if ( index == 0 ):
child.send(" ")
else:
child.sendline("exit")
break
#index = child.expect(["(?i)n]:","%s"%name])
#if ( index == 0 ):
if ip == IP[3]:
child.expect("(?i)n]:")
child.sendline("y")
#else:
# pass
child.expect("(?i)n]:")
child.sendline("n")
3、编写邮件脚本
mail.py
#!/usr/bin/python
# -*- coding: utf-8 -*-
from email.header import Header
import smtplib
import email.MIMEMultipart# import MIMEMultipart
import email.MIMEText# import MIMEText
import email.MIMEBase# import MIMEBase
import os.path
import sys
import mimetypes
import email.MIMEImage# import MIMEImage
import datetime
tday=datetime.date.today().strftime('%Y/%m/%d')
#命令 mail.py <1:发送方（回复地址）10000@qq.com> <2:发送地址，多个以;隔开> <3:发送文件>
From = "%s<*@139.com>" % Header("XXX","utf-8")
ReplyTo=sys.argv[1]
To = sys.argv[2]
file_name = sys.argv[3]#附件名
file_name1 = sys.argv[4]
server = smtplib.SMTP("smtp.139.com",25)
server.login("user@139.com","password") #仅smtp服务器需要验证时
# 构造MIMEMultipart对象做为根容器
main_msg = email.MIMEMultipart.MIMEMultipart()
# 构造MIMEText对象做为邮件显示内容并附加到根容器
text_msg = email.MIMEText.MIMEText("message内容正文",_charset="utf-8")
main_msg.attach(text_msg)
# 构造MIMEBase对象做为文件附件内容并附加到根容器
ctype,encoding = mimetypes.guess_type(file_name)
if ctype is None or encoding is not None:
ctype='application/octet-stream'
maintype,subtype = ctype.split('/',1)
file_msg=email.MIMEImage.MIMEImage(open(file_name,'rb').read(),subtype)
file_msg1=email.MIMEImage.MIMEImage(open(file_name1,'rb').read(),subtype)
## 设置附件头
basename = os.path.basename(file_name)
file_msg.add_header('Content-Disposition','attachment', filename = basename)#修改邮件头
main_msg.attach(file_msg)
basename1 = os.path.basename(file_name1)
file_msg1.add_header('Content-Disposition','attachment', filename = basename1)#修改邮件头
main_msg.attach(file_msg1)
# 设置根容器属性
main_msg['From'] = From
main_msg['Reply-to'] = ReplyTo
#main_msg['To'] = To
main_msg['Subject'] = u"[每日巡检] %s邮件标题" %tday
main_msg['Date'] = email.Utils.formatdate()
#main_msg['Bcc'] = To
# 得到格式化后的完整文本
fullText = main_msg.as_string( )
# 用smtp发送邮件
try:
server.sendmail(From, To.split(';'), fullText)
finally:
server.quit()
mail_excel_error.py # 报错通知邮件：excel不存在
#!/usr/bin/env python
# -*- coding:utf-8 -*-
#import sys
#reload(sys)
import smtplib,string,datetime,xlrd
tday=datetime.date.today().strftime('%Y/%m/%d')
HOST="smtp.139.com"
SUBJECT="[每日巡检] %s哈哈哈"%tday
TO="*.com"
FROM="*@139.com"
text="excel no cunzai"
BODY=string.join((
"FROM: %s" % FROM,
"To: %s" % TO,
"Subject: %s" % SUBJECT,
"",
text
), "\r\n")
server=smtplib.SMTP()
server.connect(HOST,"25")
server.starttls()
server.login(FROM,"密码")
server.sendmail(FROM,[TO],BODY)
server.quit()
mail_zip_error.py # 邮件告警：巡检历史记录压缩文档不存在
#!/usr/bin/env python
# -*- coding:utf-8 -*-
#import sys
#reload(sys)
import smtplib,string,datetime,xlrd
tday=datetime.date.today().strftime('%Y/%m/%d')
HOST="smtp.139.com"
SUBJECT="[每日巡检] %s嘻嘻嘻" %tday
TO="asdas.com"
FROM="***@139.com"
text="zip no cunzai"
BODY=string.join((
"FROM: %s" % FROM,
"To: %s" % TO,
"Subject: %s" % SUBJECT,
"",
text
), "\r\n")
server=smtplib.SMTP()
server.connect(HOST,"25")
server.starttls()
server.login(FROM,"PASSWORD")
server.sendmail(FROM,[TO],BODY)
server.quit()
4、数据处理

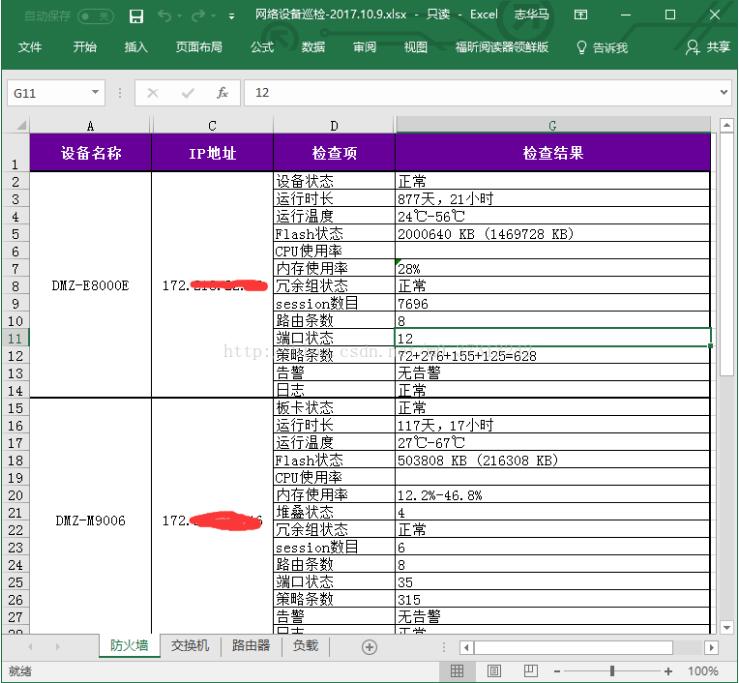

wangluo_xunjian.py # 根据巡检内容制表
#!/usr/bin/env python
# -*- coding:utf-8 -*-
#import sys
#reload(sys)
import xlsxwriter,os,datetime
def cmd(sname,fname): # 该函数判断巡检命令行所在输出文件位置
i=1
f=open(fname)
line_hang_list=[]
for line in f:
if line.find(sname) == 0:
line_hang_list.append(i)
i+=1
f.close
return line_hang_list
def cmd1(sname,fname): # 同上
i=1
f=open(fname)
line_hang_list=[]
for line in f:
if sname in line:
line_hang_list.append(i)
i+=1
f.close
return line_hang_list
tday=datetime.date.today().strftime('%Y.%m.%d')
today=datetime.date.today().strftime('%Y%m%d')
workbook=xlsxwriter.Workbook(u"/usr/sh/shell/linux/xunjian/%s/网络设备巡检-%s.xlsx"%(today,tday),{'strings_to_numbers':True})
file_01='/usr/sh/shell/linux/xunjian/'+str(today)+'/01DMZ-E8000E.txt'
file_02_1='/usr/sh/shell/linux/xunjian/'+str(today)+'/03SM-M9006.txt'
file_02_2='/usr/sh/shell/linux/xunjian/'+str(today)+'/02DMZ-M9006.txt'
file_03='/usr/sh/shell/linux/xunjian/'+str(today)+'/04IN-FG3950B.txt'
# 新建 sheet
worksheet0=workbook.add_worksheet(u"防火墙")
worksheet1=workbook.add_worksheet(u"交换机")
worksheet2=workbook.add_worksheet(u"路由器")
worksheet3=workbook.add_worksheet(u"负载")
# 设置单元格格式(居中，颜色，边框，合并，列宽，列隐藏等)
colour='#660099'
format_title=workbook.add_format()
format_title.set_border(1)
format_title.set_bottom(2)
format_title.set_bold(1)
format_title.set_font_color('white')
format_title.set_bg_color(colour)
format_title.set_align('center')
format_title.set_valign('vcenter')
format_nr=workbook.add_format()
format_nr.set_border(1)
format_nr.set_bottom(2)
format_nr.set_align('center')
format_nr.set_valign('vcenter')
format_nrr=workbook.add_format()
format_nrr.set_border(1)
format_nrr.set_valign('vcenter')
format_nrr.set_text_wrap()
format_bottom=workbook.add_format()
format_bottom.set_border(1)
format_bottom.set_bottom(2)
format_bottom.set_valign('vcenter')
format_bottom.set_text_wrap()
format_rt=workbook.add_format()
format_rt.set_border(1)
format_rt.set_right(2)
format_rt.set_valign('left')
format_rt.set_text_wrap()
format_right=workbook.add_format()
format_right.set_border(1)
format_right.set_right(2)
format_right.set_bottom(2)
format_right.set_valign('vcenter')
format_right.set_text_wrap()
format_red=workbook.add_format()
format_red.set_font_color('red')
format_red.set_border(1)
format_red.set_right(2)
format_red.set_valign('vcenter')
format_rd=workbook.add_format()
format_rd.set_font_color('red')
format_rd.set_border(1)
format_rd.set_right(2)
format_rd.set_bottom(2)
format_rd.set_valign('vcenter')
# 填写相关固定单元格内容
firewall_title=[u'设备名称',u'设备类型',u'IP地址',u'检查项',u'命令',u'说明',u'检查结果']
firewall_jc=[u'设备状态',u'运行时长',u'运行温度',u'Flash状态',u'CPU使用率',u'内存使用率',u'冗余组状态',u'session数目',u'路由条数',u'端口状态',u'策略条数',u'告警',u'日志',u'板卡状态',u'运行时长',u'运行温度',u'Flash状态',u'CPU使用率',u'内存使用率',u'堆叠状态',u'冗余组状态',u'session数目',u'路由条数',u'端口状态',u'策略条数',u'告警',u'日志',u'板卡状态',u'运行时长',u'运行温度',u'Flash状态',u'CPU使用率',u'内存使用率',u'堆叠状态',u'冗余组状态',u'session数目',u'路由条数',u'端口状态',u'策略条数',u'告警',u'日志',u'运行时长',u'CPU使用率 (BOMC看)',u'内存使用率',u'网络流量',u'session数目',u'新建session速率',u'接口状态',u'冗余组状态',u'路由条数',u'日志',u'策略条数',u'告警']
firewall_cmd=['dis device | ex Normal','dis version','dis temperature','dir',u'在BOMC看','dis memory-usage','dis hrp state','dis firewall session table','dis ip routing-table protocol static','dis int brief (dis logbuffer | in DOWN)','dis acl 3004 (3004-3007)','dis alarm all','dis logbuffer | in [data]','dis device | ex Normal','dis version | in uptime','dis environment','dir | in total',u'在BOMC看','dis memory','dis irf link','dis redundancy group','dis session statistics summary','dis ip routing-table protocol static','dis int brief (dis logbuffer | in DOWN)','dis object-policy ip','dis alarm','dis logbuffer | in [month]','dis device | ex Normal','dis version | in uptime','dis environment','dir | in total',u'在BOMC看','dis memory','dis irf link','dis redundancy group','dis session statistics summary','dis ip routing-table protocol static','dis int brief (dis logbuffer | in DOWN)','dis acl all','dis alarm','dis logbuffer | in [month]','get sys performance status','','','','diagnose sys session stat','',u'网页登录查看',u'网页登录查看','get route info routing table static',u'网页登录查看',u'网页登录查看',u'网页登录查看']
firewall_sm=[u'填写Status是Abnormal的项',u'填写已运行天数,小时数',u'填写温度范围',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写本机和邻居的角色，看有无发生主备切换',u'填写链接总数',u'填写路由数目',u'填写状态为UP的端口数目',u'填写策略数目',u'填写告警内容，无告警则填写“无告警”',u'填写异常日志，无异常则填写“正常”',u'填写State为Absent，且Type不为NONE的项',u'填写已运行天数，小时数',u'填写温度范围',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率范围',u'填写Status不是UP的项',u'填写Status，看有无发生主备切换',u'填写链接总数',u'填写路由数目',u'填写状态为UP的端口数目',u'填写策略数目(所有rule的总数)',u'填写告警内容，无告警则填写“无告警”',u'填写异常日志，无异常则填写“正常”',u'填写State为Absent，且Type不为NONE的项',u'填写已运行天数，小时数',u'填写温度范围',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率范围',u'填写Status不是UP的项',u'填写Status，看有无发生主备切换',u'填写链接总数',u'填写路由数目',u'填写状态为UP的端口数目',u'填写策略数目(acl 3001+3002的总条目数)',u'填写告警内容，无告警则填写“无告警”',u'填写异常日志，无异常则填写“正常”',u'填写已运行天数，小时数',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写30分钟内平均带宽占用（kbps）',u'填写session_count值',u'填写setup_rate值',u'填写启用状态的接口数目',u'填写冗余状态',u'填写路由数目',u'填写异常日志，无异常则填写“正常”',u'填写策略数目',u'填写告警内容，无告警则填写“无告警”']
switch_title=[u'设备名称',u'设备类型',u'IP地址',u'检查项',u'命令',u'说明',u'检查结果']
switch_jc=[u'设备状态',u'运行时长',u'Flash状态',u'CPU使用率',u'内存使用率',u'接口状态',u'VRRP状态',u'MAC地址条目数',u'ARP条目数',u'路由条目数',u'运行温度',u'告警',u'日志']
switch_jc1=[u'设备状态',u'运行时长',u'Flash状态',u'CPU使用率',u'内存使用率',u'堆叠状态',u'接口状态',u'MAC地址条目数',u'ARP条目数',u'路由条目数',u'运行温度',u'告警',u'日志']
switch_jc2=[u'设备状态',u'运行时长',u'Flash状态',u'CPU使用率',u'内存使用率',u'堆叠状态',u'接口状态',u'MAC地址条目数',u'ARP条目数',u'运行温度',u'告警',u'日志']
switch_cmd=['dis device','dis version | in Quidway','dir','dis cpu-usage','dis memory-usage','dis int brief (dis logbuffer | in IF_STATE)','dis vrrp brief','dis mac-address total-number','dis arp statistics all','dis ip routing-table protocol static','dis temperature all','dis alarm all','dis logbuffer | in [date]']
switch_cmmd=['dis device | ex Normal','dis version | in H3C S12508','dir',u'在BOMC看','dis memory','dis irf link','dis int brief (dis logbuffer reverse | in UPDOWN)','dis mac-address count','dis arp all count','dis ip routing-table vpn-instance Dmz/Inside protocol static','dis environment','dis alarm','dis logbuffer reverse | in [date]']
switch_cmd1=['dis device | ex Normal','dis version | in H3C S12508','dir',u'在BOMC看','dis memory','dis int brief (dis logbuffer reverse | in UPDOWN)','dis vrrp','dis mac-address count','dis arp all count','dis ip routing-table protocol static','dis environment','dis alarm','dis logbuffer reverse | in [date]']
switch_cmd2=['dis device | ex Normal','dis version | in H3C S12508','dir',u'在BOMC看','dis memory','dis irf link','dis int brief (dis logbuffer reverse | in UPDOWN)','dis mac-address count','dis arp all count','dis environment','dis alarm','dis logbuffer reverse | in [date]']
switch_sm=[u'查看电源、风扇以及板卡状态，填写异常项',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率',u'填写内存使用率',u'填写状态为UP的端口数目',u'查看VRRP主备状态',u'填写总的mac-address条目数',u'填写动态和静态ARP条目数',u'填写路由数目',u'填写温度范围',u'填写告警内容，无告警则填写“无告警”',u'填写异常日志，无异常则填写“正常”']
switch_ssm=[u'填写状态异常的项',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写Status不是UP的项',u'填写状态为UP的端口数目',u'填写总的mac-address条目数',u'填写总的ARP条目数',u'填写路由数目(Dmz和Inside路由总和)',u'填写温度范围',u'填写设备告警，无则填写“无告警”',u'填写异常日志，无异常则填写“正常”']
switch_sm1=[u'填写状态异常的项',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写状态为UP的端口数目',u'查看VRRP主备状态',u'填写总的mac-address条目数',u'填写总的ARP条目数',u'填写路由数目',u'填写温度范围',u'填写设备告警，无则填写“无告警”',u'填写异常日志，无异常则填写“正>常”']
switch_sm2=[u'填写状态异常的项',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写Status不是UP的项',u'填写状态为UP的端口数目',u'填写总的mac-address条目数',u'填写总的ARP条目数',u'填写温度范围',u'填写设备告警，无则填写“无告警”',u'填写异常日志，无异常则填写“正>常”']
route_title=[u'设备名称',u'设备类型',u'IP地址',u'检查项',u'命令',u'说明',u'检查结果']
route_jc=[u'设备状态',u'运行时长',u'Flash状态',u'CPU使用率',u'内存使用率',u'接口状态',u'路由条数',u'运行温度',u'告警',u'日志']
route_cmd=['dis device | ex Normal','dis version | in NE40E-X8 uptime','dir',u'在BOMC看','dis memory-usage','dis int brief (dis logbuffer | in IF_STATE)','dis ip routing-table protocol static','dis temperature','dis alarm all','dis logbuffer | in [date]']
route_sm=[u'填写Status不是“Normal”的项',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写状态为UP的端口数目',u'填写路由数目',u'填写温度范围',u'填写告警内容，无告警则填写“无告警”',u'填写异常日志，无异常则填写“正常”']
fuzai_title=[u'设备名称',u'设备类型',u'IP地址',u'检查项',u'命令',u'说明',u'检查结果']
fuzai_jc=[u'运行时长',u'电源状态',u'风扇状态',u'端口状态',u'各表项数值',u'CPU使用率',u'内存使用率',u'硬件温度',u'冗余状态',u'日志']
fuzai_cmd=['/i/sys/general','/i/sys/ps','/i/sys/fan','/i/link','/i/sys/capacity slb','/stats/mp/cpu','/stats/mp/mem','/i/sys/temp','/i/l3/vrrp','/i/sys/log']
fuzai_sm=[u'填写已运行天数，小时数',u'填写电源状态',u'填写风扇状态',u'填写Link处于UP状态的端口数',u'填写real servers/server groups/virtual servers/filters当前值',u'填写CPU使用率',u'填写内存使用率',u'填写温度',u'填写VRRP状态，"master"或者"backup"',u'填写异常日志，无异常则填写“正常”']
newsmswitch_title=[u'设备状态',u'运行时长',u'Flash状态',u'CPU使用率',u'内存使用率',u'接口状态',u'HSRP状态',u'MAC地址条目数',u'ARP条目数',u'路由条目数',u'运行温度',u'VPC状态',u'日志']
newsmswitch_cmd=['sh hardware | in ok','sh version | in uptime','dir',u'在BOMC看',u'在BOMC看','sh int brief (sh int brief | in up)','sh hsrp brief','sh mac address-table count','sh ip arp | in number','sh ip route static summary','sh environment temperature','sh vpc','sh logging last 30']
newsmswitch_sm=[u'填写状态为OK的模块数',u'填写已运行天数，小时数',u'填写total和free的flash大小',u'填写CPU使用率峰值和平均值',u'填写内存使用率',u'填写状态为UP的端口数目',u'查看HSRP状态(Active local则正常)',u'填写总的mac-address条目数',u'填写总的ARP条目数',u'填写路由数目',u'填写CurTemp范围',u'查看VPC状态是否正常',u'查看日志，无异常则填写"正常"']
# ip 我就隐藏掉啦,虽然也没什么意思
host={"DMZ-E8000E":[u'防火墙',"ip1"],"DMZ-M9006":[u'防火墙','ip2'],"SM-M9006":[u'防火墙','ip3'],"IN-FG3950B":[u'防火墙',"ip4"],"DMZ-S9306-1":[u'交换机',"ip5"],"DMZ-S9306-2":[u'交换机',"ip6"],"DMZ-S12508":[u'交换机',"ip7"],"IN-S12508":[u'交换机',"ip8"],"SM-S12508-1":[u'交换机',"ip9"],"SM-S12508-2":[u'交换机',"ip10"],"DMZ-NE40E-1":[u'路由器',"ip11"],"DMZ-NE40E-2":[u'路由器',"ip12"],"DMZ-RD5412-1":[u'负载',"ip13"],"DMZ-RD5412-2":[u'负载',"ip14"],"SM-RD6420-1":[u'负载',"ip15"],"SM-RD6420-2":[u'负载',"ip16"],"SM-N7K-1":[u"交换机","ip17"],"SM-N7K-2":[u"交换机","ip18"]}
# 开始填写固定单元格内容
worksheet0.write_row('A1',firewall_title,format_title)
worksheet0.merge_range('A2:A14','DMZ-E8000E',format_nr)
worksheet0.merge_range('B2:B14',host["DMZ-E8000E"][0],format_nr)
worksheet0.merge_range('C2:C14',host["DMZ-E8000E"][1],format_nr)
worksheet0.merge_range('A15:A28','DMZ-M9006',format_nr)
worksheet0.merge_range('B15:B28',host["DMZ-M9006"][0],format_nr)
worksheet0.merge_range('C15:C28',host["DMZ-M9006"][1],format_nr)
worksheet0.merge_range('A29:A42','SM-M9006',format_nr)
worksheet0.merge_range('B29:B42',host["SM-M9006"][0],format_nr)
worksheet0.merge_range('C29:C42',host["SM-M9006"][1],format_nr)
worksheet0.merge_range('A43:A54','IN-FG3950B',format_nr)
worksheet0.merge_range('B43:B54',host["IN-FG3950B"][0],format_nr)
worksheet0.merge_range('C43:C54',host["IN-FG3950B"][1],format_nr)
worksheet0.merge_range('E43:E46','get sys performance status',format_nrr)
worksheet0.merge_range('E47:E48','diagnose sys session stat',format_nrr)
worksheet0.write_column('D2',firewall_jc,format_nrr)
worksheet0.write_column('E2',firewall_cmd,format_nrr)
worksheet0.write_column('F2',firewall_sm,format_nrr)
worksheet0.write('D14',u'日志',format_bottom)
worksheet0.write('E14','dis logbuffer | in [data]',format_bottom)
worksheet0.write('F14',u'填写异常日志，无异常则填写“正常”',format_bottom)
worksheet0.write('D28',u'日志',format_bottom)
worksheet0.write('E28','dis logbuffer reverse | in [month]',format_bottom)
worksheet0.write('F28',u'填写异常日志，无异常则填写“正常”',format_bottom)
worksheet0.write('D42',u'日志',format_bottom)
worksheet0.write('E42','dis logbuffer reverse | in [month]',format_bottom)
worksheet0.write('F42',u'填写异常日志，无异常则填写“正常”',format_bottom)
worksheet0.write('D54',u'告警',format_bottom)
worksheet0.write('E54',u'网页登录查看',format_bottom)
worksheet0.write('F54',u'填写告警内容，无告警则填写“无告警”',format_bottom)
worksheet0.set_row(0,30)
worksheet0.set_column('B:B',15,None,{'hidden':1})
worksheet0.set_column('E:F',40,None,{'hidden':1})
worksheet0.set_column('A:A',15)
worksheet0.set_column('C:D',15)
worksheet0.set_column('G:G',40)
worksheet1.write_row('A1',switch_title,format_title)
worksheet1.merge_range('A2:A14','DMZ-S9306-1',format_nr)
worksheet1.merge_range('B2:B14',host["DMZ-S9306-1"][0],format_nr)
worksheet1.merge_range('C2:C14',host["DMZ-S9306-1"][1],format_nr)
worksheet1.merge_range('A15:A27','DMZ-S9306-2',format_nr)
worksheet1.merge_range('B15:B27',host["DMZ-S9306-2"][0],format_nr)
worksheet1.merge_range('C15:C27',host["DMZ-S9306-2"][1],format_nr)
worksheet1.merge_range('A28:A40','DMZ-S12508',format_nr)
worksheet1.merge_range('B28:B40',host["DMZ-S12508"][0],format_nr)
worksheet1.merge_range('C28:C40',host["DMZ-S12508"][1],format_nr)
worksheet1.merge_range('A41:A52','IN-S12508',format_nr)
worksheet1.merge_range('B41:B52',host["IN-S12508"][0],format_nr)
worksheet1.merge_range('C41:C52',host["IN-S12508"][1],format_nr)
worksheet1.merge_range('A53:A65','SM-N7K-1',format_nr)
worksheet1.merge_range('B53:B65',host["SM-N7K-1"][0],format_nr)
worksheet1.merge_range('C53:C65',host["SM-N7K-1"][1],format_nr)
worksheet1.merge_range('A66:A78','SM-N7K-2',format_nr)
worksheet1.merge_range('B66:B78',host["SM-N7K-2"][0],format_nr)
worksheet1.merge_range('C66:C78',host["SM-N7K-2"][1],format_nr)
worksheet1.write_column('D2',switch_jc,format_nrr)
worksheet1.write_column('D15',switch_jc,format_nrr)
worksheet1.write_column('D28',switch_jc1,format_nrr)
worksheet1.write_column('D41',switch_jc2,format_nrr)
worksheet1.write_column('D53',newsmswitch_title,format_nrr)
worksheet1.write_column('D66',newsmswitch_title,format_nrr)
worksheet1.write_column('E2',switch_cmd,format_nrr)
worksheet1.write_column('E15',switch_cmd,format_nrr)
worksheet1.write_column('E28',switch_cmmd,format_nrr)
worksheet1.write_column('E41',switch_cmd2,format_nrr)
worksheet1.write_column('E53',newsmswitch_cmd,format_nrr)
worksheet1.write_column('E66',newsmswitch_cmd,format_nrr)
worksheet1.write_column('F2',switch_sm,format_nrr)
worksheet1.write_column('F15',switch_sm,format_nrr)
worksheet1.write_column('F28',switch_ssm,format_nrr)
worksheet1.write_column('F41',switch_sm2,format_nrr)
worksheet1.write_column('F53',newsmswitch_sm,format_nrr)
worksheet1.write_column('F66',newsmswitch_sm,format_nrr)
worksheet1.set_row(0,30)
worksheet1.set_column('B:B',15,None,{'hidden':1})
worksheet1.set_column('E:F',40,None,{'hidden':1})
worksheet1.set_column('A:A',15)
worksheet1.set_column('C:D',15)
worksheet1.set_column('G:G',40)
worksheet2.write_row('A1',route_title,format_title)
worksheet2.merge_range('A2:A11','DMZ-NE40E-1',format_nr)
worksheet2.merge_range('B2:B11',host["DMZ-NE40E-1"][0],format_nr)
worksheet2.merge_range('C2:C11',host["DMZ-NE40E-1"][1],format_nr)
worksheet2.merge_range('A12:A21','DMZ-NE40E-2',format_nr)
worksheet2.merge_range('B12:B21',host["DMZ-NE40E-2"][0],format_nr)
worksheet2.merge_range('C12:C21',host["DMZ-NE40E-2"][1],format_nr)
worksheet2.write_column('D2',route_jc,format_nrr)
worksheet2.write_column('D12',route_jc,format_nrr)
worksheet2.write_column('E2',route_cmd,format_nrr)
worksheet2.write_column('E12',route_cmd,format_nrr)
worksheet2.write_column('F2',route_sm,format_nrr)
worksheet2.write_column('F12',route_sm,format_nrr)
worksheet2.set_row(0,30)
worksheet2.set_column('B:B',15,None,{'hidden':1})
worksheet2.set_column('E:F',40,None,{'hidden':1})
worksheet2.set_column('A:A',15)
worksheet2.set_column('C:D',15)
worksheet2.set_column('G:G',40)
worksheet3.write_row('A1',fuzai_title,format_title)
worksheet3.merge_range('A2:A11','DMZ-RD5412-1',format_nr)
worksheet3.merge_range('B2:B11',host["DMZ-RD5412-1"][0],format_nr)
worksheet3.merge_range('C2:C11',host["DMZ-RD5412-1"][1],format_nr)
worksheet3.merge_range('A12:A21','DMZ-RD5412-2',format_nr)
worksheet3.merge_range('B12:B21',host["DMZ-RD5412-2"][0],format_nr)
worksheet3.merge_range('C12:C21',host["DMZ-RD5412-2"][1],format_nr)
worksheet3.merge_range('A22:A31','SM-RD6420-1',format_nr)
worksheet3.merge_range('B22:B31',host["SM-RD6420-1"][0],format_nr)
worksheet3.merge_range('C22:C31',host["SM-RD6420-1"][1],format_nr)
worksheet3.merge_range('A32:A41','SM-RD6420-2',format_nr)
worksheet3.merge_range('B32:B41',host["SM-RD6420-2"][0],format_nr)
worksheet3.merge_range('C32:C41',host["SM-RD6420-2"][1],format_nr)
worksheet3.write_column('D2',fuzai_jc,format_nrr)
worksheet3.write_column('D12',fuzai_jc,format_nrr)
worksheet3.write_column('D22',fuzai_jc,format_nrr)
worksheet3.write_column('D32',fuzai_jc,format_nrr)
worksheet3.write_column('E2',fuzai_cmd,format_nrr)
worksheet3.write_column('E12',fuzai_cmd,format_nrr)
worksheet3.write_column('E22',fuzai_cmd,format_nrr)
worksheet3.write_column('E32',fuzai_cmd,format_nrr)
worksheet3.write_column('F2',fuzai_sm,format_nrr)
worksheet3.write_column('F12',fuzai_sm,format_nrr)
worksheet3.write_column('F22',fuzai_sm,format_nrr)
worksheet3.write_column('F32',fuzai_sm,format_nrr)
worksheet3.set_row(0,30)
worksheet3.set_column('B:B',15,None,{'hidden':1})
worksheet3.set_column('E:F',40,None,{'hidden':1})
worksheet3.set_column('A:A',15)
worksheet3.set_column('C:D',15)
worksheet3.set_column('G:G',40)
jcx=[u'日志','dis logbuffer | in [date]',u'填写异常日志，无异常则填写“正常”']
jcx1=[u'日志','dis logbuffer reverse | in [date]',u'填写异常日志，无异常则填写“正常”']
jcx2=[u'日志','sh logging last 30',u'查看日志，无异常则填写“正常”']
fuzai_jcx=[u'日志','/i/sys/log',u'填写异常日志，无异常则填写“正常”']
worksheet1.write_row('D14',jcx,format_bottom)
worksheet1.write_row('D27',jcx,format_bottom)
worksheet1.write_row('D40',jcx,format_bottom)
worksheet1.write_row('D52',jcx1,format_bottom)
worksheet1.write_row('D65',jcx2,format_bottom)
worksheet1.write_row('D78',jcx2,format_bottom)
worksheet2.write_row('D11',jcx,format_bottom)
worksheet2.write_row('D21',jcx,format_bottom)
worksheet3.write_row('D11',fuzai_jcx,format_bottom)
worksheet3.write_row('D21',fuzai_jcx,format_bottom)
worksheet3.write_row('D31',fuzai_jcx,format_bottom)
worksheet3.write_row('D41',fuzai_jcx,format_bottom)
# 这边开始根据之前与设备交互所得到的数据文件内容来填格子了。
#------------------------------------------------
#----------firewall_ip1----------------
#------------------------------------------------
try:
hang=1
temp=[]
hang_list=cmd("HRP_M<JSYD-WX-12580-DMZ-E8000E-1>",file_01)
rules=[]
g=0
with open(file_01) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if int(hang_list[2])-int(hang_list[1]) == 6:
worksheet0.write('G2',u'正常',format_rt)
else:
worksheet0.write('G2','ERROR',format_red)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if num[0] == 'HUAWEI':
worksheet0.write('G3',u'%s天，%s小时'%(num[4],num[6]),format_rt)
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 11:
temp.append(num[-1])
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if ',' in num[0]:
total=num[0].replace(',','')+' KB '+num[3].replace(',','')+' KB)'
worksheet0.write('G5',total,format_rt)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if num[0] == 'Memory':
worksheet0.write('G7',num[-1],format_rt)
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if num[0] == 'Role:':
if num[1] == 'active,' and num[-1] == 'standby':
worksheet0.write('G8',u'正常',format_rt)
else:
worksheet0.write('G8',u'有',format_red)
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0] == 'Current':
worksheet0.write('G9',str(num[-1]),format_rt)
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Destinations' and len(num) == 10:
worksheet0.write('G10',str(num[2]),format_rt)
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if len(num) == 7:
if num[1] == 'up':
g+=1
if hang > int(hang_list[10]) and hang < int(hang_list[14]):
if num!=[]:
if num[0] == 'Advanced':
rules.append(num[3])
if hang > int(hang_list[14]) and hang < int(hang_list[15]):
if int(hang_list[-2])-int(hang_list[-3]) == 8:
worksheet0.write('G13',u'无告警',format_rt)
else:
worksheet0.write('G13',u'有告警',format_red)
if hang > int(hang_list[15]) and hang < int(hang_list[16]):
pass
hang = hang + 1
temp.sort()
worksheet0.write('G4',u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
worksheet0.write('G6',None,format_rt)
worksheet0.write('G11',g,format_rt)
worksheet0.write('G12','%s+%s+%s+%s=%d'%(rules[0],rules[1],rules[2],rules[3],int(rules[0])+int(rules[1])+int(rules[2])+int(rules[3])),format_rt)
worksheet0.write('G14',u'正常',format_right)
except IOError as reason:
print "01DMZ-E8000E.py "+str(reason)
#------------------------------------------------
#----------firewall_iP2----------------
#------------------------------------------------
try:
hang=1
state=dict()
hang_list=cmd("<W-12580-M9006>",file_02_2)
temp=[]
rules=0
mem=[]
g=0
all=0
n=0
level=0
q=0
status=0
type=0
with open(file_02_2) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[0].isdigit() and len(num) == 7:
if num[3] == 'Absent':
if num[2] != 'NONE':
type=1
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if len(num) == 13:
worksheet0.write('G16',u'%d天，%s小时'%(int(num[5])*7+int(num[7]),num[9]),format_rt)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if len(num) == 9:
temp.append(num[4])
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 6:
total='%s KB %s KB)'%(num[0],num[3])
worksheet0.write('G18',total,format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if len(num) == 8:
if num[-1] != 'KB:':
result='%.1f%%'%(100-float(num[-1].split('%')[0]))
mem.append(result)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if 'GigabitEthernet' in num[1]:
if num[2] != 'UP':
status+=1
if 'GigabitEthernet' in num[0]:
if num[1] != 'UP':
status+=1
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if num[0].isdigit() and len(num) == 5:
if num[3] != 'Primary' and num[3] != 'Secondary':
q=1
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0].isdigit() and len(num) == 9:
g+=1
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Summary':
state[n]=num[3]
n+=1
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if len(num) >= 4 and num[1] == 'UP':
all+=1
if hang > int(hang_list[10]) and hang < int(hang_list[12]):
if num!=[]:
if num[0] == 'rule':
rules+=1
if hang > int(hang_list[12]) and hang < int(hang_list[13]):
if num!=[]:
if num[0].isdigit() and len(num) >5:
if num[3] != 'INFO':
level=1
if hang > int(hang_list[13]) and hang < int(hang_list[14]):
pass
hang+=1
temp.sort()
mem.sort()
if type == 0:
worksheet0.write('G15',u'正常',format_rt)
else:
worksheet0.write('G15','ERROR',format_red)
worksheet0.write('G17',u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
worksheet0.write('G19',None,format_rt)
worksheet0.write('G20','%s-%s'%(mem[0],mem[-1]),format_rt)
if status == 0:
worksheet0.write('G21',u'正常',format_rt)
else:
worksheet0.write('G21',status,format_rt)
if q == 0:
worksheet0.write('G22',u'正常',format_rt)
else:
worksheet0.write('G22',u'有',format_red)
worksheet0.write('G23',g,format_rt)
worksheet0.write('G24',state[0],format_rt)
worksheet0.write('G25',all,format_rt)
worksheet0.write('G26','%d'%rules,format_rt)
if level == 1:
worksheet0.write('G27','ERROR',format_red)
else:
worksheet0.write('G27',u'无告警',format_rt)
worksheet0.write('G28',u'正常',format_right)
except IOError as reason:
print "02DMZ-M9006.py "+str(reason)
#------------------------------------------------
#----------firewall_ip3----------------
#------------------------------------------------
try:
hang=1
state=dict()
hang_list=cmd("<W-SM-M9006>",file_02_1)
temp=[]
rules=[]
mem=[]
g=0
all=0
n=0
level=0
q=0
status=0
type=0
with open(file_02_1) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[0].isdigit() and len(num) == 7:
if num[3] == 'Absent':
if num[2] != 'NONE':
type=1
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if len(num) == 13:
worksheet0.write('G30',u'%d天，%s小时'%(int(num[5])*7+int(num[7]),num[9]),format_rt)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if len(num) == 9:
temp.append(num[4])
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 6:
total='%s KB %s KB)'%(num[0],num[3])
worksheet0.write('G32',total,format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if len(num) == 8:
if num[-1] != 'KB:':
result='%.1f%%'%(100-float(num[-1].split('%')[0]))
mem.append(result)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if 'GigabitEthernet' in num[1]:
if num[2] != 'UP':
status=1
if 'GigabitEthernet' in num[0]:
if num[1] != 'UP':
status=1
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if num[0].isdigit() and len(num) == 5:
if num[3] != 'Primary' and num[3] != 'Secondary':
q=1
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0].isdigit() and len(num) == 9:
g+=1
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Summary':
state[n]=num[3]
n+=1
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if len(num) >= 4 and num[1] == 'UP':
all+=1
if hang > int(hang_list[10]) and hang < int(hang_list[12]):
if num!=[]:
if num[0] == 'Advanced':
rules.append(num[5])
if hang > int(hang_list[12]) and hang < int(hang_list[13]):
if num!=[]:
if num[0].isdigit() and len(num) >5:
if num[3] != 'INFO':
level=1
if hang > int(hang_list[13]) and hang < int(hang_list[14]):
pass
hang+=1
temp.sort()
mem.sort()
if type == 0:
worksheet0.write('G29',u'正常',format_rt)
else:
worksheet0.write('G29','ERROR',format_red)
worksheet0.write('G31',u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
worksheet0.write('G33',None,format_rt)
worksheet0.write('G34','%s-%s'%(mem[0],mem[-1]),format_rt)
if status == 0:
worksheet0.write('G35',u'正常',format_rt)
else:
worksheet0.write('G35','ERROR',format_red)
if q == 0:
worksheet0.write('G36',u'正常',format_rt)
else:
worksheet0.write('G36',u'有',format_red)
worksheet0.write('G37',g,format_rt)
worksheet0.write('G38',state[0],format_rt)
worksheet0.write('G39',all,format_rt)
worksheet0.write('G40','%s+%s=%d'%(rules[0],rules[1],int(rules[0])+int(rules[1])),format_rt)
if level == 1:
worksheet0.write('G41','ERROR',format_red)
else:
worksheet0.write('G41',u'无告警',format_rt)
worksheet0.write('G42',u'正常',format_right)
except IOError as reason:
print "03SM-M9006.py "+str(reason)
#------------------------------------------------
#----------firewall_ip4----------------
#------------------------------------------------
try:
hang=1
g=0
hang_list=cmd("W-IN-FG3950-1 #",file_03)
with open(file_03) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[0] == 'Memory':
worksheet0.write('G45',num[2],format_rt)
if len(num) == 8 and num[1] == 'Uptime:':
worksheet0.write('G43',u'%s天，%s小时'%(num[2],num[4]),format_rt)
if num[0] == 'Average':
if num[1] == 'network':
worksheet0.write('G46',num[-5],format_rt)
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0] == "misc":
session_count=num[2].split('=')
setup_rate=num[3].split('=')
worksheet0.write('G47',session_count[-1],format_rt)
worksheet0.write('G48',setup_rate[-1],format_rt)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if 'S' in num[0] and len(num) >= 6:
g+=1
hang+=1
worksheet0.write('G51',g,format_rt)
worksheet0.write('G44',None,format_rt)
worksheet0.write('G49',None,format_rt)
worksheet0.write('G50',None,format_rt)
worksheet0.write('G52',None,format_rt)
worksheet0.write('G53',None,format_rt)
worksheet0.write('G54',None,format_right)
except IOError as reason:
print "04IN-FG3950B.py "+str(reason)
#------------------------------------------------
#------------switch_ip5----------------
#------------switch_ip6----------------
#------------------------------------------------
try:
for i in range(2):
hang=1
alarm=0
state=0
status=0
alm=0
temp_list=[]
index={0:list(range(2,15)),1:list(range(15,28))}
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/0'+str(i+5)+'DMZ-S9306-'+str(i+1)+'.txt'
hang_list=cmd('<JSYD-WX-12580-DMZ-9306-%d>'%(i+1),file)
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if len(num) == 8 and num[1] == '-':
if num[-2] != 'Normal':
alarm=1
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if num[0] == 'Quidway':
worksheet1.write('G'+str(index[i][1]),u'%d天, %s小时'%(int(num[7])*7+int(num[9]),num[11]),format_rt)
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 6 and num[1] == 'KB':
mem=num[0].split(',')
free=num[3].split(',')
worksheet1.write('G'+str(index[i][2]),'%s KB %s KB)'%(mem[0]+mem[1],free[0]+free[1]),format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if len(num) == 6 and num[4] == 'Max:':
worksheet1.write('G'+str(index[i][3]),num[3],format_rt)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if len(num) == 5 and num[0] == 'Memory':
worksheet1.write('G'+str(index[i][4]),num[-1],format_rt)
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if len(num) >=6 and num[1] == 'up':
state+=1
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0].isdigit() and len(num) == 5:
if i == 0 and num[1] != 'Master':
status=1
if i == 1 and num[1] != 'Backup':
status=1
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Total':
worksheet1.write('G'+str(index[i][7]),num[-1],format_rt)
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if num[0] == 'Dynamic:':
worksheet1.write('G'+str(index[i][8]),num[1],format_rt)
if hang > int(hang_list[10]) and hang < int(hang_list[11]):
if num!=[]:
if num[0] == 'Destinations' and len(num) == 10:
worksheet1.write('G'+str(index[i][9]),num[2],format_rt)
if hang > int(hang_list[11]) and hang < int(hang_list[12]):
if num!=[]:
if len(num) >= 6 and num[-5].isdigit():
temp=num[-1].split('.')
temp_list.append(temp[0])
if hang > int(hang_list[12]) and hang < int(hang_list[13]):
if num!=[]:
if len(num) == 2 and num[0] == 'NO' and num[1] == 'alarm':
alm = 1
if hang > int(hang_list[13]) and hang < int(hang_list[14]):
if num!=[]:
pass
hang+=1
temp_list.sort()
if alarm == 0:
worksheet1.write('G'+str(index[i][0]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][0]),'ERROR',format_red)
worksheet1.write('G'+str(index[i][5]),state,format_rt)
if i == 0:
if status == 0:
worksheet1.write('G'+str(index[i][6]),'Master',format_rt)
else:
worksheet1.write('G'+str(index[i][6]),'No Master',format_red)
else:
if status == 0:
worksheet1.write('G'+str(index[i][6]),'Backup',format_rt)
else:
worksheet1.write('G'+str(index[i][6]),'No Backup',format_red)
worksheet1.write('G'+str(index[i][10]),u'%s℃-%s℃'%(temp_list[0],temp_list[-1]),format_rt)
if alm == 1:
worksheet1.write('G'+str(index[i][11]),u'无告警',format_rt)
else:
worksheet1.write('G'+str(index[i][11]),u'有告警',format_red)
worksheet1.write('G'+str(index[i][12]),u'正常',format_right)
except IOError as reason:
print "05_06DMZ-S9306.py "+str(reason)
#------------------------------------------------
#------------switch_ip7----------------
#------------switch_ip8----------------
#------------------------------------------------
try:
fi_list=['07DMZ-S12508.txt']
fi_name=['<W-DMZ-G1G2-12508>']
state=[]
for i in range(1):
hang=1
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/'+fi_list[i]
hang_list=cmd(fi_name[i],file)
brd_status=['Master','Slave','Absent']
brd=0
link=0
Master=0
Backup=0
count=[]
temp=[]
alarm=0
status=0
index={0:list(range(28,41))}
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0].isdigit() and len(num) == 4:
if num[2] not in brd_status:
brd=1
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if len(num) == 12:
worksheet1.write('G'+str(index[i][1]),u'%d天, %s小时'%(int(num[4])*7+int(num[6]),num[8]),format_rt)
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 6 and num[1] == 'KB':
worksheet1.write('G'+str(index[i][2]),'%s KB %s KB)'%(num[0],num[3]),format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if num[0] == 'Used':
worksheet1.write('G'+str(index[i][4]),num[-1],format_rt)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if 'GigabitEthernet' in num[1]:
if num[2] != 'UP':
status+=1
if 'GigabitEthernet' in num[0]:
if num[1] != 'UP':
status+=1
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if len(num) >=2 and num[1] == 'UP':
link+=1
#if num[0] == '----' and num[5] == 'UP':
# link+=1
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0].isdigit():
worksheet1.write('G'+str(index[i][7]),num[0],format_rt)
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Total' and num[-1].isdigit():
worksheet1.write('G'+str(index[i][8]),num[-1],format_rt)
if hang > int(hang_list[9]) and hang < int(hang_list[11]):
if num!=[]:
if num[0] == 'Summary' and num[-1].isdigit():
count.append(num[-1])
if hang > int(hang_list[11]) and hang < int(hang_list[12]):
pass
if hang > int(hang_list[12]) and hang < int(hang_list[13]):
if num!=[]:
if len(num) >= 8:
if num[3].isdigit():
temp.append(num[3])
if num[0] == '----' and num[1] == 'More':
temp.append(num[7])
if hang > int(hang_list[13]) and hang < int(hang_list[14]):
if num!=[]:
if num[0] == 'No' and num[1] == 'alarm':
alarm=1
if hang > int(hang_list[14]) and hang < int(hang_list[15]):
if num!=[]:
pass
hang+=1
temp.sort()
if brd == 0:
worksheet1.write('G'+str(index[i][0]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][0]),'ERROR',format_red)
if status == 0:
worksheet1.write('G'+str(index[i][5]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][5]),status,format_rt)
worksheet1.write('G'+str(index[i][3]),None,format_rt)
worksheet1.write('G'+str(index[i][6]),link,format_rt)
worksheet1.write('G'+str(index[i][9]),int(count[1])+int(count[-2]),format_rt)
worksheet1.write('G'+str(index[i][10]),u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
if alarm == 1:
worksheet1.write('G'+str(index[i][11]),u'无告警',format_rt)
else:
worksheet1.write('G'+str(index[i][11]),'Error',format_red)
worksheet1.write('G'+str(index[i][12]),u'正常',format_right)
except IOError as reason:
print "07_08-S12508-01.py"+str(reason)
try:
fi_list=['08IN-S12508.txt']
fi_name=['<W-IN-G7G8-12508>']
state=[]
for i in range(1):
hang=1
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/'+fi_list[i]
hang_list=cmd(fi_name[i],file)
brd_status=['Master','Slave','Absent']
brd=0
link=0
Master=0
Backup=0
count=[]
temp=[]
alarm=0
status=0
index={0:list(range(41,53))}
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0].isdigit() and len(num) == 4:
if num[2] not in brd_status:
brd=1
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if len(num) == 12:
worksheet1.write('G'+str(index[i][1]),u'%d天, %s小时'%(int(num[4])*7+int(num[6]),num[8]),format_rt)
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) == 6 and num[1] == 'KB':
worksheet1.write('G'+str(index[i][2]),'%s KB %s KB)'%(num[0],num[3]),format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if num[0] == 'Used':
worksheet1.write('G'+str(index[i][4]),num[-1],format_rt)
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if 'GigabitEthernet' in num[1]:
if num[2] != 'UP':
status+=1
if 'GigabitEthernet' in num[0]:
if num[1] != 'UP':
status+=1
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if len(num) >=2 and num[1] == 'UP':
link+=1
#if num[0] == '----' and num[5] == 'UP':
# link+=1
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0].isdigit():
worksheet1.write('G'+str(index[i][7]),num[0],format_rt)
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if num[0] == 'Total' and num[-1].isdigit():
worksheet1.write('G'+str(index[i][8]),num[-1],format_rt)
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if len(num) >= 8:
if num[3].isdigit():
temp.append(num[3])
if num[0] == '----' and num[1] == 'More':
temp.append(num[7])
if hang > int(hang_list[10]) and hang < int(hang_list[11]):
if num!=[]:
if num[0] == 'No' and num[1] == 'alarm':
alarm=1
if hang > int(hang_list[11]) and hang < int(hang_list[12]):
if num!=[]:
pass
hang+=1
temp.sort()
if brd == 0:
worksheet1.write('G'+str(index[i][0]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][0]),'ERROR',format_red)
if status == 0:
worksheet1.write('G'+str(index[i][5]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][5]),status,format_rt)
worksheet1.write('G'+str(index[i][3]),None,format_rt)
worksheet1.write('G'+str(index[i][6]),link,format_rt)
worksheet1.write('G'+str(index[i][9]),u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
if alarm == 1:
worksheet1.write('G'+str(index[i][10]),u'无告警',format_rt)
else:
worksheet1.write('G'+str(index[i][10]),'Error',format_red)
worksheet1.write('G'+str(index[i][11]),u'正常',format_right)
except IOError as reason:
print "07_08-S12508-02.py"+str(reason)
#------------------------------------------------
#------------switch_ip9----------------
#------------switch_ip10----------------
#------------------------------------------------
try:
fi_list=['09SM-N7K-1.txt','10SM-N7K-2.txt']
fi_name=['W-SM-N7K-1#','W-SM-N7K-2#']
state=[]
for i in range(2):
hang=1
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/'+fi_list[i]
hang_list=cmd1(fi_name[i],file)
index={0:list(range(53,66)),1:list(range(66,79))}
count1 = 0
count2 = 0
count3 = 0
temp = []
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[1] == 'ok':
count1 +=1
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0] == 'Kernel':
uptime = u'%s天,%s小时'%(num[3],num[5])
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if len(num) == 3:
if num[-1] == 'free':
free = num[0]
if num[-1] == 'total':
total = num[0]
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if len(num) >= 3:
if num[2] == 'up' or num[4] == 'up' or num[5] == 'up':
count2 +=1
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
pass
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if num[-1].isdigit():
count3 += int(num[-1])
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if num[-1].isdigit():
worksheet1.write('G'+str(index[i][8]),num[-1],format_rt)
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if len(num) == 5 and num[-1].isdigit():
worksheet1.write('G'+str(index[i][9]),num[-1],format_rt)
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if len(num) >= 6 and num[-2].isdigit():
temp.append(num[-2])
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
if len(num) >=4 and num[0].isdigit():
status = num[2]
if hang > int(hang_list[10]) and hang < int(hang_list[11]):
if num!=[]:
pass
hang+=1
temp.sort()
worksheet1.write('G'+str(index[i][0]),count1,format_rt)
worksheet1.write('G'+str(index[i][1]),uptime,format_rt)
worksheet1.write('G'+str(index[i][2]),'%s KB (%s KB)'%(total,free),format_rt)
worksheet1.write('G'+str(index[i][3]),None,format_rt)
worksheet1.write('G'+str(index[i][4]),None,format_rt)
worksheet1.write('G'+str(index[i][5]),count2,format_rt)
worksheet1.write('G'+str(index[i][6]),None,format_rt)
worksheet1.write('G'+str(index[i][7]),count3,format_rt)
worksheet1.write('G'+str(index[i][10]),u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
if status == 'up':
worksheet1.write('G'+str(index[i][11]),u'正常',format_rt)
else:
worksheet1.write('G'+str(index[i][11]),u'不正常',format_red)
worksheet1.write('G'+str(index[i][12]),u'正常',format_right)
except Exception as reason:
print "09_10SM-N7K.py "+str(reason)
#------------------------------------------------
#------------route_ip11----------------
#------------route_ip12----------------
#------------------------------------------------
try:
fi_list=['11DMZ-NE40E-1.txt','12DMZ-NE40E-2.txt']
fi_name=['<W-SM-E11-NE40E-01>','<W-SM-E12-NE40E-02>']
device=['dis','NE40E-X8\'s','Slot','-']
status=0
for i in range(2):
hang=1
phy=0
temp=[]
alarm=0
index={0:list(range(2,12)),1:list(range(12,22))}
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/'+fi_list[i]
hang_list=cmd(fi_name[i],file)
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[0] not in device:
status=1
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0] == 'HUAWEI':
worksheet2.write('G'+str(index[i][1]),u'%s天，%s小时'%(num[4],num[6]),format_rt)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if ',' in num[0]:
total=num[0].replace(',','')+' KB '+num[3].replace(',','')+' KB)'
worksheet2.write('G'+str(index[i][2]),total,format_rt)
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if num[0] == 'Memory' and len(num) == 5:
worksheet2.write('G'+str(index[i][4]),num[-1],format_rt)
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if len(num) == 7 and num[1] == 'up':
phy+=1
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if num[0] == 'Destinations' and len(num) == 10:
worksheet2.write('G'+str(index[i][6]),num[2],format_rt)
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if len(num) >= 7 and num[-1].isdigit():
temp.append(num[-1])
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0] == 'NO' and num[1] == 'alarm':
alarm=1
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
pass
hang+=1
temp.sort()
if status == 0:
worksheet2.write('G'+str(index[i][0]),u'正常',format_rt)
else:
worksheet2.write('G'+str(index[i][0]),'Error',format_red)
worksheet2.write('G'+str(index[i][3]),None,format_rt)
worksheet2.write('G'+str(index[i][5]),phy,format_rt)
worksheet2.write('G'+str(index[i][7]),u'%s℃-%s℃'%(temp[0],temp[-1]),format_rt)
if alarm == 1:
worksheet2.write('G'+str(index[i][8]),u'无告警',format_rt)
else:
worksheet2.write('G'+str(index[i][8]),'Error',format_red)
worksheet2.write('G'+str(index[i][9]),u'正常',format_right)
except IOError as reason:
print "11_12.py "+str(reason)
#------------------------------------------------
#------------fuzai_ip13-----------------
#------------fuzai_ip14-----------------
#------------fuzai_ip15-----------------
#------------fuzai_ip16-----------------
#------------------------------------------------
try:
fi_list=['13DMZ-RD5412-1.txt','14DMZ-RD5412-2.txt','15SM-RD6420-1.txt','16SM-RD6420-2.txt']
fi_name='>> '
state=[]
for i in range(4):
hang=1
status=0
link=0
temp=[]
Master=0
Backup=0
index={0:list(range(2,12)),1:list(range(12,22)),2:list(range(22,32)),3:list(range(32,42))}
file='/usr/sh/shell/linux/xunjian/'+str(today)+'/'+fi_list[i]
hang_list=cmd(fi_name,file)
with open(file) as f:
for each_line in f:
num=each_line.split()
if hang > int(hang_list[0]) and hang < int(hang_list[1]):
if num!=[]:
if num[0] == 'Switch':
worksheet3.write('G'+str(index[i][0]),u'%s天，%s时'%(num[3],num[5]),format_rt)
if hang > int(hang_list[1]) and hang < int(hang_list[2]):
if num!=[]:
if num[0] == 'Dual':
if num[-1] == "OK":
worksheet3.write('G'+str(index[i][1]),u'正常',format_rt)
else:
worksheet3.write('G'+str(index[i][1]),'Error',format_red)
if hang > int(hang_list[2]) and hang < int(hang_list[3]):
if num!=[]:
if num[0].isdigit() and len(num) == 3:
if num[-1] != 'Operational':
status=1
if hang > int(hang_list[3]) and hang < int(hang_list[4]):
if num!=[]:
if num[0].isdigit() and len(num) == 7:
if num[-1] == 'up':
link+=1
if hang > int(hang_list[4]) and hang < int(hang_list[5]):
if num!=[]:
if num[0] == 'Real' and num[1] == 'Servers' and len(num) == 4:
Real_Servers=num[-1].split('(')[-1].split(')')[0]
if num[0] == 'Server' and num[1] == 'Groups' and len(num) == 4:
Server_Groups=num[-1]
if num[0] == 'Virtual' and num[1] == 'Servers' and len(num) == 4:
Virtual_Servers=num[-1].split('(')[-1].split(')')[0]
if num[0] == 'Filters' and len(num) == 3:
Filters=num[-1].split('(')[-1].split(')')[0]
if hang > int(hang_list[5]) and hang < int(hang_list[6]):
if num!=[]:
if num[0] == 'cpuUtil1Second:':
worksheet3.write('G'+str(index[i][5]),num[-1],format_rt)
if hang > int(hang_list[6]) and hang < int(hang_list[7]):
if num!=[]:
if num[0] == 'Total:':
Total=int(num[-2])
if num[0] == 'Free:':
Free=int(num[-2])
if hang > int(hang_list[7]) and hang < int(hang_list[8]):
if num!=[]:
if num[0] == 'Sensor' and len(num) == 6:
temp.append(num[3])
if hang > int(hang_list[8]) and hang < int(hang_list[9]):
if num!=[]:
if len(num) == 10:
if num[-1] == 'master':
Master+=1
if num[-1] == 'backup':
Backup+=1
if hang > int(hang_list[9]) and hang < int(hang_list[10]):
if num!=[]:
pass
hang+=1
state.append(Master)
state.append(Backup)
if status == 0:
worksheet3.write('G'+str(index[i][2]),u'正常',format_rt)
else:
worksheet3.write('G'+str(index[i][2]),'Error',format_red)
worksheet3.write('G'+str(index[i][3]),link,format_rt)
worksheet3.write('G'+str(index[i][4]),'%s/%s/%s/%s'%(Real_Servers,Server_Groups,Virtual_Servers,Filters),format_rt)
worksheet3.write('G'+str(index[i][6]),'%.2f%%'%(float(Total-Free)/Total*100),format_rt)
worksheet3.write('G'+str(index[i][7]),temp[0],format_rt)
worksheet3.write('G'+str(index[i][9]),u'正常',format_right)
if state[0] == state[3]:
worksheet3.write('G10','master',format_rt)
worksheet3.write('G20','backup',format_rt)
else:
worksheet3.write('G10','Error',format_red)
worksheet3.write('G20','Error',format_red)
if state[4] == state[-1]:
worksheet3.write('G30','master',format_rt)
worksheet3.write('G40','backup',format_rt)
else:
worksheet3.write('G30','Error',format_red)
worksheet3.write('G40','Error',format_red)
except IOError as reason:
print "13_16-RD5412-6420.py"+str(reason)
workbook.close()
5、总脚本入口
wlxj.sh # 总的脚本入口
#!/bin/bash
#-----------网络巡检--------------------
dir=/usr/sh/shell/linux/xunjian/python_shell
dir1=/usr/sh/shell/linux/xunjian
if [ ! -d $dir1/$(date '+%Y%m%d') ];then
mkdir -p $dir1/$(date '+%Y%m%d')
fi
_shell()
{
pass='哈哈哈我是密码1'
password='哈哈哈我是密码2'
ps1='哈哈哈哈我是密码3'
/usr/bin/python $dir/01DMZ-E8000E.py 'ip1' $pass $password
/usr/bin/python $dir/02_03-M9006.py 'ip2' $pass $password
/usr/bin/python $dir/02_03-M9006.py 'ip3' $pass $password
/usr/bin/python $dir/04IN-FG3950B.py 'ip4' $password
/usr/bin/python $dir/05_06DMZ-S9306.py 'ip5' $pass $password
/usr/bin/python $dir/05_06DMZ-S9306.py 'ip6' $pass $password
/usr/bin/python $dir/07_08-S12508.py 'ip7' $pass $password
/usr/bin/python $dir/07_08-S12508.py 'ip8' $pass $password
/usr/bin/python $dir/09_10SM-N7K.py 'ip9' $ps1
/usr/bin/python $dir/09_10SM-N7K.py 'ip10' $ps1
/usr/bin/python $dir/11_12DMZ-NE40E.py 'ip11' $password
/usr/bin/python $dir/11_12DMZ-NE40E.py 'ip12' $password
/usr/bin/python $dir/13_16-RD5412_6420.py 'ip13' $password
/usr/bin/python $dir/13_16-RD5412_6420.py 'ip14' $password
/usr/bin/python $dir/13_16-RD5412_6420.py 'ip15' $password
/usr/bin/python $dir/13_16-RD5412_6420.py 'ip16' $password
}
aa=`ls -l $dir1/$(date '+%Y%m%d') | wc -l`
Year=$(date '+%Y')
Month=$(date '+%m')
Day=$(date '+%d')
if [ $Month -lt 10 ];then
Month=`echo $Month | sed 's/0//g'`
fi
if [ $Day -lt 10 ];then
Day=`echo $Day | sed 's/0//g'`
fi
tday=$(date '+%Y.%m.%d')
new_tday="$Year.$Month.$Day"
zip_tday="$Month.$Day"
_shell
# 这边尴尬了，输出的文件有的格式有问题，就得改改了
cp -a $dir1/$(date '+%Y%m%d')/02DMZ-M9006.txt $dir1/$(date '+%Y%m%d')/02DMZ-M9006.txt.bak
cat $dir1/$(date '+%Y%m%d')/02DMZ-M9006.txt.bak | tr -s "\r\n" "\n" > $dir1/$(date '+%Y%m%d')/02DMZ-M9006.txt
cp -a $dir1/$(date '+%Y%m%d')/03SM-M9006.txt $dir1/$(date '+%Y%m%d')/03SM-M9006.txt.bak
cat $dir1/$(date '+%Y%m%d')/03SM-M9006.txt.bak | tr -s "\r\n" "\n" > $dir1/$(date '+%Y%m%d')/03SM-M9006.txt
# 得到excel 文件
/usr/bin/python $dir/wangluo_xunjian.py > /dev/null 2>&1
if [ -f $dir1/$(date '+%Y%m%d')/网络设备巡检-$tday.xlsx ];then
sed -i 's/Cmcc.*$//g' $dir1/$(date '+%Y%m%d')/*.txt
zip -qj $dir1/$(date '+%Y%m%d')/$zip_tday.zip $dir1/$(date '+%Y%m%d')/*.txt >/dev/null
if [ $? -ne 0 ];then
/usr/bin/python $dir/mail_zip_error.py >/dev/null 2>&1
else
mv $dir1/$(date '+%Y%m%d')/网络设备巡检-$tday.xlsx $dir1/$(date '+%Y%m%d')/网络设备巡检-$new_tday.xlsx
/usr/bin/python $dir/mail.py xixixi@139.com "收件人，多个以分号分隔" "$dir1/$(date '+%Y%m%d')/网络设备巡检-$new_tday.xlsx" "$dir1/$(date '+%Y%m%d')/$zip_tday.zip"
fi
else
/usr/bin/python $dir/mail_excel_error.py >/dev/null 2>&1
fi
6、加入定时任务
我自己定的每天上午9点
7、成品图
以上这篇对Python 网络设备巡检脚本的实例讲解就是小编分享给大家的全部内容了，希望能给大家一个参考，也希望大家多多支持【听图阁-专注于Python设计】。
