利用python求解物理学中的双弹簧质能系统详解

yipeiwu_com5年前Python基础

前言

本文主要给大家介绍了关于利用python求解物理学中双弹簧质能系统的相关内容,分享出来供大家参考学习,下面话不多说了,来一起看看详细的介绍吧。

物理的模型如下:

在这个系统里有两个物体,它们的质量分别是m1和m2,被两个弹簧连接在一起,伸缩系统为k1和k2,左端固定。假定没有外力时,两个弹簧的长度为L1和L2。

由于两物体有重力,那么在平面上形成摩擦力,那么摩擦系数分别为b1和b2。所以可以把微分方程写成这样:

这是一个二阶的微分方程,为了使用python来求解,需要把它转换为一阶微分方程。所以引入下面两个变量:

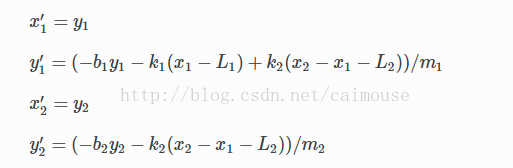

这两个相当于运动的速度。通过运算可以改为这样:

这时可以线性方程改为向量数组的方式,就可以使用python定义了

代码如下:

# Use ODEINT to solve the differential equations defined by the vector field
from scipy.integrate import odeint

def vectorfield(w, t, p):
 """
 Defines the differential equations for the coupled spring-mass system.

 Arguments:
  w : vector of the state variables:
     w = [x1,y1,x2,y2]
  t : time
  p : vector of the parameters:
     p = [m1,m2,k1,k2,L1,L2,b1,b2]
 """
 x1, y1, x2, y2 = w
 m1, m2, k1, k2, L1, L2, b1, b2 = p

 # Create f = (x1',y1',x2',y2'):
 f = [y1,
   (-b1 * y1 - k1 * (x1 - L1) + k2 * (x2 - x1 - L2)) / m1,
   y2,
   (-b2 * y2 - k2 * (x2 - x1 - L2)) / m2]
 return f

# Parameter values
# Masses:
m1 = 1.0
m2 = 1.5
# Spring constants
k1 = 8.0
k2 = 40.0
# Natural lengths
L1 = 0.5
L2 = 1.0
# Friction coefficients
b1 = 0.8
b2 = 0.5

# Initial conditions
# x1 and x2 are the initial displacements; y1 and y2 are the initial velocities
x1 = 0.5
y1 = 0.0
x2 = 2.25
y2 = 0.0

# ODE solver parameters
abserr = 1.0e-8
relerr = 1.0e-6
stoptime = 10.0
numpoints = 250

# Create the time samples for the output of the ODE solver.
# I use a large number of points, only because I want to make
# a plot of the solution that looks nice.
t = [stoptime * float(i) / (numpoints - 1) for i in range(numpoints)]

# Pack up the parameters and initial conditions:
p = [m1, m2, k1, k2, L1, L2, b1, b2]
w0 = [x1, y1, x2, y2]

# Call the ODE solver.
wsol = odeint(vectorfield, w0, t, args=(p,),
    atol=abserr, rtol=relerr)

with open('two_springs.dat', 'w') as f:
 # Print & save the solution.
 for t1, w1 in zip(t, wsol):
  out = '{0} {1} {2} {3} {4}\n'.format(t1, w1[0], w1[1], w1[2], w1[3]);
  print(out)
  f.write(out);

在这里把结果输出到文件two_springs.dat,接着写一个程序来把数据显示成图片,就可以发表论文了,代码如下:

# Plot the solution that was generated

from numpy import loadtxt
from pylab import figure, plot, xlabel, grid, hold, legend, title, savefig
from matplotlib.font_manager import FontProperties

t, x1, xy, x2, y2 = loadtxt('two_springs.dat', unpack=True)

figure(1, figsize=(6, 4.5))

xlabel('t')
grid(True)
lw = 1

plot(t, x1, 'b', linewidth=lw)
plot(t, x2, 'g', linewidth=lw)

legend((r'$x_1$', r'$x_2$'), prop=FontProperties(size=16))
title('Mass Displacements for the\nCoupled Spring-Mass System')
savefig('two_springs.png', dpi=100)

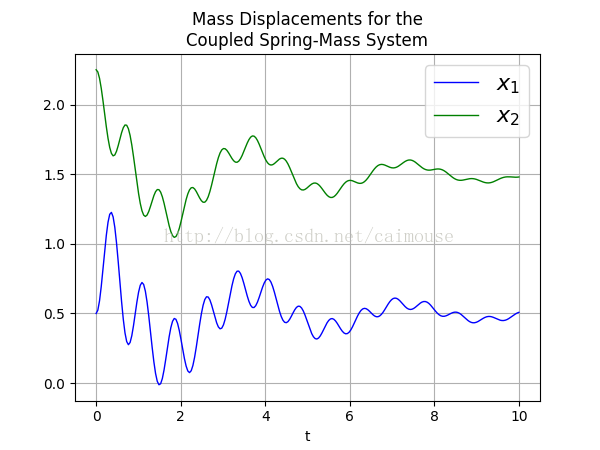

最后来查看一下输出的png图片如下:


总结

以上就是这篇文章的全部内容了,希望本文的内容对大家的学习或者工作具有一定的参考学习价值,如果有疑问大家可以留言交流,谢谢大家对【听图阁-专注于Python设计】的支持。
