Django使用 Bootstrap 样式修改书籍列表过程解析

yipeiwu_com5年前Python基础

展示书籍列表：

首先修改原先的 book_list.html 的代码：

<!DOCTYPE html>
<!-- saved from url=(0042)https://v3.bootcss.com/examples/dashboard/ -->
<html lang="zh-CN">
<head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <!-- 上述3个meta标签*必须*放在最前面，任何其他内容都*必须*跟随其后！ -->
  <meta name="description" content="">
  <meta name="author" content="">
  <link rel="icon" href="https://v3.bootcss.com/favicon.ico" rel="external nofollow" rel="external nofollow" rel="external nofollow" >

  <title>书籍列表管理</title>
  <!-- Bootstrap core CSS -->
  <link href="/static/bootstrap/css/bootstrap.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <!-- Custom styles for this template -->
  <link href="/static/dashboard.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <link rel="stylesheet" href="/static/fontawesome/css/font-awesome.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" >
</head>

<body>
<nav class="navbar navbar-inverse navbar-fixed-top">
  <div class="container-fluid">
    <div class="navbar-header">
      <button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar"
          aria-expanded="false" aria-controls="navbar">
        <span class="sr-only">Toggle navigation</span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
      </button>
      <a class="navbar-brand" href="https://v3.bootcss.com/examples/dashboard/#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >图书管理系统</a>
    </div>
    <div id="navbar" class="navbar-collapse collapse">
      <ul class="nav navbar-nav navbar-right">
        <li><a href="https://v3.bootcss.com/examples/dashboard/#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >Dashboard</a></li>
        <li><a href="https://v3.bootcss.com/examples/dashboard/#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >Settings</a></li>
        <li><a href="https://v3.bootcss.com/examples/dashboard/#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >Profile</a></li>
        <li><a href="https://v3.bootcss.com/examples/dashboard/#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >Help</a></li>
      </ul>
      <form class="navbar-form navbar-right">
        <input type="text" class="form-control" placeholder="Search...">
      </form>
    </div>
  </div>
</nav>

<div class="container-fluid">
  <div class="row">
    <div class="col-sm-3 col-md-2 sidebar">
      <!-- active 表示当前页面，会加亮 -->
      <ul class="nav nav-sidebar">
        <li><a href="/publisher_list/" rel="external nofollow" >出版社列表页</a></li>
        <li class="active"><a href="/book_list/" rel="external nofollow" >书籍列表</a></li>
        <li><a href="/author_list/" rel="external nofollow" >作者列表</a></li>
      </ul>

    </div>
    <div class="col-sm-9 col-sm-offset-3 col-md-10 col-md-offset-2 main">
      <h1 class="page-header">书籍管理页面</h1>

      <div class="panel panel-primary">
        <!-- Default panel contents -->
        <div class="panel-heading">书籍列表 <i class="fa fa-thumb-tack pull-right"></i></div>
        <div class="panel-body">
          <div class="row" style="margin-bottom: 15px">
            <div class="col-md-4">
              <div class="input-group">
                <input type="text" class="form-control" placeholder="Search for...">
                <span class="input-group-btn">
                  <button class="btn btn-default" type="button">搜索</button>
                </span>
              </div><!-- /input-group -->
            </div><!-- /.col-md-4 -->
            <!-- 跳转到另一页面，添加新的书籍 -->
            <div class="col-md-1 pull-right">
              <a href="/add_book/" rel="external nofollow" class="btn btn-success">新增</a>
            </div>

          </div><!-- /.row -->

          <table class="table table-bordered">
            <thead>
            <tr>
              <th>#</th>
              <th>id</th>
              <th>书名</th>
              <th>出版社名称</th>
              <th>操作</th>
            </tr>
            </thead>
            <!-- 从原先的 book_list.html 拷贝过来的代码-->
            <tbody>
            {% for book in book_list %}
              <tr>
                <td>{{ forloop.counter }}</td>
                <td>{{ book.id }}</td>
                <td>{{ book.title }}</td>
                <td>{{ book.publisher.name }}</td>
                <td>
                  <a class="btn btn-danger" href="/del_book/?id={{ book.id }}" rel="external nofollow" >删除</a>
                  <a class="btn btn-info" href="/edit_book/?id={{ book.id }}" rel="external nofollow" >编辑</a>
                </td>
              </tr>
            {% endfor %}
            </tbody>
          </table>

          <nav aria-label="Page navigation" class="text-right">
            <ul class="pagination">
              <li>
                <a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" aria-label="Previous">
                  <span aria-hidden="true">«</span>
                </a>
              </li>
              <li><a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >1</a></li>
              <li><a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >2</a></li>
              <li><a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >3</a></li>
              <li><a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >4</a></li>
              <li><a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" >5</a></li>
              <li>
                <a href="#" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" aria-label="Next">
                  <span aria-hidden="true">»</span>
                </a>
              </li>
            </ul>
          </nav>
        </div>

      </div>
    </div>
  </div>
</div>


<div class="modal fade" tabindex="-1" role="dialog" id="myModal">
  <div class="modal-dialog" role="document">
    <div class="modal-content">
      <div class="modal-header">
        <button type="button" class="close" data-dismiss="modal" aria-label="Close"><span aria-hidden="true">×</span>
        </button>
        <h4 class="modal-title">用户信息</h4>
      </div>
      <div class="modal-body">
        <form class="form-horizontal">
          <div class="form-group">
            <label for="inputEmail3" class="col-sm-2 control-label">邮箱</label>
            <div class="col-sm-10">
              <input type="email" class="form-control" id="inputEmail3" placeholder="Email">
            </div>
          </div>
          <div class="form-group">
            <label for="inputPassword3" class="col-sm-2 control-label">密码</label>
            <div class="col-sm-10">
              <input type="password" class="form-control" id="inputPassword3" placeholder="Password">
            </div>
          </div>
        </form>
      </div>
      <div class="modal-footer">
        <button type="button" class="btn btn-default" data-dismiss="modal">取消</button>
        <button type="button" class="btn btn-primary">保存</button>
      </div>
    </div><!-- /.modal-content -->
  </div><!-- /.modal-dialog -->
</div><!-- /.modal -->

<!-- Bootstrap core JavaScript
================================================== -->
<!-- Placed at the end of the document so the pages load faster -->
<script src="/static/jquery-3.3.1.js"></script>
<script src="/static/bootstrap/js/bootstrap.min.js"></script>

</body>
</html>

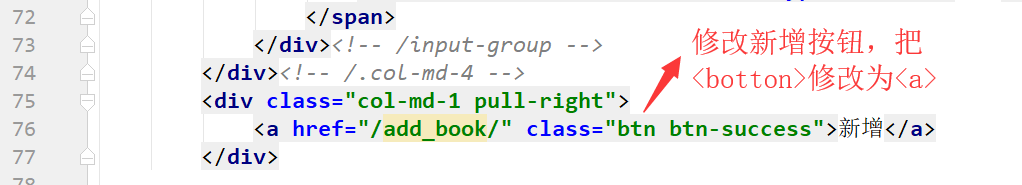

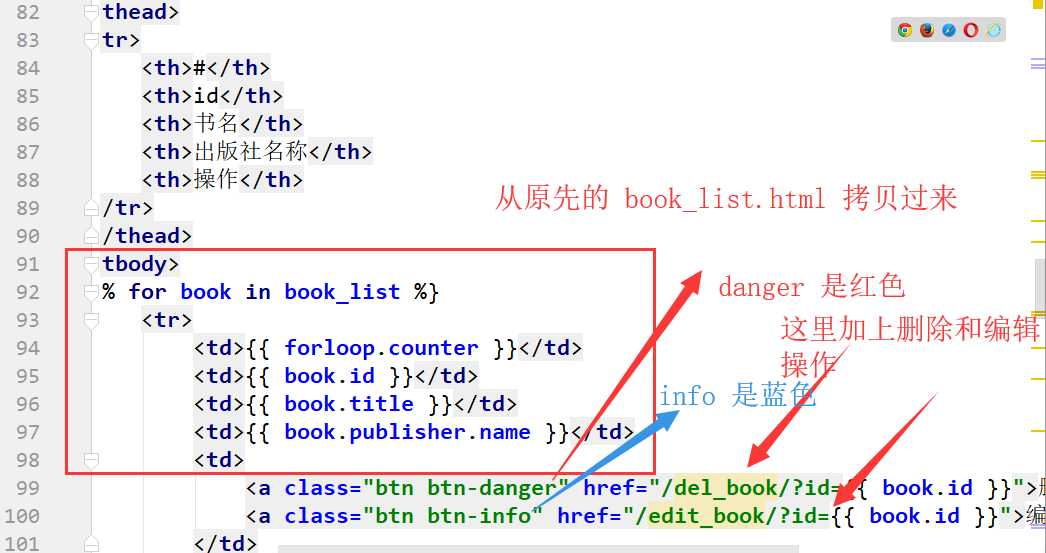

修改过程：

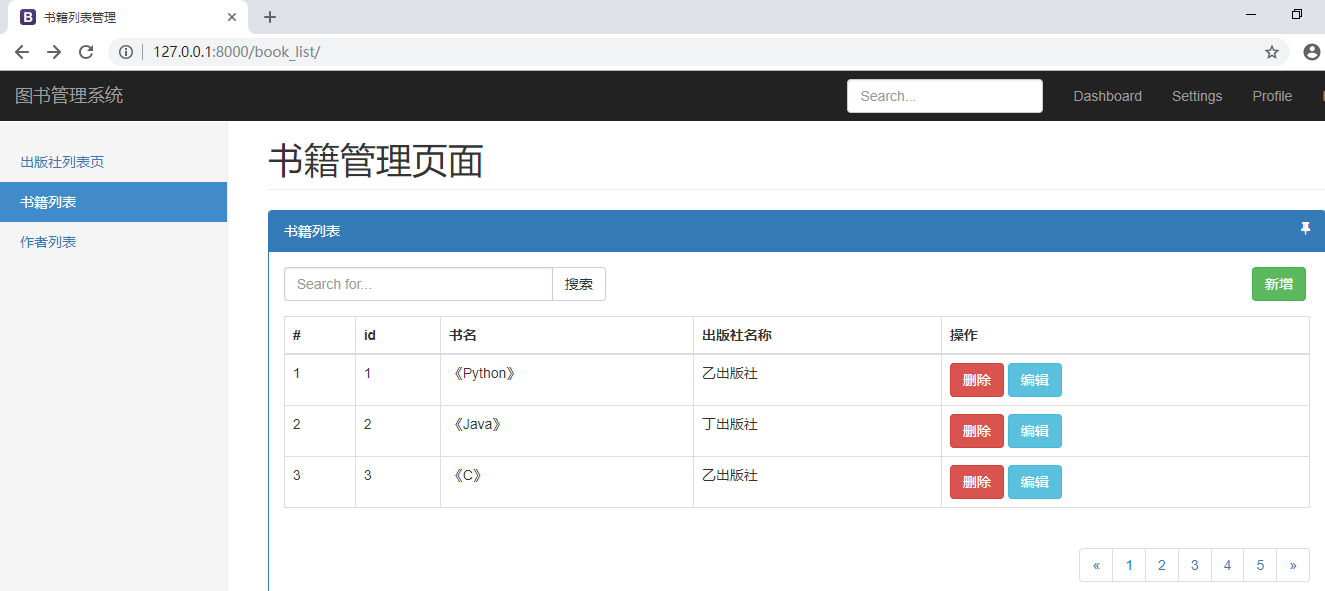

运行效果：

添加书籍：

再来修改 add_book.html

<!DOCTYPE html>
<!-- saved from url=(0042)https://v3.bootcss.com/examples/dashboard/ -->
<html lang="zh-CN">
<head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <!-- 上述3个meta标签*必须*放在最前面，任何其他内容都*必须*跟随其后！ -->
  <meta name="description" content="">
  <meta name="author" content="">
  <link rel="icon" href="https://v3.bootcss.com/favicon.ico" rel="external nofollow" rel="external nofollow" rel="external nofollow" >

  <title>添加书籍</title>
  <!-- Bootstrap core CSS -->
  <link href="/static/bootstrap/css/bootstrap.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <!-- Custom styles for this template -->
  <link href="/static/dashboard.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <link rel="stylesheet" href="/static/fontawesome/css/font-awesome.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" >
</head>
<!-- 以上 head 部分从 book_list.html 赋值过来并加以修改 -->

<!-- 以下 body 部分可从 Bootstrap 网站上找相关代码 -->
<body>

<div class="container">
  <div class="row">
    <div class="col-md-6 col-md-offset-3">

      <div class="panel panel-primary">
        <div class="panel-heading">添加书籍</div>
        <div class="panel-body">
          <form class="form-horizontal" action="/add_book/" method="post">
            <div class="form-group">
              <label for="book_title" class="col-sm-2 control-label">书名</label>
              <div class="col-sm-10">
                <input type="text" class="form-control" id="book_title" name="book_title"
                    placeholder="书名">
              </div>
            </div>
            <div class="form-group">
              <label for="inputPassword3" class="col-sm-2 control-label">出版社</label>
              <div class="col-sm-10">
                <select class="form-control" name="publisher">
                  {% for publisher in publisher_list %}
                    <option value="{{ publisher.id }}">{{ publisher.name }}</option>
                  {% endfor %}
                </select>
              </div>
            </div>
            <div class="form-group">
              <div class="col-sm-offset-2 col-sm-10">
                <button type="submit" class="btn btn-success">提交</button>
              </div>
            </div>
          </form>
        </div>
      </div>
    </div>
  </div>
</div>
</body>
</html>

修改过程：

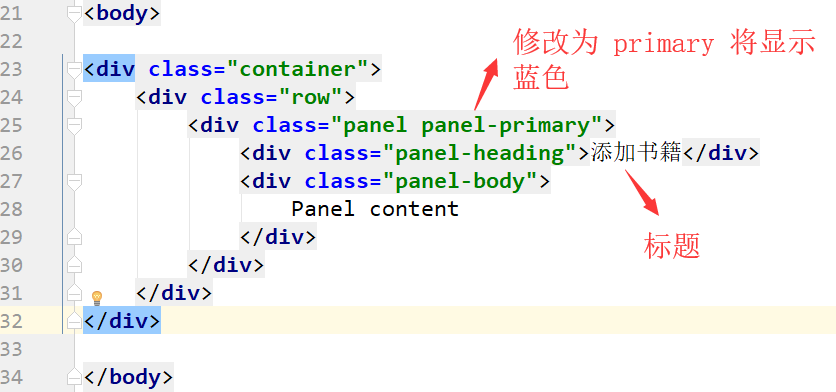

先写一个 container

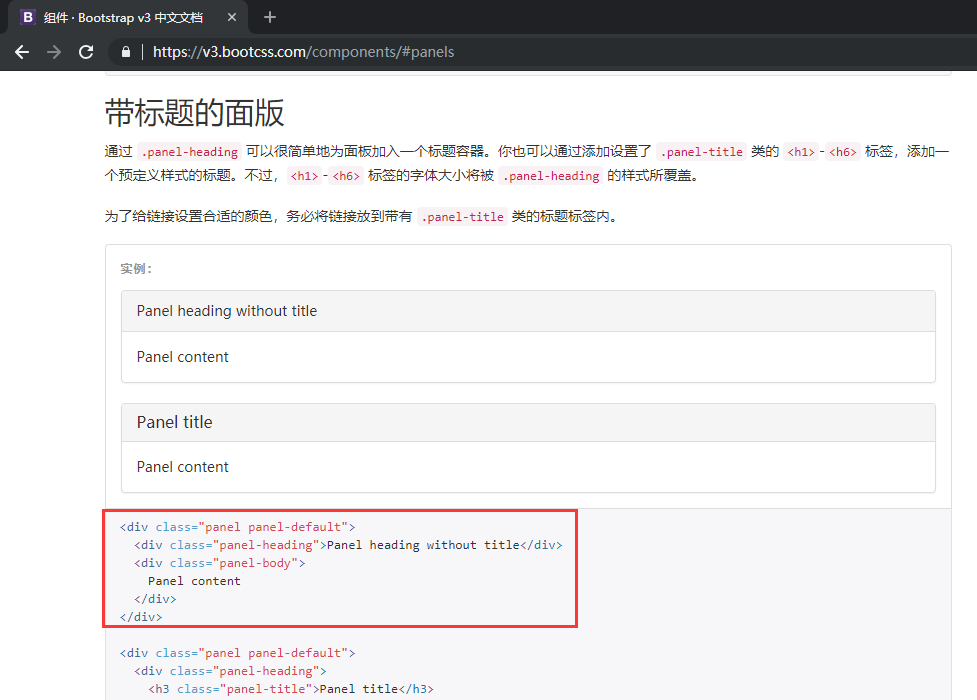

找一个面板，在 Bootstrap 的组件中可找到

复制代码，并进行修改

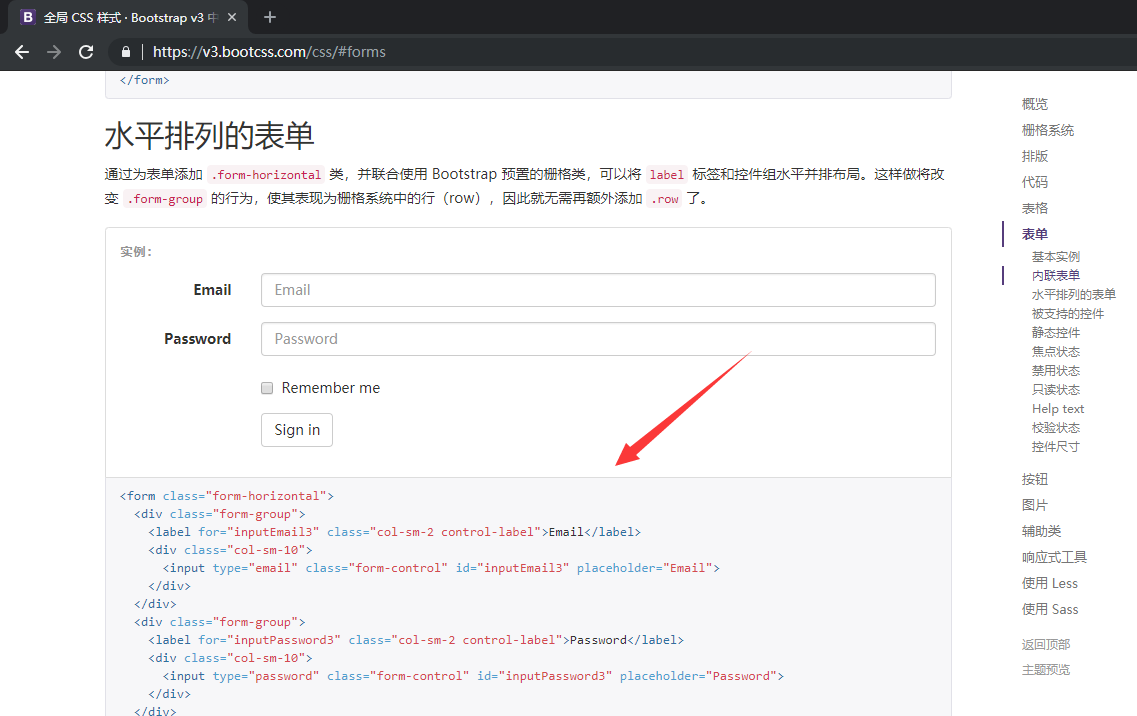

现在需要一个 form 表单，在 Bootstrap 的全局 CSS 样式中找

复制下面的代码，替换面板代码中的 Panel content，并进行修改

先修改 email 处

<div class="form-group">
  <label for="inputEmail3" class="col-sm-2 control-label">Email</label>
  <div class="col-sm-10">
    <input type="email" class="form-control" id="inputEmail3" placeholder="Email">
  </div>
</div>

修改为：

<div class="form-group">
  <label for="book_title" class="col-sm-2 control-label">书名</label>
  <div class="col-sm-10">
    <input type="text" class="form-control" id="book_title" name="book_title" placeholder="书名">
  </div>
</div>

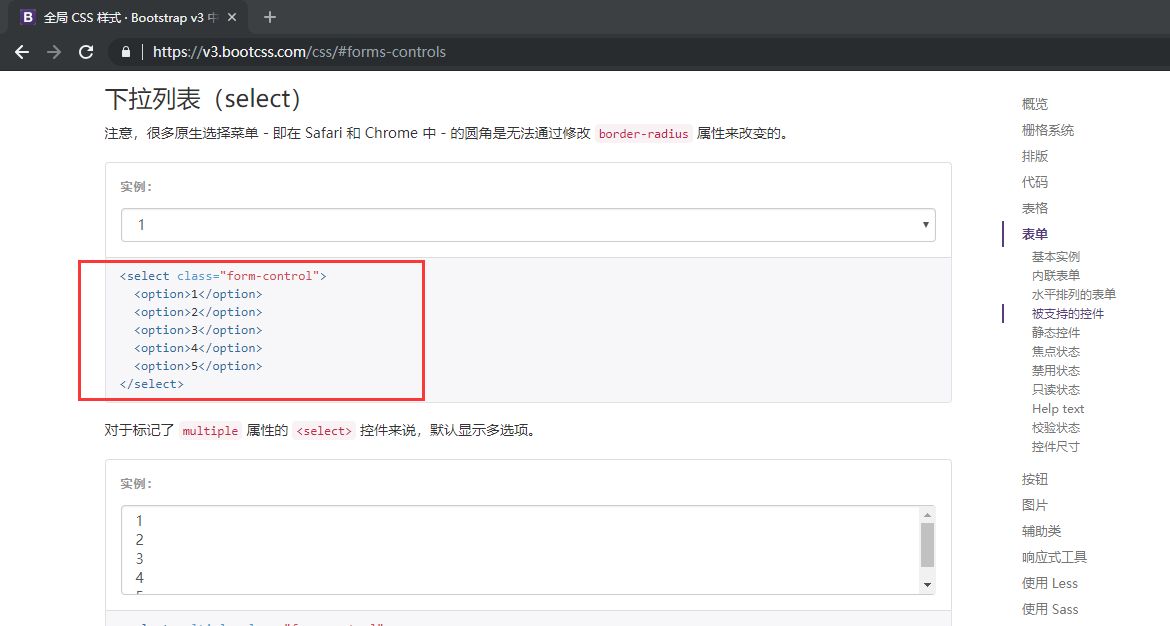

再来修改 password 处，这里需要用到下拉列表，还是去 Bootstrap 上找

在 “菜单” -> "被支持的控件" 处

复制代码，并进行修改

<div class="form-group">
  <label for="inputPassword3" class="col-sm-2 control-label">Password</label>
  <div class="col-sm-10">
    <input type="password" class="form-control" id="inputPassword3" placeholder="Password">
  </div>
</div>

修改为：

<div class="form-group">
  <label for="inputPassword3" class="col-sm-2 control-label">出版社</label>
  <!-- 下拉列表 -->
  <div class="col-sm-10">
    <select class="form-control" name="publisher">
      {% for publisher in publisher_list %}
        <option value="{{ publisher.id }}">{{ publisher.name }}</option>
      {% endfor %}
    </select>
  </div>
</div>

接着修改剩下的部分

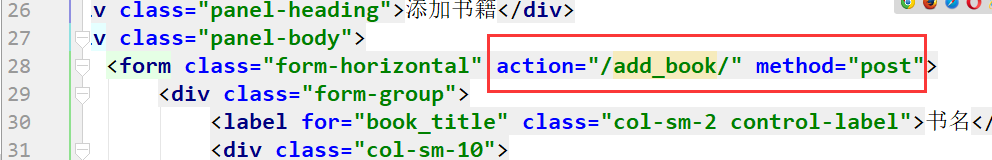

最后在 form 表单处添加 action 和 method

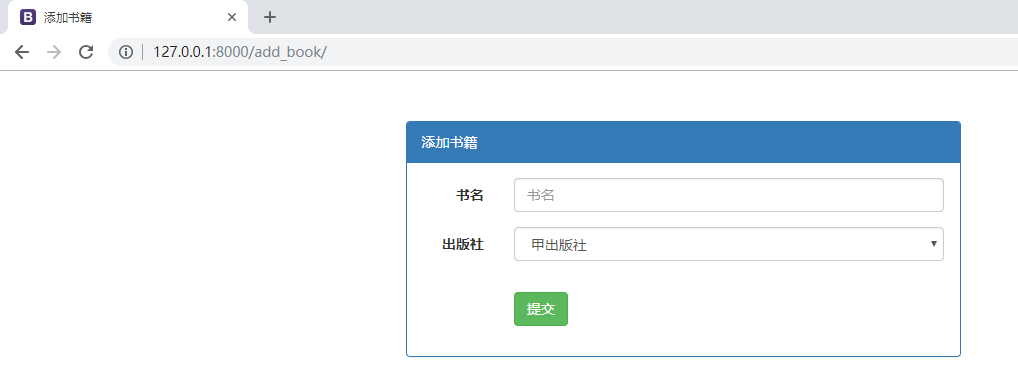

运行效果：

编辑书籍：

最后修改 edit_book.html

<!DOCTYPE html>
<!-- saved from url=(0042)https://v3.bootcss.com/examples/dashboard/ -->
<html lang="zh-CN">
<head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <!-- 上述3个meta标签*必须*放在最前面，任何其他内容都*必须*跟随其后！ -->
  <meta name="description" content="">
  <meta name="author" content="">
  <link rel="icon" href="https://v3.bootcss.com/favicon.ico" rel="external nofollow" rel="external nofollow" rel="external nofollow" >

  <title>编辑书籍</title>
  <!-- Bootstrap core CSS -->
  <link href="/static/bootstrap/css/bootstrap.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <!-- Custom styles for this template -->
  <link href="/static/dashboard.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="stylesheet">
  <link rel="stylesheet" href="/static/fontawesome/css/font-awesome.min.css" rel="external nofollow" rel="external nofollow" rel="external nofollow" >
</head>
<body>

<div class="container">
  <div class="row">
    <div class="col-md-6 col-md-offset-3">

      <div class="panel panel-primary">
        <div class="panel-heading">编辑书籍</div>
        <div class="panel-body">
          <form class="form-horizontal" action="/edit_book/" method="post">
            <input type="text" style="display: none" name="id" value="{{ book_obj.id }}">
            <div class="form-group">
              <label for="book_title" class="col-sm-2 control-label">书名</label>
              <div class="col-sm-10">
                <input type="text" class="form-control" id="book_title" name="book_title"
                    placeholder="书名" value="{{ book_obj.title }}">
              </div>
            </div>
            <div class="form-group">
              <label for="inputPassword3" class="col-sm-2 control-label">出版社</label>
              <div class="col-sm-10">
                <select class="form-control" name="publisher">

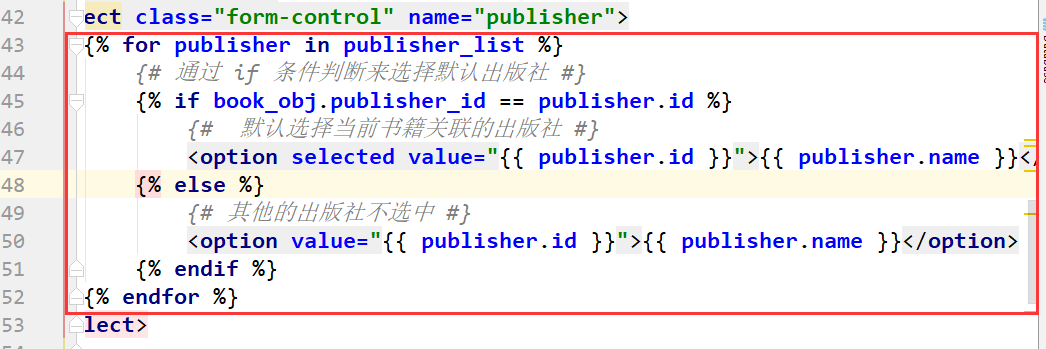

                  {% for publisher in publisher_list %}
                    {# 通过 if 条件判断来选择默认出版社 #}
                    {% if book_obj.publisher_id == publisher.id %}
                      {# 默认选择当前书籍关联的出版社 #}
                      <option selected value="{{ publisher.id }}">{{ publisher.name }}</option>
                    {% else %}
                      {# 其他的出版社不选中 #}
                      <option value="{{ publisher.id }}">{{ publisher.name }}</option>
                    {% endif %}
                  {% endfor %}
                </select>
              </div>
            </div>
            <div class="form-group">
              <div class="col-sm-offset-2 col-sm-10">
                <button type="submit" class="btn btn-success">提交</button>
              </div>
            </div>
          </form>
        </div>
      </div>
    </div>
  </div>
</div>
</body>
</html>

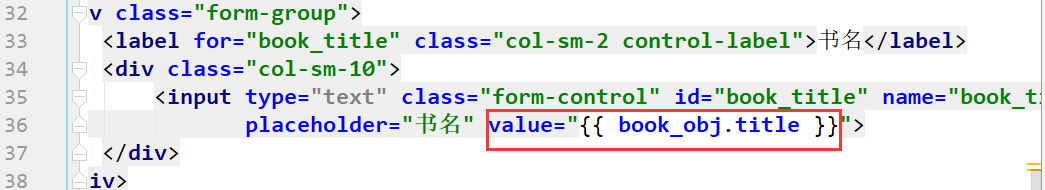

修改过程：

首先把 add_book.html 复制过去，然后修改相关标题，把 “添加书籍” 改为 “编辑书籍”

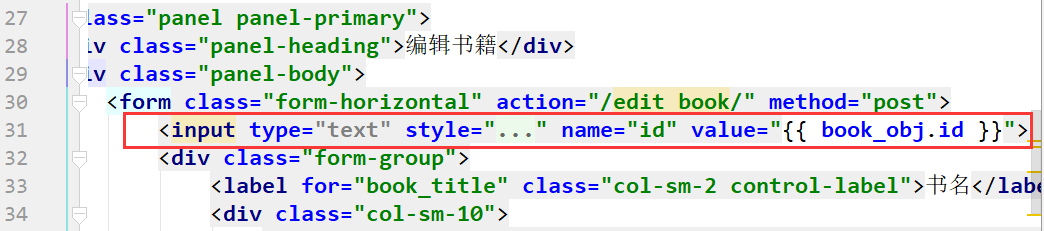

然后在 form 表单下一行添加一个有书籍 id 的 input 标签

然后在书名的那个 input 处添加一个 value

然后将下拉列表的出版社选择改为原 edit_book.html 的

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持【听图阁-专注于Python设计】。

返回列表

上一篇：Python字符转换

下一篇：PHP生成静态页面详解

相关文章

Python使用matplotlib绘制三维图形示例

Python使用matplotlib绘制三维图形示例

本文实例讲述了Python使用matplotlib绘制三维图形。分享给大家供大家参考，具体如下： 用二维泡泡图表示三维数据 泡泡的坐标2维，泡泡的大小三维，使用到的函数 plt.sc...

Python用UUID库生成唯一ID的方法示例

UUID介绍 UUID是128位的全局唯一标识符，通常由32字节的字符串表示。它可以保证时间和空间的唯一性，也称为GUID，全称为：UUID —— Universally Unique...

Python循环语句中else的用法总结

前言 本文讨论Python的for…else和while…else等语法，这些是Python中最不常用、最为误解的语法特性之一。 Python中的for、while等循环都有一个可选的e...

python3在同一行内输入n个数并用列表保存的例子

最近在学习算法，经常遇到一行有多个数据，用空格或者','进行分割。最开始不懂，直接百度， n = input() n = int(n) list1 = [] list1 = inpu...

python pandas获取csv指定行 列的操作方法

pandas获取csv指定行，列 house_info = pd.read_csv('house_info.csv') 1：取行的操作： house_info.loc[3:6]类似于py...

© YiPeiWu.com 【宜配屋】 粤ICP备17031333号

Powered By Z-BlogPHP. Theme by TOYEAN.
