python+mysql实现个人论文管理系统
本文实例为大家分享了python mysql个人论文管理系统的具体代码，供大家参考，具体内容如下
1.mysql数据库建表
在mysql数据库里面建立两个表，分别是用户表和论文表。建表的方式有很多，可以直接用sql语句进行建表，也可以在Navicat里面直接建，在Navicat里面可以清楚的看到我们建表的类型和表中的数据。
上图是用户表的数据类型

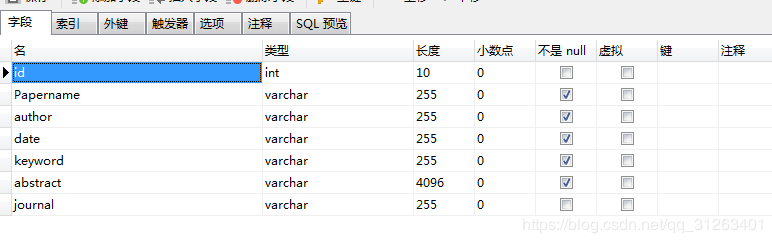

上图是论文表的数据类型

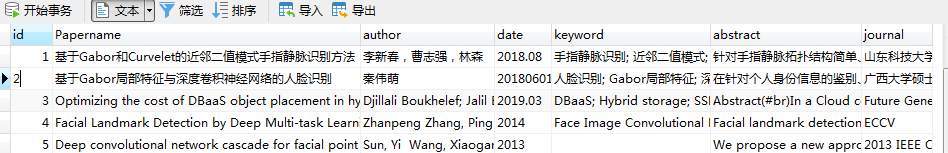

上图是论文表的样例

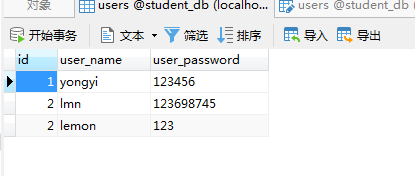

上图是用户表的样例
2.流程实现展示
本次系统的实现主要用到python的pymysql库来连接mysql数据库，用wxpython库来实现可视化界面，通过自己定义的db.py的类库来实现对数据库的增删改查等基本的功能。主体的程序主要用到类的继承来实现整个流程。

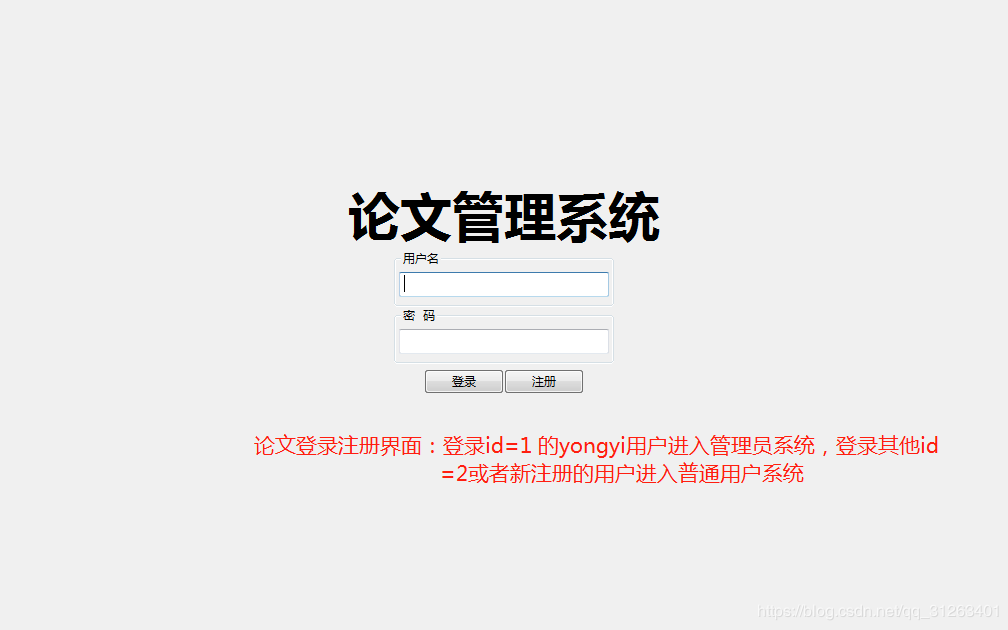

1.登录界面展示

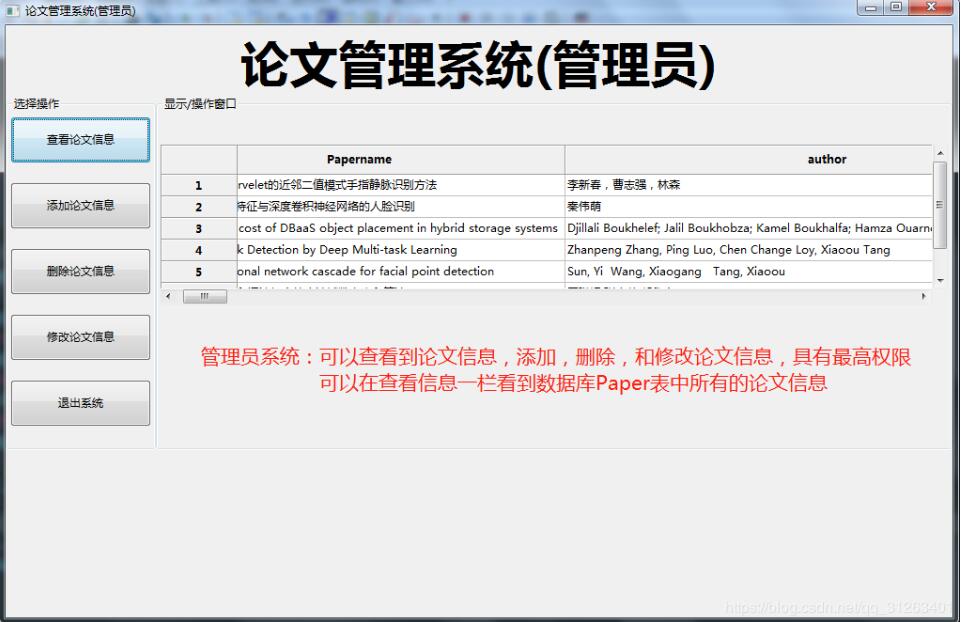

2.管理员权限进入系统展示

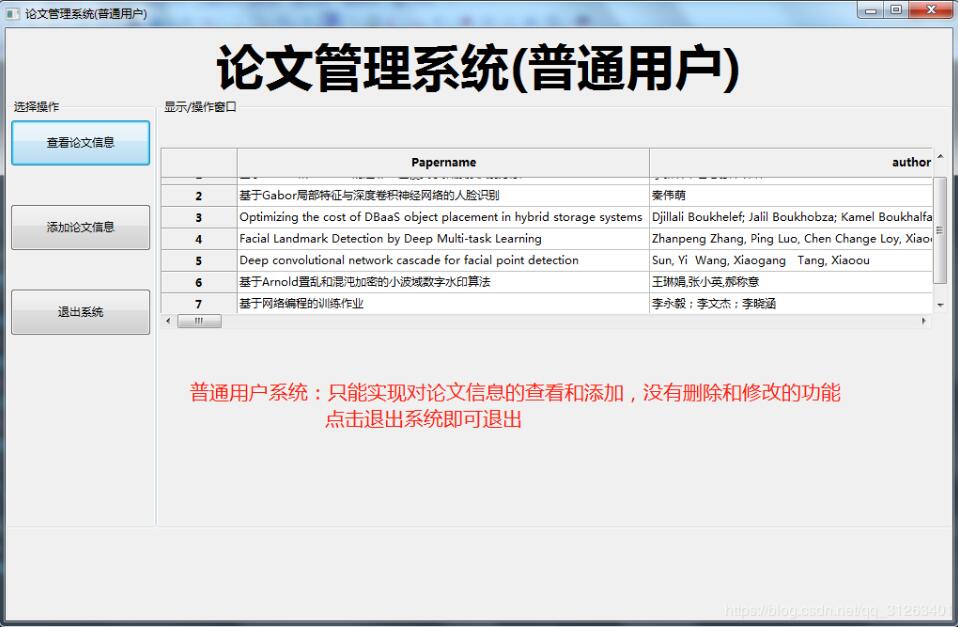

3.普通用户进入系统展示
3.代码展示
db.py
#导入pymysql模块
import pymysql
#创建数据库操作类
class Sql_operation(object):
'''
数据库操作
'''
#用构造函数实现数据库连接，并引入mydb参数，实现调用不同的数据库
def __init__(self,mydb):
#实例变量
self.mydb = mydb
#打开数据库连接
self.db = pymysql.connect(host = "localhost",user = "root",password = "123698745",db = self.mydb,charset = "utf8")
#创建游标对象
self.cursor = self.db.cursor()
#定义查看数据表信息函数，并引入table_field、table_name参数，实现查看不同数据表的建表语句
def FindAll(self,table_name):
#实例变量
self.table_name = table_name
#定义SQL语句
sql = "select * from %s"%(self.table_name)
try:
#执行数据库操作
self.cursor.execute(sql)
#处理结果
data = self.cursor.fetchall()
return data
except Exception as err:
print("SQL执行错误，原因：",err)
#定义添加表数据函数
def InsertUser(self,user_name,user_password):
id = 2
self.user_name = user_name
self.user_password = user_password
sql = "insert into users(id,user_name,user_password)values('%s','%s','%s')"%(int(id),self.user_name,self.user_password)
try:
#执行数据库操作
self.cursor.execute(sql)
#事务提交
self.db.commit()
except Exception as err:
#事务回滚
self.db.rollback()
print("SQL执行错误，原因：",err)
def Insert(self,stu_name,stu_gender,stu_age,stu_cid,stu_classid,stu_phone,stu_id):
#实例变量
self.stu_name = stu_name
self.stu_gender = stu_gender
self.stu_age = stu_age
self.stu_cid = stu_cid
self.stu_classid = stu_classid
self.stu_phone = stu_phone
self.stu_id = stu_id
#定义SQL语句
sql = "insert into Paper(Papername,author,date,keyword,abstract,journal,id) values('%s','%s','%s','%s','%s','%s','%d')"%(self.stu_name,self.stu_gender,self.stu_age,self.stu_cid,self.stu_classid,self.stu_phone,int(self.stu_id))
try:
#执行数据库操作
self.cursor.execute(sql)
#事务提交
self.db.commit()
except Exception as err:
#事务回滚
self.db.rollback()
print("SQL执行错误，原因：",err)
#定义删除表数据函数
def Del(self,stu_id):
#实例变量
self.stu_id = stu_id
#定义SQL语句
sql = "delete from Paper where id=%d"%(self.stu_id)
try:
#执行数据库操作
self.cursor.execute(sql)
#事务提交
self.db.commit()
except Exception as err:
#事务回滚
self.db.rollback()
print("SQL执行错误，原因：",err)
#定义修改表数据函数
def Update(self,id,amend_name,amend_value):
self.id = id
self.amend_name = amend_name
self.amend_value = amend_value
sql = "update Paper set %s=%s where id=%d"%(self.amend_name,self.amend_value,int(self.id))
try:
#执行数据库操作
self.cursor.execute(sql)
#事务提交
self.db.commit()
except Exception as err:
#事务回滚
self.db.rollback()
print("SQL执行错误，原因：",err)
#用析构函数实现数据库关闭
def __del__(self):
#关闭数据库连接
self.db.close()
main2.py
#导入wx模块
import wx
import wx.grid
from db import Sql_operation
import os
#import pymysql
class UserLogin(wx.Frame):
#初始化登录界面
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(UserLogin,self).__init__(*args, **kw)
#设置窗口屏幕居中
self.Center()
#创建窗口
self.pnl = wx.Panel(self)
#调用登录界面函数
self.LoginInterface()
def LoginInterface(self):
#创建垂直方向box布局管理器
vbox = wx.BoxSizer(wx.VERTICAL)
#################################################################################
#创建logo静态文本，设置字体属性
logo = wx.StaticText(self.pnl,label="论文管理系统")
font = logo.GetFont()
font.PointSize += 30
font = font.Bold()
logo.SetFont(font)
#添加logo静态文本到vbox布局管理器
vbox.Add(logo,proportion=0,flag=wx.FIXED_MINSIZE | wx.TOP | wx.CENTER,border=180)
#################################################################################
#创建静态框
sb_username = wx.StaticBox(self.pnl,label="用户名")
sb_password = wx.StaticBox(self.pnl,label="密 码")
#创建水平方向box布局管理器
hsbox_username = wx.StaticBoxSizer(sb_username,wx.HORIZONTAL)
hsbox_password = wx.StaticBoxSizer(sb_password,wx.HORIZONTAL)
#创建用户名、密码输入框
self.user_name = wx.TextCtrl(self.pnl,size=(210,25))
self.user_password = wx.TextCtrl(self.pnl,size=(210,25))
#添加用户名和密码输入框到hsbox布局管理器
hsbox_username.Add(self.user_name,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_password.Add(self.user_password,0,wx.EXPAND | wx.BOTTOM,5)
#将水平box添加到垂直box
vbox.Add(hsbox_username,proportion=0,flag=wx.CENTER)
vbox.Add(hsbox_password,proportion=0,flag=wx.CENTER)
#################################################################################
#创建水平方向box布局管理器
hbox = wx.BoxSizer()
#创建登录按钮、绑定事件处理
login_button = wx.Button(self.pnl,label="登录",size=(80,25))
regis_button = wx.Button(self.pnl,label="注册",size=(80,25))
login_button.Bind(wx.EVT_BUTTON,self.LoginButton)
regis_button.Bind(wx.EVT_BUTTON,self.RegisButton)
#添加登录按钮到hbox布局管理器
hbox.Add(login_button,0,flag=wx.EXPAND | wx.TOP,border=5)
hbox.Add(regis_button,0,flag=wx.EXPAND | wx.TOP,border=5)
#将水平box添加到垂直box
vbox.Add(hbox,proportion=0,flag=wx.CENTER)
#################################################################################
#设置面板的布局管理器vbox
self.pnl.SetSizer(vbox)
def RegisButton(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
user_name = self.user_name.GetValue()
user_password = self.user_password.GetValue()
np = op.InsertUser(user_name,user_password)
print("注册成功")
def LoginButton(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
#获取users表中的用户名和密码信息，返回为二维元组
np = op.FindAll("users")
#匹配标记
login_sign = 0
#匹配用户名和密码
for i in np:
if (i[1] == self.user_name.GetValue()) and (i[2] == self.user_password.GetValue() and i[0] == 1):
login_sign = 1
break
elif (i[1] == self.user_name.GetValue()) and (i[2] == self.user_password.GetValue() and i[0] == 2):
login_sign = 2
break
if login_sign == 0:
print("用户名或密码错误！")
elif (login_sign) == 1:
print("登录成功！")
operation = UserOperation(None,title="论文管理系统(管理员)",size=(1024,668))
operation.Show()
self.Close(True)
elif (login_sign) == 2:
os.system(r"python C:\Users\Administrator\Desktop\Holiday\Paper\main3.py")
class UserOperation(wx.Frame):
'''
操作界面
'''
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(UserOperation,self).__init__(*args, **kw)
#设置窗口屏幕居中
self.Center()
#创建窗口
self.pnl = wx.Panel(self)
#调用操作界面函数
self.OperationInterface()
def OperationInterface(self):
#创建垂直方向box布局管理器
self.vbox = wx.BoxSizer(wx.VERTICAL)
#################################################################################
#创建logo静态文本，设置字体属性
logo = wx.StaticText(self.pnl,label="论文管理系统(管理员)")
font = logo.GetFont()
font.PointSize += 30
font = font.Bold()
logo.SetFont(font)
#添加logo静态文本到vbox布局管理器
self.vbox.Add(logo,proportion=0,flag=wx.FIXED_MINSIZE | wx.TOP | wx.CENTER,border=5)
#################################################################################
#创建静态框
sb_button = wx.StaticBox(self.pnl,label="选择操作")
#创建垂直方向box布局管理器
vsbox_button = wx.StaticBoxSizer(sb_button,wx.VERTICAL)
#创建操作按钮、绑定事件处理
check_button = wx.Button(self.pnl,id=10,label="查看论文信息",size=(150,50))
add_button = wx.Button(self.pnl,id=11,label="添加论文信息",size=(150,50))
delete_button = wx.Button(self.pnl,id=12,label="删除论文信息",size=(150,50))
update_button = wx.Button(self.pnl,id=13,label="修改论文信息",size=(150,50))
quit_button = wx.Button(self.pnl,id=14,label="退出系统",size=(150,50))
self.Bind(wx.EVT_BUTTON,self.ClickButton,id=10,id2=14)
#添加操作按钮到vsbox布局管理器
vsbox_button.Add(check_button,0,wx.EXPAND | wx.BOTTOM,20)
vsbox_button.Add(add_button,0,wx.EXPAND | wx.BOTTOM,20)
vsbox_button.Add(delete_button,0,wx.EXPAND | wx.BOTTOM,20)
vsbox_button.Add(update_button,0,wx.EXPAND | wx.BOTTOM,20)
vsbox_button.Add(quit_button,0,wx.EXPAND | wx.BOTTOM,20)
#创建静态框
sb_show_operation = wx.StaticBox(self.pnl,label="显示/操作窗口",size=(800,1000))
#创建垂直方向box布局管理器
self.vsbox_show_operation = wx.StaticBoxSizer(sb_show_operation,wx.VERTICAL)
#创建水平方向box布局管理器
hbox = wx.BoxSizer()
hbox.Add(vsbox_button,0,wx.EXPAND | wx.BOTTOM,5)
hbox.Add(self.vsbox_show_operation,0,wx.EXPAND | wx.BOTTOM,5)
#将hbox添加到垂直box
self.vbox.Add(hbox,proportion=0,flag=wx.CENTER)
#################################################################################
self.pnl.SetSizer(self.vbox)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统(管理员)",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
print("添加操作！")
add_button = AddOp(None,title="论文管理系统(管理员)",size=(1024,668))
add_button.Show()
self.Close(True)
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
print("修改操作！")
del_button = UpdOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 14:
self.Close(True)
#继承UserOperation类，实现初始化操作界面
class InquireOp(UserOperation):
#class InquireOp(InquireOp):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(InquireOp,self).__init__(*args, **kw)
#创建论文列表信息网格
self.stu_grid = self.CreateGrid()
self.stu_grid.Bind(wx.grid.EVT_GRID_LABEL_LEFT_CLICK,self.OnLabelleftClick)
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(self.stu_grid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,30)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
pass
elif source_id == 11:
print("添加操作！")
add_button = AddOp(None,title="论文管理系统(管理员)",size=(1024,668))
add_button.Show()
self.Close(True)
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
print("修改操作！")
del_button = UpdOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 14:
self.Close(True)
def CreateGrid(self):
#连接student_db数据库
op = Sql_operation("student_db")
#获取Paper表中的论文信息，返回为二维元组
np = op.FindAll("Paper")
column_names = ("Papername","author","date","keyword","abstract","journal")
stu_grid = wx.grid.Grid(self.pnl)
stu_grid.CreateGrid(len(np),len(np[0])-1)
for row in range(len(np)):
stu_grid.SetRowLabelValue(row,str(np[row][0]))#确保网格序列号与数据库id保持一致
for col in range(1,len(np[row])):
stu_grid.SetColLabelValue(col-1,column_names[col-1])
stu_grid.SetCellValue(row,col-1,str(np[row][col]))
stu_grid.AutoSize()
return stu_grid
def OnLabelleftClick(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
#获取users表中的用户名和密码信息，返回为二维元组
np = op.FindAll("users")
print("RowIdx: {0}".format(event.GetRow()))
print("ColIdx: {0}".format(event.GetRow()))
print(np[event.GetRow()])
event.Skip()
#继承UserOperation类，实现初始化操作界面
class AddOp(UserOperation):
#class AddOp(InquireOp):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(AddOp,self).__init__(*args, **kw)
#创建添加论文息输入框、添加按钮
self.id = wx.TextCtrl(self.pnl,size = (210,25))
self.Papername = wx.TextCtrl(self.pnl,size = (210,25))
self.author = wx.TextCtrl(self.pnl,size = (210,25))
self.date = wx.TextCtrl(self.pnl,size = (210,25))
self.keyword = wx.TextCtrl(self.pnl,size = (210,25))
self.abstract = wx.TextCtrl(self.pnl,size = (210,25))
self.journal = wx.TextCtrl(self.pnl,size = (210,25))
self.add_affirm = wx.Button(self.pnl,label="添加",size=(80,25))
#为添加按钮组件绑定事件处理
self.add_affirm.Bind(wx.EVT_BUTTON,self.AddAffirm)
#################################################################################
#创建静态框
sb_id = wx.StaticBox(self.pnl,label="id")
sb_name = wx.StaticBox(self.pnl,label="Papername")
sb_gender = wx.StaticBox(self.pnl,label="author")
sb_age = wx.StaticBox(self.pnl,label="date")
sb_cid = wx.StaticBox(self.pnl,label="keyword")
sb_classid = wx.StaticBox(self.pnl,label="abstract")
sb_phone = wx.StaticBox(self.pnl,label="journal")
#创建水平方向box布局管理器
hsbox_id = wx.StaticBoxSizer(sb_id,wx.HORIZONTAL)
hsbox_name = wx.StaticBoxSizer(sb_name,wx.HORIZONTAL)
hsbox_gender = wx.StaticBoxSizer(sb_gender,wx.HORIZONTAL)
hsbox_age = wx.StaticBoxSizer(sb_age,wx.HORIZONTAL)
hsbox_cid = wx.StaticBoxSizer(sb_cid,wx.HORIZONTAL)
hsbox_classid = wx.StaticBoxSizer(sb_classid,wx.HORIZONTAL)
hsbox_phone = wx.StaticBoxSizer(sb_phone,wx.HORIZONTAL)
#添加到hsbox布局管理器
hsbox_id.Add(self.id,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_name.Add(self.Papername,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_gender.Add(self.author,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_age.Add(self.date,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_cid.Add(self.keyword,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_classid.Add(self.abstract,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_phone.Add(self.journal,0,wx.EXPAND | wx.BOTTOM,5)
#################################################################################
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(hsbox_id,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_name,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_gender,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_age,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_cid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_classid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_phone,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(self.add_affirm,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统(管理员)",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
pass
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
print("修改操作！")
del_button = UpdOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 14:
self.Close(True)
def AddAffirm(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
#向Paper表添加论文信息
Papername = self.Papername.GetValue()
print(Papername)
author = self.author.GetValue()
print(author)
date = self.date.GetValue()
print(date)
keyword = self.keyword.GetValue()
print(keyword)
abstract = self.abstract.GetValue()
print(abstract)
journal = self.journal.GetValue()
print(journal)
#np = op.Insert(Papername,author,date,keyword,abstract,journal)
id = self.id.GetValue()
print(id)
np = op.Insert(Papername,author,date,keyword,abstract,journal,id)
#继承InquireOp类，实现初始化操作界面
class DelOp(InquireOp):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(DelOp,self).__init__(*args, **kw)
#创建删除学员信息输入框、删除按钮
self.del_id = wx.TextCtrl(self.pnl,pos = (407,78),size = (210,25))
self.del_affirm = wx.Button(self.pnl,label="删除",pos=(625,78),size=(80,25))
#为删除按钮组件绑定事件处理
self.del_affirm.Bind(wx.EVT_BUTTON,self.DelAffirm)
#################################################################################
#创建静态框
sb_del = wx.StaticBox(self.pnl,label="请输入需要删除的论文的ID")
#创建水平方向box布局管理器
hsbox_del = wx.StaticBoxSizer(sb_del,wx.HORIZONTAL)
#添加到hsbox_name布局管理器
hsbox_del.Add(self.del_id,0,wx.EXPAND | wx.BOTTOM,5)
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(hsbox_del,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(self.del_affirm,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
print("添加操作！")
add_button = AddOp(None,title="论文管理系统",size=(1024,668))
add_button.Show()
self.Close(True)
elif source_id == 12:
pass
elif source_id == 13:
print("修改操作！")
del_button = UpdOp(None,title="论文管理系统",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 14:
self.Close(True)
def DelAffirm(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
del_id = self.del_id.GetValue()
print(del_id)
np = op.Del(int(del_id))
del_button = DelOp(None,title="论文管理系统",size=(1024,668))
del_button.Show()
self.Close(True)
class UpdOp(InquireOp):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(UpdOp,self).__init__(*args, **kw)
#创建添加论文息输入框、添加按钮
self.id = wx.TextCtrl(self.pnl,size = (210,25))
self.update_name = wx.TextCtrl(self.pnl,size = (210,25))
self.update_acc = wx.TextCtrl(self.pnl,size = (210,25))
self.add_affirm = wx.Button(self.pnl,label="确认更新",pos=(550,520),size=(80,25))
#为添加按钮组件绑定事件处理
self.add_affirm.Bind(wx.EVT_BUTTON,self.UpdateAffirm)
#################################################################################
#创建静态框
sb_id = wx.StaticBox(self.pnl,label="需要更新的论文id")
sb_name = wx.StaticBox(self.pnl,label="需要更新的内容标题")
sb_acc = wx.StaticBox(self.pnl,label="更新的内容")
#创建水平方向box布局管理器
hsbox_id = wx.StaticBoxSizer(sb_id,wx.HORIZONTAL)
hsbox_name = wx.StaticBoxSizer(sb_name,wx.HORIZONTAL)
hsbox_acc = wx.StaticBoxSizer(sb_acc,wx.HORIZONTAL)
#添加到hsbox布局管理器
hsbox_id.Add(self.id,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_name.Add(self.update_name,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_acc.Add(self.update_acc,0,wx.EXPAND | wx.BOTTOM,5)
#################################################################################
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(hsbox_id,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_name,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_acc,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统(管理员)",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
pass
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(管理员)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
pass
elif source_id == 14:
self.Close(True)
def UpdateAffirm(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
update_name = self.update_name.GetValue()
print(update_name)
update_acc = self.update_acc.GetValue()
print(update_acc)
id = self.id.GetValue()
print(id)
np = op.Update(id,update_name,update_acc)
if __name__ == '__main__':
app = wx.App()
login = UserLogin(None,title="论文管理系统(管理员)",size=(1024,668))
login.Show()
app.MainLoop()
main3.py
#导入mx模块
import wx
import wx.grid
from db import Sql_operation
class UserOperation(wx.Frame):
'''
操作界面
'''
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(UserOperation,self).__init__(*args, **kw)
#设置窗口屏幕居中
self.Center()
#创建窗口
self.pnl = wx.Panel(self)
#调用操作界面函数
self.OperationInterface()
def OperationInterface(self):
#创建垂直方向box布局管理器
self.vbox = wx.BoxSizer(wx.VERTICAL)
#################################################################################
#创建logo静态文本，设置字体属性
logo = wx.StaticText(self.pnl,label="论文管理系统(普通用户)")
font = logo.GetFont()
font.PointSize += 30
font = font.Bold()
logo.SetFont(font)
#添加logo静态文本到vbox布局管理器
self.vbox.Add(logo,proportion=0,flag=wx.FIXED_MINSIZE | wx.TOP | wx.CENTER,border=5)
#################################################################################
#创建静态框
sb_button = wx.StaticBox(self.pnl,label="选择操作")
#创建垂直方向box布局管理器
vsbox_button = wx.StaticBoxSizer(sb_button,wx.VERTICAL)
#创建操作按钮、绑定事件处理
check_button = wx.Button(self.pnl,id=10,label="查看论文信息",size=(150,50))
add_button = wx.Button(self.pnl,id=11,label="添加论文信息",size=(150,50))
#delete_button = wx.Button(self.pnl,id=12,label="删除论文信息",size=(150,50))
quit_button = wx.Button(self.pnl,id=13,label="退出系统",size=(150,50))
self.Bind(wx.EVT_BUTTON,self.ClickButton,id=10,id2=13)
#添加操作按钮到vsbox布局管理器
vsbox_button.Add(check_button,0,wx.EXPAND | wx.BOTTOM,40)
vsbox_button.Add(add_button,0,wx.EXPAND | wx.BOTTOM,40)
#vsbox_button.Add(delete_button,0,wx.EXPAND | wx.BOTTOM,40)
vsbox_button.Add(quit_button,0,wx.EXPAND | wx.BOTTOM,200)
#创建静态框
sb_show_operation = wx.StaticBox(self.pnl,label="显示/操作窗口",size=(800,800))
#创建垂直方向box布局管理器
self.vsbox_show_operation = wx.StaticBoxSizer(sb_show_operation,wx.VERTICAL)
#创建水平方向box布局管理器
hbox = wx.BoxSizer()
hbox.Add(vsbox_button,0,wx.EXPAND | wx.BOTTOM,5)
hbox.Add(self.vsbox_show_operation,0,wx.EXPAND | wx.BOTTOM,5)
#将hbox添加到垂直box
self.vbox.Add(hbox,proportion=0,flag=wx.CENTER)
#################################################################################
self.pnl.SetSizer(self.vbox)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统(普通用户)",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
print("添加操作！")
add_button = AddOp(None,title="论文管理系统(普通用户)",size=(1024,668))
add_button.Show()
self.Close(True)
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(普通用户)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
self.Close(True)
#继承UserOperation类，实现初始化操作界面
class InquireOp(UserOperation):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(InquireOp,self).__init__(*args, **kw)
#创建论文列表信息网格
self.stu_grid = self.CreateGrid()
self.stu_grid.Bind(wx.grid.EVT_GRID_LABEL_LEFT_CLICK,self.OnLabelleftClick)
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(self.stu_grid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,30)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
pass
elif source_id == 11:
print("添加操作！")
add_button = AddOp(None,title="论文管理系统(普通用户)",size=(1024,668))
add_button.Show()
self.Close(True)
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(普通用户)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
self.Close(True)
def CreateGrid(self):
#连接student_db数据库
op = Sql_operation("student_db")
#获取Paper表中的论文信息，返回为二维元组
np = op.FindAll("Paper")
column_names = ("Papername","author","date","keyword","abstract","journal")
stu_grid = wx.grid.Grid(self.pnl)
stu_grid.CreateGrid(len(np),len(np[0])-1)
for row in range(len(np)):
stu_grid.SetRowLabelValue(row,str(np[row][0]))#确保网格序列号与数据库id保持一致
for col in range(1,len(np[row])):
stu_grid.SetColLabelValue(col-1,column_names[col-1])
stu_grid.SetCellValue(row,col-1,str(np[row][col]))
stu_grid.AutoSize()
return stu_grid
def OnLabelleftClick(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
#获取users表中的用户名和密码信息，返回为二维元组
np = op.FindAll("users")
print("RowIdx: {0}".format(event.GetRow()))
print("ColIdx: {0}".format(event.GetRow()))
print(np[event.GetRow()])
event.Skip()
#继承UserOperation类，实现初始化操作界面
class AddOp(UserOperation):
def __init__(self,*args,**kw):
# ensure the parent's __init__ is called
super(AddOp,self).__init__(*args, **kw)
#创建添加论文息输入框、添加按钮
self.id = wx.TextCtrl(self.pnl,size = (210,25))
self.Papername = wx.TextCtrl(self.pnl,size = (210,25))
self.author = wx.TextCtrl(self.pnl,size = (210,25))
self.date = wx.TextCtrl(self.pnl,size = (210,25))
self.keyword = wx.TextCtrl(self.pnl,size = (210,25))
self.abstract = wx.TextCtrl(self.pnl,size = (210,25))
self.journal = wx.TextCtrl(self.pnl,size = (210,25))
self.add_affirm = wx.Button(self.pnl,label="添加",size=(80,25))
#为添加按钮组件绑定事件处理
self.add_affirm.Bind(wx.EVT_BUTTON,self.AddAffirm)
#################################################################################
#创建静态框
sb_id = wx.StaticBox(self.pnl,label="id")
sb_name = wx.StaticBox(self.pnl,label="Papername")
sb_gender = wx.StaticBox(self.pnl,label="author")
sb_age = wx.StaticBox(self.pnl,label="date")
sb_cid = wx.StaticBox(self.pnl,label="keyword")
sb_classid = wx.StaticBox(self.pnl,label="abstract")
sb_phone = wx.StaticBox(self.pnl,label="journal")
#创建水平方向box布局管理器
hsbox_id = wx.StaticBoxSizer(sb_id,wx.HORIZONTAL)
hsbox_name = wx.StaticBoxSizer(sb_name,wx.HORIZONTAL)
hsbox_gender = wx.StaticBoxSizer(sb_gender,wx.HORIZONTAL)
hsbox_age = wx.StaticBoxSizer(sb_age,wx.HORIZONTAL)
hsbox_cid = wx.StaticBoxSizer(sb_cid,wx.HORIZONTAL)
hsbox_classid = wx.StaticBoxSizer(sb_classid,wx.HORIZONTAL)
hsbox_phone = wx.StaticBoxSizer(sb_phone,wx.HORIZONTAL)
#添加到hsbox布局管理器
hsbox_id.Add(self.id,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_name.Add(self.Papername,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_gender.Add(self.author,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_age.Add(self.date,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_cid.Add(self.keyword,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_classid.Add(self.abstract,0,wx.EXPAND | wx.BOTTOM,5)
hsbox_phone.Add(self.journal,0,wx.EXPAND | wx.BOTTOM,5)
#################################################################################
#添加到vsbox_show_operation布局管理器
self.vsbox_show_operation.Add(hsbox_id,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_name,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_gender,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_age,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_cid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_classid,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(hsbox_phone,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
self.vsbox_show_operation.Add(self.add_affirm,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
def ClickButton(self,event):
source_id = event.GetId()
if source_id == 10:
print("查询操作！")
inquire_button = InquireOp(None,title="论文管理系统(普通用户)",size=(1024,668))
inquire_button.Show()
self.Close(True)
elif source_id == 11:
pass
elif source_id == 12:
print("删除操作！")
del_button = DelOp(None,title="论文管理系统(普通用户)",size=(1024,668))
del_button.Show()
self.Close(True)
elif source_id == 13:
self.Close(True)
def AddAffirm(self,event):
#连接student_db数据库
op = Sql_operation("student_db")
#向Paper表添加论文信息
Papername = self.Papername.GetValue()
print(Papername)
author = self.author.GetValue()
print(author)
date = self.date.GetValue()
print(date)
keyword = self.keyword.GetValue()
print(keyword)
abstract = self.abstract.GetValue()
print(abstract)
journal = self.journal.GetValue()
print(journal)
#np = op.Insert(Papername,author,date,keyword,abstract,journal)
id = self.id.GetValue()
print(id)
np = op.Insert(Papername,author,date,keyword,abstract,journal,id)
#继承InquireOp类，实现初始化操作界面
# class DelOp(InquireOp):
# def __init__(self,*args,**kw):
# # ensure the parent's __init__ is called
# super(DelOp,self).__init__(*args, **kw)
# #创建删除学员信息输入框、删除按钮
# self.del_id = wx.TextCtrl(self.pnl,pos = (407,78),size = (210,25))
# self.del_affirm = wx.Button(self.pnl,label="删除",pos=(625,78),size=(80,25))
# #为删除按钮组件绑定事件处理
# self.del_affirm.Bind(wx.EVT_BUTTON,self.DelAffirm)
# #################################################################################
# #创建静态框
# sb_del = wx.StaticBox(self.pnl,label="请输入需要删除的论文的ID")
# #创建水平方向box布局管理器
# hsbox_del = wx.StaticBoxSizer(sb_del,wx.HORIZONTAL)
# #添加到hsbox_name布局管理器
# hsbox_del.Add(self.del_id,0,wx.EXPAND | wx.BOTTOM,5)
# #添加到vsbox_show_operation布局管理器
# self.vsbox_show_operation.Add(hsbox_del,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
# self.vsbox_show_operation.Add(self.del_affirm,0,wx.CENTER | wx.TOP | wx.FIXED_MINSIZE,5)
# def ClickButton(self,event):
# source_id = event.GetId()
# if source_id == 10:
# print("查询操作！")
# inquire_button = InquireOp(None,title="论文管理系统",size=(1024,668))
# inquire_button.Show()
# self.Close(True)
# elif source_id == 11:
# print("添加操作！")
# add_button = AddOp(None,title="论文管理系统",size=(1024,668))
# add_button.Show()
# self.Close(True)
# elif source_id == 12:
# pass
# elif source_id == 13:
# self.Close(True)
# def DelAffirm(self,event):
# #连接student_db数据库
# op = Sql_operation("student_db")
# del_id = self.del_id.GetValue()
# print(del_id)
# np = op.Del(int(del_id))
# del_button = DelOp(None,title="论文管理系统",size=(1024,668))
# del_button.Show()
# self.Close(True)
if __name__ == '__main__':
app = wx.App()
operation = UserOperation(None,title="论文管理系统(普通用户)",size=(1024,668))
#login = UserLogin(None,title="论文管理系统",size=(1024,668))
operation.Show()
app.MainLoop()
4.总结
这个小系统其实还有不很多不完善的地方，可视化做的也不是很好，要是用H5来实现可视化的话会更好。
更多学习资料请关注专题《管理系统开发》。
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持【听图阁-专注于Python设计】。
