python实现外卖信息管理系统
本文为大家分享了python实现外卖信息管理系统的具体代码，供大家参考，具体内容如下
一、需求分析
需求分析包含如下：
1、问题描述
以外卖信息系统管理员身份登陆该系统，实现对店铺信息、派送员信息、客服人员信息、订单信息、配送信息等进行有条件查询以及信息的录入、修改、删除等功能。
2、系统功能描述
（1）信息录入：使用wxpython设计排版编写窗口界面，给出录入信息的接口，通过python语句实现与数据库的连接，从而向数据库中插入相应数据。
（2）信息修改：使用wxpython设计排版编写窗口界面，给出修改信息的接口，通过python语句实现与数据库的连接，从而修改数据库中相应数据。
（3）信息查询：在窗口界面中，通过响应的按钮触发，实现与数据库的连接查询，得到所有在线店铺信息。
（4）数据统计：在数据库中编写相应的存储过程，输入店铺名称即可select其所管理的派送员和客服人员。
3、系统功能模块图
二、概念结构设计

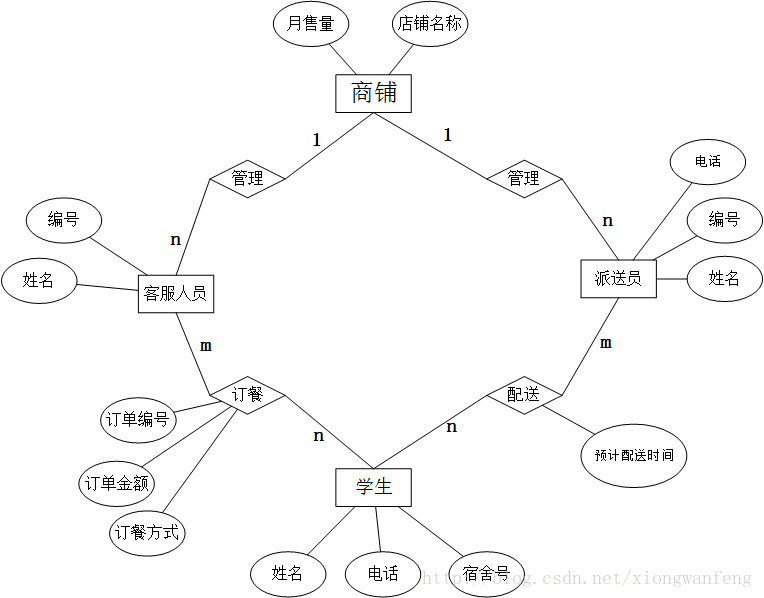

系统整体的E-R模型：
三、逻辑结构设计
本系统所用到的表结构以及其联系：
1、店铺基本信息foodshop表
主键：shop_name
2、客服基本信息server表
主键：server_id
外键：shopname_shop_name
参考表：shopname 参考属性：shop_name

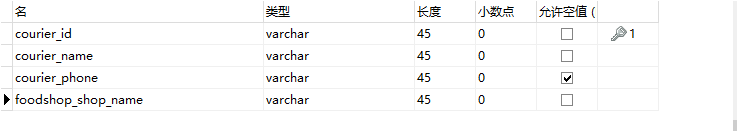

3、派送员基本信息courier表
主键：courier_id
外键：shopname_shop_name
参考表：shopname 参考属性：shop_name

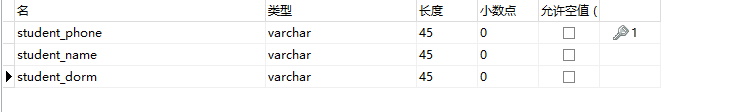

4、学生基本信息student表
主键：student_phone

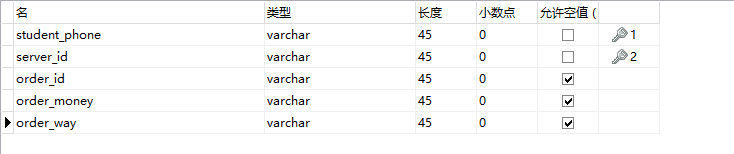

5、订单基本信息book表
主键：（student_phone，server_id）
外键：student_phone，参考表student，参考属性student_phone
外键：server_id，参考表server，参考属性server_id

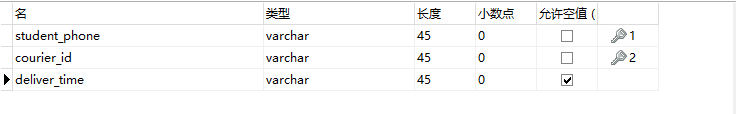

6、配送基本信息delivery表
主键：（student_phone，courier_id）
外键：student_phone，参考表student，参考属性student_phone
外键：courier_id，参考表courier，参考属性courier_id
四、具体实现
登陆界面：
附上源代码：
# coding:utf8
###########################################################################
## Python code generated with wxFormBuilder (version Jun 17 2015)
## http://www.wxformbuilder.org/
##
## PLEASE DO "NOT" EDIT THIS FILE!
###########################################################################
import wx #导入wxpyhton，pyhton自带的GUI库
#import wx.xrc
import pymysql #用于操作数据库
import sys
reload(sys)
sys.setdefaultencoding('utf8')
###########################################################################
## Class MyFrame1
###########################################################################
#建一个窗口类MyFrame1继承wx.Frame
class MyFrame1(wx.Frame):
def __init__(self, parent):
#Wx.Frame (parent, id, title, pos, size, style, name)
wx.Frame.__init__(self, parent, id=wx.ID_ANY, title=u"外卖信息管理系统", pos=wx.DefaultPosition, size=wx.Size(610, 400),
style=wx.DEFAULT_FRAME_STYLE | wx.TAB_TRAVERSAL)
self.Center() #居中显示
# 小构件，如按钮，文本框等被放置在面板窗口。 wx.Panel类通常是被放在一个wxFrame对象中。这个类也继承自wxWindow类。
self.m_panel1 = wx.Panel(self)
# 标签，一行或多行的只读文本，Wx.StaticText(parent, id, label, position, size, style)
self.m_staticText1 = wx.StaticText(self.m_panel1, wx.ID_ANY, u"关于店铺：", (20, 20))
self.m_button1 = wx.Button(self.m_panel1, wx.ID_ANY, u"店铺信息", (130, 20), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button2 = wx.Button(self.m_panel1, wx.ID_ANY, u"店铺上架", (250, 20), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button3 = wx.Button(self.m_panel1, wx.ID_ANY, u"店铺下架", (370, 20), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_staticText2 = wx.StaticText(self.m_panel1, wx.ID_ANY, u"关于派送员：", (20, 90))
self.m_button4 = wx.Button(self.m_panel1, wx.ID_ANY, u"派送员信息", (130, 90), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button5 = wx.Button(self.m_panel1, wx.ID_ANY, u"聘请派送员", (250, 90), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button6 = wx.Button(self.m_panel1, wx.ID_ANY, u"解雇派送员", (370, 90), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_staticText3 = wx.StaticText(self.m_panel1, wx.ID_ANY, u"关于客服人员：", (20, 160))
self.m_button7 = wx.Button(self.m_panel1, wx.ID_ANY, u"客服人员信息", (130, 160), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button8 = wx.Button(self.m_panel1, wx.ID_ANY, u"聘请客服人员", (250, 160), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button9 = wx.Button(self.m_panel1, wx.ID_ANY, u"解雇客服人员", (370, 160), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_staticText4 = wx.StaticText(self.m_panel1, wx.ID_ANY, u"关于订单：", (20, 230))
self.m_button10 = wx.Button(self.m_panel1, wx.ID_ANY, u"订单信息", (130, 230), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button11 = wx.Button(self.m_panel1, wx.ID_ANY, u"学生订餐", (250, 230), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button12 = wx.Button(self.m_panel1, wx.ID_ANY, u"取消订单", (370, 230), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button13 = wx.Button(self.m_panel1, wx.ID_ANY, u"修改订单", (490, 230), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_staticText5 = wx.StaticText(self.m_panel1, wx.ID_ANY, u"关于物流：", (20, 300))
self.m_button14 = wx.Button(self.m_panel1, wx.ID_ANY, u"配送信息", (130, 300), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button15 = wx.Button(self.m_panel1, wx.ID_ANY, u"安排配送", (250, 300), wx.DefaultSize,
style=wx.BORDER_MASK)
self.m_button16 = wx.Button(self.m_panel1, wx.ID_ANY, u"取消配送", (370, 300), wx.DefaultSize,
style=wx.BORDER_MASK)
#按钮绑定对话框的弹出
#在创建应用程序时，Bind函数可以将按钮的动作与特定的函数绑定，当按钮上有动作时，这个函数就会启动，从而处理响应的事件。
#个Button被单击发生了EVT_BUTTON事件
self.m_button1.Bind(wx.EVT_BUTTON, MyDialog11(None).OnClick)
self.m_button2.Bind(wx.EVT_BUTTON, MyDialog12(None).OnClick)
self.m_button3.Bind(wx.EVT_BUTTON, MyDialog13(None).OnClick)
self.m_button4.Bind(wx.EVT_BUTTON, MyDialog21(None).OnClick)
self.m_button5.Bind(wx.EVT_BUTTON, MyDialog22(None).OnClick)
self.m_button6.Bind(wx.EVT_BUTTON, MyDialog23(None).OnClick)
self.m_button7.Bind(wx.EVT_BUTTON, MyDialog31(None).OnClick)
self.m_button8.Bind(wx.EVT_BUTTON, MyDialog32(None).OnClick)
self.m_button9.Bind(wx.EVT_BUTTON, MyDialog33(None).OnClick)
self.m_button10.Bind(wx.EVT_BUTTON, MyDialog41(None).OnClick)
self.m_button11.Bind(wx.EVT_BUTTON, MyDialog42(None).OnClick)
self.m_button12.Bind(wx.EVT_BUTTON, MyDialog43(None).OnClick)
self.m_button13.Bind(wx.EVT_BUTTON, MyDialog44(None).OnClick)
self.m_button14.Bind(wx.EVT_BUTTON, MyDialog51(None).OnClick)
self.m_button15.Bind(wx.EVT_BUTTON, MyDialog52(None).OnClick)
self.m_button16.Bind(wx.EVT_BUTTON, MyDialog53(None).OnClick)
#设置按钮的背景颜色
self.m_button1.SetBackgroundColour('#0a74f7')
self.m_button1.SetForegroundColour('white')
self.m_button2.SetBackgroundColour('#0a74f7')
self.m_button2.SetForegroundColour('white')
self.m_button3.SetBackgroundColour('#0a74f7')
self.m_button3.SetForegroundColour('white')
self.m_button4.SetBackgroundColour('#238E23')
self.m_button4.SetForegroundColour('white')
self.m_button5.SetBackgroundColour('#238E23')
self.m_button5.SetForegroundColour('white')
self.m_button6.SetBackgroundColour('#238E23')
self.m_button6.SetForegroundColour('white')
self.m_button7.SetBackgroundColour('#6F4242')
self.m_button7.SetForegroundColour('white')
self.m_button8.SetBackgroundColour('#6F4242')
self.m_button8.SetForegroundColour('white')
self.m_button9.SetBackgroundColour('#6F4242')
self.m_button9.SetForegroundColour('white')
self.m_button10.SetBackgroundColour('#8E6B23')
self.m_button10.SetForegroundColour('white')
self.m_button11.SetBackgroundColour('#8E6B23')
self.m_button11.SetForegroundColour('white')
self.m_button12.SetBackgroundColour('#8E6B23')
self.m_button12.SetForegroundColour('white')
self.m_button13.SetBackgroundColour('#8E6B23')
self.m_button13.SetForegroundColour('white')
self.m_button14.SetBackgroundColour('#545454')
self.m_button14.SetForegroundColour('white')
self.m_button15.SetBackgroundColour('#545454')
self.m_button15.SetForegroundColour('white')
self.m_button16.SetBackgroundColour('#545454')
self.m_button16.SetForegroundColour('white')
self.m_panel1.SetBackgroundColour('white') #设置面板的背景颜色
###########################################################################
## Class MyDialog11
###########################################################################
#一个对话框的类继承wx.Dialog
class MyDialog11(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"店铺信息", pos=wx.DefaultPosition, size=wx.Size(302, 362),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "店铺名称", (20, 20))
wx.StaticText(self.panel, -1, "月销量", (80, 20))
def OnClick(self, event):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
try:
sql = "select * from foodshop"
cursor.execute(sql)
rs = cursor.fetchall()
h = 30
for row in rs:
h = h + 20
shop_name = row[0]
salenum = row[1] #注意数据库中的数据为数字 int 类型时的读取方式 id = '%d' % i[0]
wx.StaticText(self.panel, -1, shop_name, (20, h))
wx.StaticText(self.panel, -1, salenum, (80, h))
except:
conn.rollback()
finally:
cursor.close()
conn.close()
self.ShowModal()
###########################################################################
## Class MyDialog12
###########################################################################
class MyDialog12(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"店铺上架", pos=wx.DefaultPosition, size=wx.Size(302, 250),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入店铺名称：", (20, 20))
# 可编辑文本框的创建使用wx.TextCtrl，默认情况下，文本框只能编辑一行文字（无论文字多长均不换行）
self.t1 = wx.TextCtrl(self.panel, pos=(130, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入月销量：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(130, 80), size=(120, 25))
def OnClick(self, e):
dialog12 = MyDialog12(None)
btn = wx.Button(parent=dialog12.panel, label="上架", pos=(20, 150), size=(100, 45), style=wx.BORDER_MASK)
btn.Bind(wx.EVT_BUTTON, dialog12.insert)
dialog12.ShowModal()
def insert(self, event):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
shop_name = self.t1.GetValue().encode('utf8') #注意GetValue()获取的是unicode编码，
salenum = self.t2.GetValue().encode('utf8') #你使用的#coding=utf8，那就对获取的数据.encode('utf8')重新编码
data = (shop_name, salenum)
try:
sql = "insert into foodshop values (%s,%s)"
cursor.execute(sql, data)
conn.commit() #提交给后台数据库
dial = wx.MessageDialog(None, '成功上架!', '结果', wx.YES_NO) # 创建一个带按钮的消息框, 语法是(self, 框中内容, 框标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog13
###########################################################################

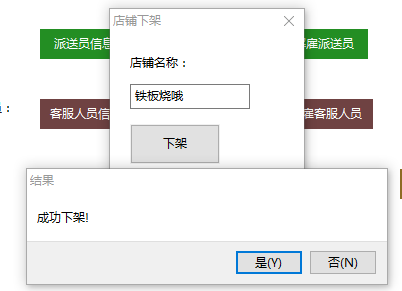

class MyDialog13(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"店铺下架", pos=wx.DefaultPosition, size=wx.Size(200, 200),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "店铺名称：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(20, 50), size=(120, 25))
def OnClick(self, e):
dialog13 = MyDialog13(None)
btn = wx.Button(parent=dialog13.panel, label="下架", pos=(20, 90), size=(90, 40))
btn.Bind(wx.EVT_BUTTON, dialog13.delete)
dialog13.ShowModal()
def delete(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
shop_name = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码
try:
sql = "delete from foodshop where shop_name=%s"
cursor.execute(sql, shop_name)
conn.commit()
dial = wx.MessageDialog(None, '成功下架!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog21
###########################################################################

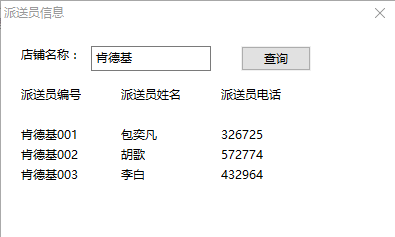

class MyDialog21(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"派送员信息", pos=wx.DefaultPosition, size=wx.Size(400, 415),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "店铺名称：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(90, 20), size=(120, 25))
#btn = wx.Button(parent=self.panel, label="查询", pos=(240, 20), size=(70, 25))
#btn.Bind(wx.EVT_BUTTON, self.find)
wx.StaticText(self.panel, -1, "派送员编号", (20, 60))
wx.StaticText(self.panel, -1, "派送员姓名", (120, 60))
wx.StaticText(self.panel, -1, "派送员电话", (220, 60))
def OnClick(self, event):
dialog21 = MyDialog21(None)
btn = wx.Button(parent=dialog21.panel, label="查询", pos=(240, 20), size=(70, 25))
btn.Bind(wx.EVT_BUTTON, dialog21.find)
dialog21.ShowModal()
def find(self, event):
'''
if self.t1.GetValue() == '肯德基':
wx.StaticText(self.panel, -1, '派送员编号', (20, h))
wx.StaticText(self.panel, -1, '派送员姓名', (120, h))
'''
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
try:
sql = "select * from courier"
cursor.execute(sql)
rs = cursor.fetchall()
h = 80
for row in rs:
if row[3] == self.t1.GetValue():
h = h + 20
courier_id = row[0]
courier_name = row[1]
courier_phone = row[2]
wx.StaticText(self.panel, -1, courier_id, (20, h))
wx.StaticText(self.panel, -1, courier_name, (120, h))
wx.StaticText(self.panel, -1, courier_phone, (220, h))
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog22
###########################################################################
class MyDialog22(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"聘请派送员", pos=wx.DefaultPosition, size=wx.Size(400, 350),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入店铺名称：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(140, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入派送员编号：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(140, 80), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入派送员姓名：", (20, 140))
self.t3 = wx.TextCtrl(self.panel, pos=(140, 140), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入派送员电话：", (20, 200))
self.t4 = wx.TextCtrl(self.panel, pos=(140, 200), size=(120, 25))
def OnClick(self, e):
dialog22 = MyDialog22(None)
btn = wx.Button(parent=dialog22.panel, label="聘请", pos=(20, 250), size=(100, 45))
btn.Bind(wx.EVT_BUTTON, dialog22.insert)
dialog22.ShowModal()
def insert(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
shop_name = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码，
courier_id = self.t2.GetValue().encode('utf8') # 你使用的#coding=utf8，那就对获取的数据.encode('utf8')
courier_name = self.t3.GetValue().encode('utf8')
courier_phone = self.t4.GetValue().encode('utf8')
data = (courier_id, courier_name, courier_phone, shop_name)
try:
sql = "insert into courier values (%s,%s,%s,%s)"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功聘请派送员!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog23
###########################################################################
class MyDialog23(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"解雇派送员", pos=wx.DefaultPosition, size=wx.Size(200, 200),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "派送员编号：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(20, 50), size=(120, 25))
def OnClick(self, e):
dialog23 = MyDialog23(None)
btn = wx.Button(parent=dialog23.panel, label="解雇", pos=(20, 90), size=(90, 40))
btn.Bind(wx.EVT_BUTTON, dialog23.delete)
dialog23.ShowModal()
def delete(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
courier_id = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码
try:
sql = "delete from courier where courier_id=%s"
cursor.execute(sql, courier_id)
conn.commit()
dial = wx.MessageDialog(None, '成功解雇派送员!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog31
###########################################################################
class MyDialog31(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"客服人员信息", pos=wx.DefaultPosition, size=wx.Size(400, 401),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "店铺名称：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(90, 20), size=(120, 25))
# btn = wx.Button(parent=self.panel, label="查询", pos=(240, 20), size=(70, 25))
# btn.Bind(wx.EVT_BUTTON, self.find)
wx.StaticText(self.panel, -1, "客服人员编号", (20, 60))
wx.StaticText(self.panel, -1, "客服人员姓名", (120, 60))
def OnClick(self, e):
dialog31 = MyDialog31(None)
btn = wx.Button(parent=dialog31.panel, label="查询", pos=(240, 20), size=(70, 25))
btn.Bind(wx.EVT_BUTTON, dialog31.find)
dialog31.ShowModal()
def find(self, event):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
try:
sql = "select * from server"
cursor.execute(sql)
rs = cursor.fetchall()
h = 80
for row in rs:
if row[2] == self.t1.GetValue():
h = h + 20
server_id = row[0]
server_name = row[1]
wx.StaticText(self.panel, -1, server_id, (20, h))
wx.StaticText(self.panel, -1, server_name, (120, h))
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog32
###########################################################################
class MyDialog32(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"聘请客服人员", pos=wx.DefaultPosition, size=wx.Size(400, 300),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入店铺名称：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(160, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入客服人员编号：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(160, 80), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入客服人员姓名：", (20, 140))
self.t3 = wx.TextCtrl(self.panel, pos=(160, 140), size=(120, 25))
def OnClick(self, e):
dialog32 = MyDialog32(None)
btn = wx.Button(parent=dialog32.panel, label="聘请", pos=(20, 200), size=(100, 45))
btn.Bind(wx.EVT_BUTTON, dialog32.insert)
dialog32.ShowModal()
def insert(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
shop_name = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码，
server_id = self.t2.GetValue().encode('utf8') # 你使用的#coding=utf8，那就对获取的数据.encode('utf8')
server_name = self.t3.GetValue().encode('utf8')
data = (server_id, server_name, shop_name)
try:
sql = "insert into server values(%s,%s,%s)"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功聘请客服!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog33
###########################################################################
class MyDialog33(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"解雇客服人员", pos=wx.DefaultPosition, size=wx.Size(200, 200),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "客服人员编号：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(20, 50), size=(120, 25))
def OnClick(self, e):
dialog33 = MyDialog33(None)
btn = wx.Button(parent=dialog33.panel, label="解雇", pos=(20, 90), size=(90, 40))
btn.Bind(wx.EVT_BUTTON, dialog33.delete)
dialog33.ShowModal()
def delete(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
server_id = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码
try:
sql = "delete from server where server_id=%s"
cursor.execute(sql, server_id)
conn.commit()
dial = wx.MessageDialog(None, '成功解雇客服!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog41
###########################################################################

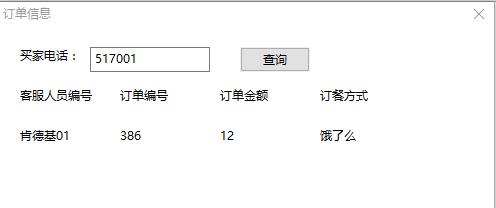

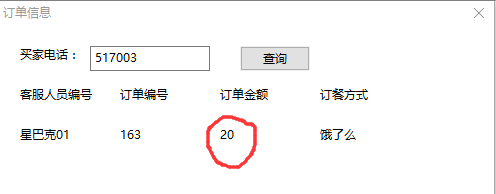

class MyDialog41(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"订单信息", pos=wx.DefaultPosition, size=wx.Size(500, 400),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "买家电话：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(90, 20), size=(120, 25))
# btn = wx.Button(parent=self.panel, label="查询", pos=(240, 20), size=(70, 25))
# btn.Bind(wx.EVT_BUTTON, self.find)
wx.StaticText(self.panel, -1, "客服人员编号", (20, 60))
wx.StaticText(self.panel, -1, "订单编号", (120, 60))
wx.StaticText(self.panel, -1, "订单金额", (220, 60))
wx.StaticText(self.panel, -1, "订餐方式", (320, 60))
def OnClick(self, e):
dialog41 = MyDialog41(None)
btn = wx.Button(parent=dialog41.panel, label="查询", pos=(240, 20), size=(70, 25))
btn.Bind(wx.EVT_BUTTON, dialog41.find)
dialog41.ShowModal()
def find(self, event):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
try:
sql = "select * from book"
cursor.execute(sql)
rs = cursor.fetchall()
h = 80
for row in rs:
if row[0] == self.t1.GetValue():
h = h + 20
server_id = row[1]
order_id = row[2]
order_money = row[3]
order_way = row[4]
wx.StaticText(self.panel, -1, server_id, (20, h))
wx.StaticText(self.panel, -1, order_id, (120, h))
wx.StaticText(self.panel, -1, order_money, (220, h))
wx.StaticText(self.panel, -1, order_way, (320, h))
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog42
###########################################################################

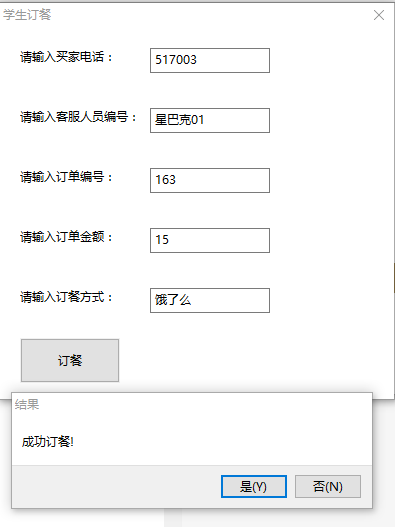

class MyDialog42(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"学生订餐", pos=wx.DefaultPosition, size=wx.Size(400, 400),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入买家电话：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(150, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入客服人员编号：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(150, 80), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入订单编号：", (20, 140))
self.t3 = wx.TextCtrl(self.panel, pos=(150, 140), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入订单金额：", (20, 200))
self.t4 = wx.TextCtrl(self.panel, pos=(150, 200), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入订餐方式：", (20, 260))
self.t5 = wx.TextCtrl(self.panel, pos=(150, 260), size=(120, 25))
def OnClick(self, e):
dialog42 = MyDialog42(None)
btn = wx.Button(parent=dialog42.panel, label="订餐", pos=(20, 310), size=(100, 45))
btn.Bind(wx.EVT_BUTTON, dialog42.insert)
dialog42.ShowModal()
def insert(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
student_phone = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码，
server_id = self.t2.GetValue().encode('utf8') # 你使用的#coding=utf8，那就对获取的数据.encode('utf8')
order_id = self.t3.GetValue().encode('utf8')
order_money = self.t4.GetValue().encode('utf8')
order_way = self.t5.GetValue().encode('utf8')
data = (student_phone, server_id, order_id, order_money, order_way)
try:
sql = "insert into book values(%s,%s,%s,%s,%s)"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功订餐!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog43
###########################################################################
class MyDialog43(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"删除订单", pos=wx.DefaultPosition, size=wx.Size(300, 300),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "客服人员编号：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(20, 50), size=(120, 25))
wx.StaticText(self.panel, -1, "买家电话：", (20, 90))
self.t2 = wx.TextCtrl(self.panel, pos=(20, 120), size=(120, 25))
def OnClick(self, e):
dialog43 = MyDialog43(None)
btn = wx.Button(parent=dialog43.panel, label="取消订单", pos=(20, 170), size=(90, 40))
btn.Bind(wx.EVT_BUTTON, dialog43.delete)
dialog43.ShowModal()
def delete(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
server_id = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码
student_phone = self.t2.GetValue().encode('utf8')
data = (server_id, student_phone)
try:
sql = "delete from book where server_id=%s and student_phone=%s"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功删除订单!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog44
###########################################################################

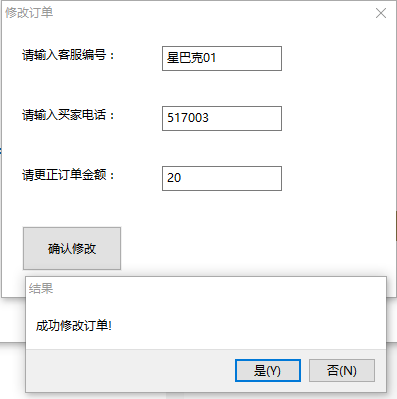

class MyDialog44(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"修改订单", pos=wx.DefaultPosition, size=wx.Size(400, 300),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入客服编号：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(160, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入买家电话：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(160, 80), size=(120, 25))
wx.StaticText(self.panel, -1, "请更正订单金额：", (20, 140))
self.t3 = wx.TextCtrl(self.panel, pos=(160, 140), size=(120, 25))
def OnClick(self, e):
dialog44 = MyDialog44(None)
btn = wx.Button(parent=dialog44.panel, label="确认修改", pos=(20, 200), size=(100, 45))
btn.Bind(wx.EVT_BUTTON, dialog44.change)
dialog44.ShowModal()
def change(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
server_id = self.t1.GetValue().encode('utf8')
student_phone = self.t2.GetValue().encode('utf8')
order_money = self.t3.GetValue().encode('utf8')
data = (order_money, server_id, student_phone)
try:
sql = "update book set order_money=%s where server_id=%s and student_phone=%s"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功修改订单!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog51
###########################################################################
class MyDialog51(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"配送信息", pos=wx.DefaultPosition, size=wx.Size(502, 362),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "买家电话：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(90, 20), size=(120, 25))
# btn = wx.Button(parent=self.panel, label="查询", pos=(240, 20), size=(70, 25))
# btn.Bind(wx.EVT_BUTTON, self.find)
wx.StaticText(self.panel, -1, "派送员编号", (20, 60))
wx.StaticText(self.panel, -1, "预计派送时间", (120, 60))
def OnClick(self, e):
dialog51 = MyDialog51(None)
btn = wx.Button(parent=dialog51.panel, label="查询", pos=(240, 20), size=(70, 25))
btn.Bind(wx.EVT_BUTTON, dialog51.find)
dialog51.ShowModal()
def find(self, event):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
try:
sql = "select * from delivery"
cursor.execute(sql)
rs = cursor.fetchall()
h = 80
for row in rs:
if row[0] == self.t1.GetValue():
h = h + 20
courier_id = row[1]
deliver_time = row[2]
wx.StaticText(self.panel, -1, courier_id, (20, h))
wx.StaticText(self.panel, -1, deliver_time, (120, h))
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog52
###########################################################################
class MyDialog52(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"安排配送", pos=wx.DefaultPosition, size=wx.Size(400, 300),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "请输入买家电话：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(160, 20), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入派送员编号：", (20, 80))
self.t2 = wx.TextCtrl(self.panel, pos=(160, 80), size=(120, 25))
wx.StaticText(self.panel, -1, "请输入预计派送时间：", (20, 140))
self.t3 = wx.TextCtrl(self.panel, pos=(160, 140), size=(120, 25))
def OnClick(self, e):
dialog52 = MyDialog52(None)
btn = wx.Button(parent=dialog52.panel, label="配送", pos=(20, 200), size=(100, 45))
btn.Bind(wx.EVT_BUTTON, dialog52.insert)
dialog52.ShowModal()
def insert(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
student_phone = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码，
courier_id = self.t2.GetValue().encode('utf8') # 你使用的#coding=utf8，那就对获取的数据.encode('utf8')
deliver_time = self.t3.GetValue().encode('utf8')
data = (student_phone, courier_id, deliver_time)
try:
sql = "insert into delivery values(%s,%s,%s)"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功安排派送!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
###########################################################################
## Class MyDialog53
###########################################################################
class MyDialog53(wx.Dialog):
def __init__(self, parent):
wx.Dialog.__init__(self, parent, id=wx.ID_ANY, title=u"取消配送", pos=wx.DefaultPosition, size=wx.Size(300, 300),
style=wx.DEFAULT_DIALOG_STYLE)
self.Center()
self.panel = wx.Panel(self)
self.panel.SetBackgroundColour('white')
wx.StaticText(self.panel, -1, "派送员编号：", (20, 20))
self.t1 = wx.TextCtrl(self.panel, pos=(20, 50), size=(120, 25))
wx.StaticText(self.panel, -1, "买家电话：", (20, 90))
self.t2 = wx.TextCtrl(self.panel, pos=(20, 120), size=(120, 25))
def OnClick(self, e):
dialog53 = MyDialog53(None)
btn = wx.Button(parent=dialog53.panel, label="取消配送", pos=(20, 170), size=(90, 40))
btn.Bind(wx.EVT_BUTTON, dialog53.delete)
dialog53.ShowModal()
def delete(self, e):
conn = pymysql.connect(host='127.0.0.1', port=3306, user='root', passwd='123', db='project', charset='utf8')
cursor = conn.cursor()
courier_id = self.t1.GetValue().encode('utf8') # 注意GetValue()获取的是unicode编码
student_phone = self.t2.GetValue().encode('utf8')
data = (courier_id, student_phone)
try:
sql = "delete from delivery where courier_id=%s and student_phone=%s"
cursor.execute(sql, data)
conn.commit()
dial = wx.MessageDialog(None, '成功取消配送!', '结果', wx.YES_NO) # 创建一个带按钮的对话框, 语法是(self, 内容, 标题, ID)
dial.ShowModal() # 显示对话框
except:
conn.rollback()
finally:
cursor.close()
conn.close()
if __name__ == "__main__":
app = wx.App()
MyFrame1(None).Show()
app.MainLoop()
程序演示：
（1）店铺信息
（2）店铺上架
（3）店铺下架
（4）派送员信息
（5）订单信息
（6）买家订餐
（7）修改订单
查看订单信息确认已经修改
至此python借助pymysql操作Mysql数据库的增、删、改、查功能演示完毕，剩下功能不一一截图，原理类似。
五、总结
通过本次课程设计，我对本学期所学的“数据库”和python内容有了更深一层的理解和学习。对数据库的认识不再仅仅停留在课本的理论知识上，能够更加清楚的理解其后台的操作流程。对python的应用不再局限于编写简单小程序，而是做到了与数据库进行连接，通过wxpython前台窗口，对数据库传入相应的sql语句，从而实现数据库的插入、修改、增加、删除等操作，实现sql语句的前台明了化。在设计E-R图时，采用了Navicat for mysql这一针对mysql的可视化工具，使得表与表之间的关系得以清晰的呈现，这次课程设计使我获益匪浅，在巩固与拓展知识的同时，还学会了许多工具的使用，这对以后的开发提供了宝贵的经验和基石。
更多学习资料请关注专题《管理系统开发》。
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持【听图阁-专注于Python设计】。
