PHP生成条形码大揭秘

yipeiwu_com5年前PHP代码库

1.什么是条形码?

百度百科定义:条形码(barcode)是将宽度不等的多个黑条和空白,按照一定的编码规则排列,用以表达一组信息的图形标识符。常见的条形码是由反射率相差很大的黑条(简称条)和白条(简称空)排成平行线的图案。在日常生活中,条形码可以标出物品的生产国、制造厂家、商品名称、生产日期、图书分类号、邮件地点起止、类别、日期等许多信息。条形码编码格式具体请参考

打印出来的优惠券,商家需要用验证器读取条形码,来获得其有效性。

2.如何生成条形码?

首先找到强大的开源资料,在barcode官网下载barcodegen.1d-php5.v5.0.1.zip版本,然后解压文件放到你的Apache服务器的根目录下

2.1文件结构:

2.2具体解析

(1)class文件夹是已封装好生成条形码的类,只需要调用即可。

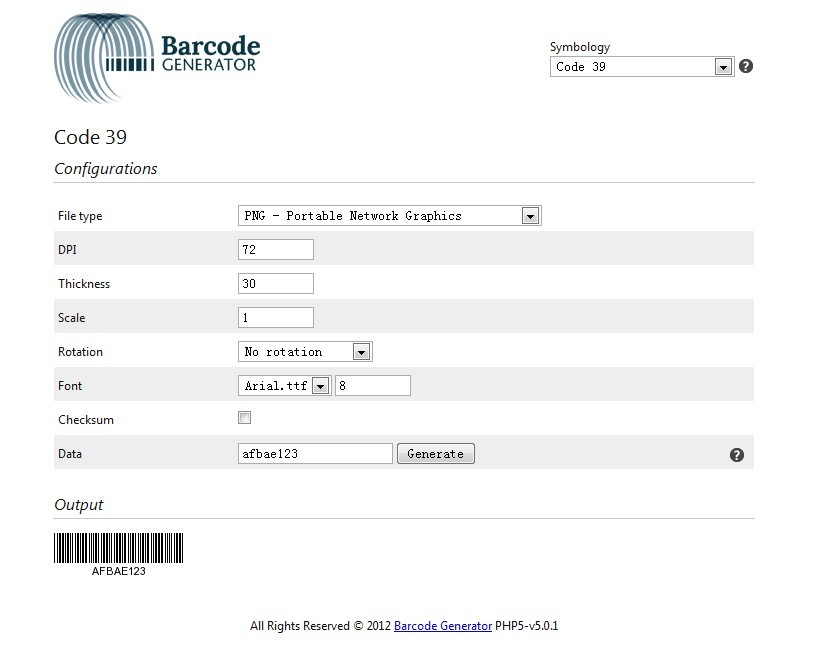

(2)index.php是一个可选择条件生成条形码的功能,是主程序的入口,而html文件夹是提供的被引用的代码,code39.php指的是指向默认的编码格式。

<?php
header('Location: html/code39.php');
?>

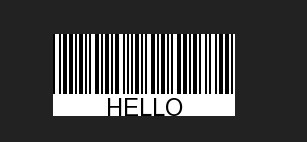

(3)test.php是另外一个例子,通过代码直接生成HELLO条形码。

View Code

<?php
// 引用class文件夹对应的类
require_once('class/BCGFontFile.php');
require_once('class/BCGColor.php');
require_once('class/BCGDrawing.php');

// 条形码的编码格式
require_once('class/BCGcode39.barcode.php');

// 加载字体大小
$font = new BCGFontFile('./class/font/Arial.ttf', 18);

//颜色条形码
$color_black = new BCGColor(0, 0, 0);
$color_white = new BCGColor(255, 255, 255);

$drawException = null;
try {
  $code = new BCGcode39();
  $code->setScale(2);
  $code->setThickness(30); // 条形码的厚度
  $code->setForegroundColor($color_black); // 条形码颜色
  $code->setBackgroundColor($color_white); // 空白间隙颜色
  $code->setFont($font); //
  $code->parse('HELLO'); // 条形码需要的数据内容
} catch(Exception $exception) {
  $drawException = $exception;
}

//根据以上条件绘制条形码
$drawing = new BCGDrawing('', $color_white);
if($drawException) {
  $drawing->drawException($drawException);
} else {
  $drawing->setBarcode($code);
  $drawing->draw();
}

// 生成PNG格式的图片
header('Content-Type: image/png');


$drawing->finish(BCGDrawing::IMG_FORMAT_PNG);
?>

3.实际应用

对于上面有个大概的了解后,下面我们可以重新整合下代码,更加方便的使用它。

首先新建buildcode.php文件中,根据test.php文件进行改写,从请求的文件中获取数据:

1).条形码的编码格式

2).条形码需要的数据内容

View Code
<?php
// Including all required classes
require_once('class/BCGFontFile.php');
require_once('class/BCGColor.php');
require_once('class/BCGDrawing.php');
$codebar = $_REQUEST['codebar']; //条形码将要数据的内容
// Including the barcode technology
require_once('class/'.$codebar.'.barcode.php');
// Loading Font
$font = new BCGFontFile('./class/font/Arial.ttf', 12);
// The arguments are R, G, B for color.
$color_black = new BCGColor(0, 0, 0);
$color_white = new BCGColor(255, 255, 255);
$drawException = null;
try {
  $code = new $codebar();//实例化对应的编码格式
  $code->setScale(2); // Resolution
  $code->setThickness(23); // Thickness
  $code->setForegroundColor($color_black); // Color of bars
  $code->setBackgroundColor($color_white); // Color of spaces
  $code->setFont($font); // Font (or 0)
  $text = $_REQUEST['text']; //条形码将要数据的内容
  $code->parse($text);
} catch(Exception $exception) {
  $drawException = $exception;
}
/* Here is the list of the arguments
 - Filename (empty : display on screen)
 - Background color */
$drawing = new BCGDrawing('', $color_white);
if($drawException) {
  $drawing->drawException($drawException);
} else {
  $drawing->setBarcode($code);
  $drawing->draw();
}
// Header that says it is an image (remove it if you save the barcode to a file)
header('Content-Type: image/png');
// Draw (or save) the image into PNG format.
$drawing->finish(BCGDrawing::IMG_FORMAT_PNG);
?>

然后新建test.html文件,向buildcode.php请求数据

<!DOCTYPE html>
<html>
<head>
<title>Test with embedded image</title>
</head>
<body>
 <img src="buildcode.php?codebar=BCGcode39&text=abc123"/>
</body>
</html>

最后进行访问,浏览器直接生成png格式的条形码

其中codebar支持的编码格式可以由用户请求所得:

/*'BCGcodabar','BCGcode11','BCGcode39','BCGcode39extended','BCGcode93',
'BCGcode128','BCGean8','BCGean13','BCGisbn','BCGi25','BCGs25','BCGmsi',
'BCGupca','BCGupce','BCGupcext2','BCGupcext5','BCGpostnet','BCGothercode'*/

剩下的就是验证了

4.验证

我们如何验证条形码是否有效,即能否读出条形码中的内容。

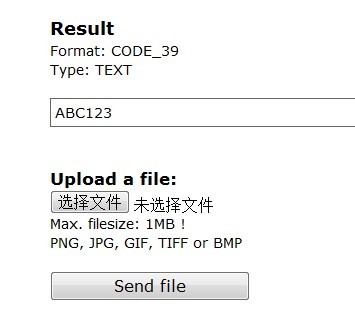

先将图片保存下来,然后访问官网提供的验证功能,将图片上传就Ok了!

今天和大家一起揭秘了php如何生成条形码的,希望大家可以对条形码的形成有个大概的了解,对今后的学习有所帮助。
