import random
import operator

actions = ['u','r','d','l']
qline = {'u':1.2, 'r':-2.1, 'd':-24.5, 'l':27}
epsilon = 0.3 # 以0.3的概率进行随机选择

def choose_action(epsilon):
  action = None
   if random.uniform(0,1.0) <= epsilon: # 以某一概率
    action = random.choice(actions)# 实现对动作的随机选择
   else:
     action = max(qline.items(), key=operator.itemgetter(1))[0] # 否则选择具有最大 Q 值的动作
   return action

range(100):

  res += choose_action(epsilon)

print(res)

res = ''

for i in range(100):

   res += choose_action(epsilon)

print(res)
 ldllrrllllrlldlldllllllllllddulldlllllldllllludlldllllluudllllllulllllllllllullullllllllldlulllllrlr

from Maze import Maze
%matplotlib inline
%confer InlineBackend.figure_format = 'retina'

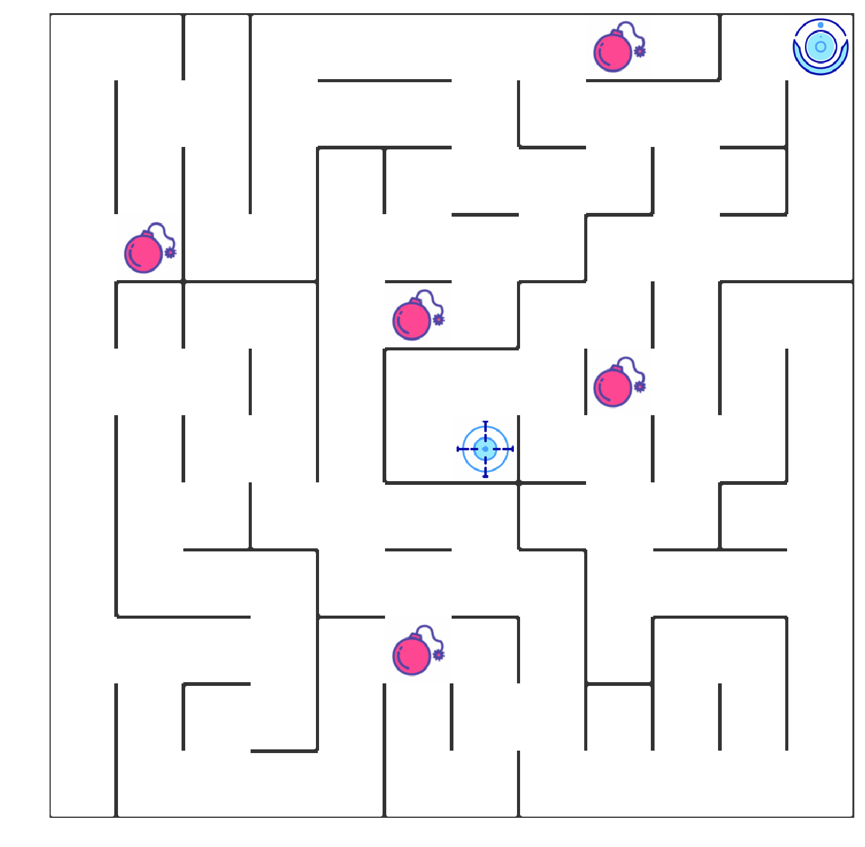

  ## to-do: 创建迷宫并展示
g=Maze(maze_size=(6,8), trap_number=1)
g
Maze of size (12, 12
)

rewards = []
 ## 循环、随机移动机器人10次，记录下奖励
for i in range(10):
  res = g.move_robot(random. Choice(actions))
   rewards.append(res)
 ## 输出机器人最后的位置
print(g.sense_robot())

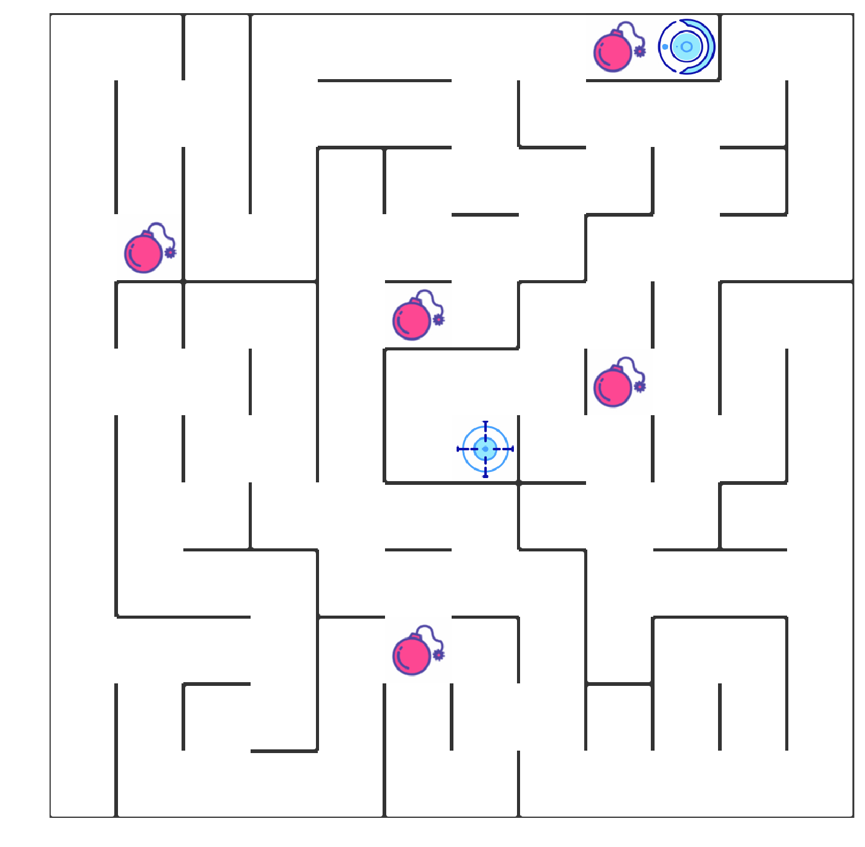

## 打印迷宫，观察机器人位置
g

(0,9)

import random
import operator

 class Robot(object):

  def __init__(self, maze, alpha=0.5, gamma=0.9, epsilon0=0.5):

     self. Maze = maze
     self.valid_actions = self.maze.valid_actions

     self.state = None
     self.action = None

     # Set Parameters of the Learning Robot
     self.alpha = alpha
     self.gamma = gamma

     self.epsilon0 = epsilon0
     self. Epsilon = epsilon0
     self.t = 0

     self.Qtable = {}
     self. Reset()

  def. reset(self):
     """
         Reset the robot
     """
     self.state = self.sense_state()
     self.create_Qtable_line(self.state)

  def. set status(self, learning=False, testing=False):
     """
     Determine whether the robot is learning its q table, or
     executing the testing procedure.
     """
     self. Learning = learning
     self.testing = testing

   def. update_parameter(self):
     """
     Some of the paramters of the q learning robot can be altered,
     update these parameters when necessary.
     """
     if self.testing:
       # TODO 1. No random choice when testing
      self. Epsilon = 0
     else:
       # TODO 2. Update parameters when learning
       self. Epsilon *= 0.95

    return self. Epsilon

   def. sense_state(self):
     """
     Get the current state of the robot. In this
     """

      # TODO 3. Return robot's current state
          return self.maze.sense_robot()

   def. create_Qtable_line(self, state):
    """
     Create the qtable with the current state
    """
     # TODO 4. Create qtable with current state
     # Our qtable should be a two level dict,
     # Qtable[state] ={'u':xx, 'd':xx, ...}
     # If Qtable[state] already exits, then do
     # not change it.
     self.Qtable.setdefault(state, {a: 0.0 for a in self.valid_actions})
   def. choose_action(self):
     """
    Return an action according to given rules
     """
     def. is_random_exploration():

       # TODO 5. Return whether do random choice
       # hint: generate a random number, and compare
       # it with epsilon
      return random.uniform(0, 1.0) <= self. Epsilon

     if self. Learning:
       if is_random_exploration():
        # TODO 6. Return random choose aciton
         return random. Choice(self.valid_actions)
       else:
         # TODO 7. Return action with highest q value
         return max(self.Qtable[self.state].items(), key=operator.itemgetter(1))[0]
     elif self.testing:
       # TODO 7. choose action with highest q value
       return max(self.Qtable[self.state].items(), key=operator.itemgetter(1))[0]
     else:
       # TODO 6. Return random choose aciton
      return random. Choice(self.valid_actions)

  def. update_Qtable(self, r, action, next_state):
     """
     Update the qtable according to the given rule.
     """
     if self. Learning:
       # TODO 8. When learning, update the q table according
       # to the given rules
      self.Qtable[self.state][action] = (1 - self.alpha) * self.Qtable[self.state][action] + self.alpha * (
             r + self.gamma * max(self.Qtable[next_state].values()))

  def. update(self):
       """
     Describle the procedure what to do when update the robot.
    Called every time in every epoch in training or testing.
     Return current action and reward.
     """
     self.state = self.sense_state() # Get the current state
     self.create_Qtable_line(self.state) # For the state, create q table line

    action = self.choose_action() # choose action for this state
     reward = self.maze.move_robot(action) # move robot for given action

    next_state = self.sense_state() # get next state
     self.create_Qtable_line(next_state) # create q table line for next state

     if self. Learning and not self.testing:
       self.update_Qtable(reward, action, next_state) # update q table
      self.update_parameter() # update parameters

    return action, reward
 # from Robot import Robot
 # g=Maze(maze_size=(6,12), trap_number=2)
 g=Maze("test_world\maze_01.txt")
 robot = Robot(g) # 记得将 maze 变量修改为你创建迷宫的变量名
 robot.set_status(learning=True,testing=False)
 print(robot.update())

 g
（'d', -0.1）
Maze of size (12, 12)

from Runner import Runner

g = Maze(maze_size=maze_size,trap_number=trap_number)
r = Robot(g,alpha=alpha, epsilon0=epsilon0, gamma=gamma)
r.set_status(learning=True)

 runner = Runner(r, g)
runner.run_training(epoch, display_direction=True)
 #runner.generate_movie(filename = "final1.mp4") # 你可以注释该行代码，加快运行速度，不过你就无法观察到视频了。
 g

 runner.plot_results()
