Python Pandas 箱线图的实现

yipeiwu_com5年前Python基础

各国家用户消费分布

import numpy as np

import pandas as pd

import matplotlib.pyplot as plt



data = {

  'China': [1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2500],

  'America': [1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100],

  'Britain': [1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000],

  "Russia": [800, 1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900]

}

df = pd.DataFrame(data)



# df.plot.box(title="Consumer spending in each country", vert=False)

df.plot.box(title="Consumer spending in each country")



plt.grid(linestyle="--", alpha=0.3)

plt.show()



import numpy as np

import pandas as pd

import matplotlib.pyplot as plt



data = {

  'China': [1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2500],

  'America': [1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100],

  'Britain': [1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000],

  "Russia": [800, 1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900]

}

df = pd.DataFrame(data)

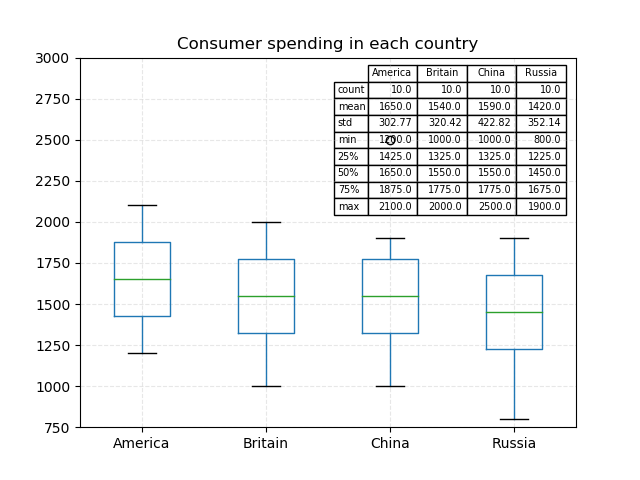

from pandas.plotting import table



fig, ax = plt.subplots(1, 1)



table(ax, np.round(df.describe(), 2),

   loc='upper right',

   colWidths=[0.1, 0.1, 0.1, 0.1]

   )



# df.plot.box(title="Consumer spending in each country", vert=False)

df.plot.box(title="Consumer spending in each country",

      ax=ax,

      ylim=(750, 3000))



plt.grid(linestyle="--", alpha=0.3)

plt.show()

import numpy as np

import pandas as pd

import matplotlib.pyplot as plt



data = {"gender": [1, 0, 1, 0, 1, 0, 1, 0, 1, 0],

    'China': [1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2500],

    'America': [1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100]

    }

df = pd.DataFrame(data)

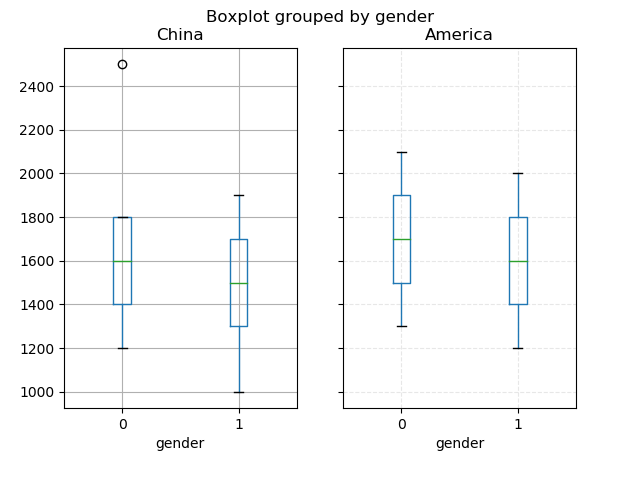

# df.boxplot(column=["China", "America"], by="gender",vert=False)

df.boxplot(column=["China", "America"], by="gender")



plt.grid(linestyle="--", alpha=0.3)

plt.show()



以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持【听图阁-专注于Python设计】。
